MUFFLER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

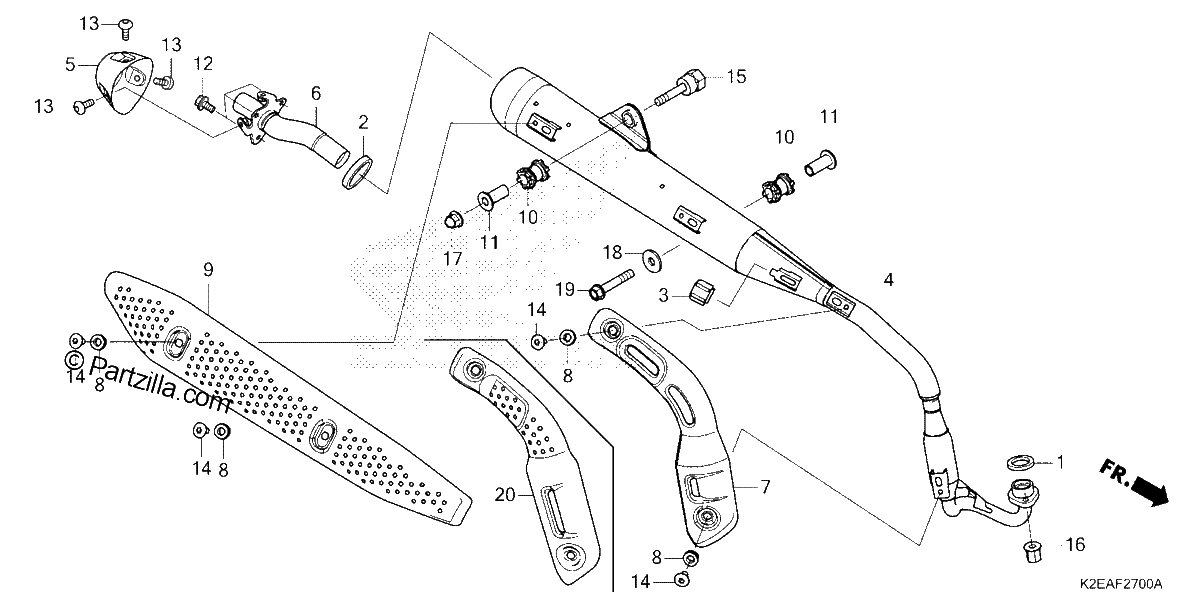

Diagrama de MUFFLER

Repuestos

#001
18291-GE2-920
GASKET, EX. PIPE
$7.85¢3 925
1
#002
18291-KR1-680
GASKET A, EX PIPE
$10.16¢5 081
1
#003
18293-KYY-900
RUBBER, PROTECTOR GASKET
$3.34¢1 669
1
#004
18300-K2E-A30
MUFFLER, EX.
$435.65¢217 825
1
#005
18306-K2E-A00
CAP, TAIL
$200.65¢100 325
1
#006
18317-K2E-A00
ARRESTER, SPARK
$286.54¢143 269
1
#008
18345-MBT-610
RUBBER, PROTECTOR MOUNTING
$2.81¢1 406
1
#009
18356-K2E-T00
COVER, MUFFLER
$225.19¢112 594
1
#010
18421-K26-B00
RUBBER, MUFFLER MOUNTING
$0.76¢381
1
#011
18422-K26-900
COLLAR, MUFFLER MOUNTING
$5.29¢2 644
1
#012
90101-KCE-000
BOLT, FLANGE (6X10)
$2.09¢1 044
1
#012
96001-06010-07
BOLT, FLANGE (6X10)
$2.09¢1 044
1
#013
90106-GBB-710
SCREW, PAN (6X10)
$1.63¢813
1
#014
90113-GFP-B00
SCREW, PAN (6X12)
$4.34¢2 169
1
#015
90165-K2E-T00
BOLT, ADAPTER (8MM)
$9.07¢4 538
1
#016
90301-KWB-600
NUT, FLANGE (8MM)
$1.13¢563
1
#017
90443-KTM-970
NUT, CAP (8MM)
$0.99¢494
1
#018
94103-08700
WASHER, PLAIN (8MM)
$1.21¢606
1
#019
95701-08045-07
BOLT, FLANGE (8X45)
$2.79¢1 394
1
#020
18325-K2E-T30
COVER, EX PIPE
$49.01¢24 506
1
