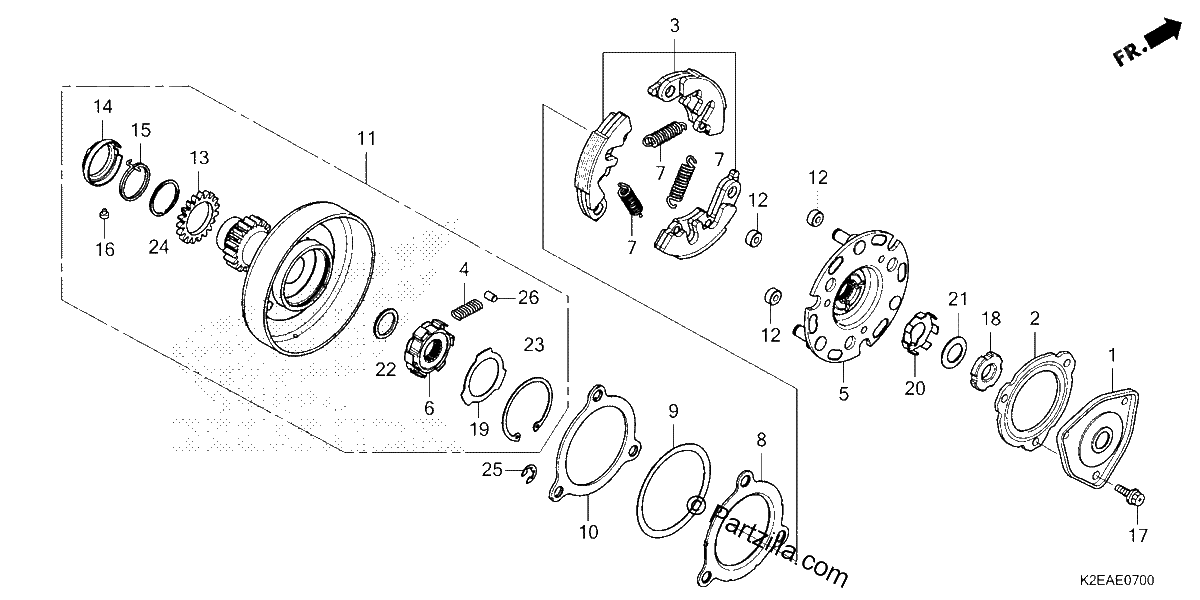

ONE WAY CLUTCH

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

Repuestos

#001

15431-KPH-900

COVER, OIL FILTER

$2.71¢1 357

#002

15439-KWW-741

GASKET, OIL FILTER COVER (NICHIAS)

$1.45¢724

#003

22535-K3G-C10

WEIGHT SET, PRIMARY CLUTCH

$34.42¢17 210

#004

22606-GN5-910

SPRING, ONE-WAY RETAINER

$3.68¢1 840

#005

22610-K1M-T31

PLATE, PRIMARY DRIVE

$10.71¢5 353

#006

22630-KWB-601

INNER, ONE-WAY CLUTCH (F C C.)

$9.07¢4 537

#007

22641-KPH-900

SPRING, PRIMARY CLUTCH

$1.38¢690

#008

22642-K1M-T31

WASHER, CLUTCH SIDE (F C C.)

$1.79¢897

#009

22643-KWW-741

SPRING, SIDE FRICTION (F.C.C.)

$2.98¢1 489

#010

22644-K1M-T31

PLATE, CLUTCH SIDE (F C C.)

$2.59¢1 294

#011

22660-K3G-C11

CLUTCH OUTER Assembly., PRIMARY

$57.95¢28 974

#012

22804-GB2-000

RUBBER, CLUTCH DAMPER

$4.20¢2 099

#012

22804-KPH-880

RUBBER, CLUTCH DAMPER

$0.68¢339

#013

23122-K1M-T00

SUB-GEAR (19T)

$3.09¢1 547

#014

23123-KPH-900

RETAINER, SPRING (F.C.C.)

$8.61¢4 307

#015

23124-KPH-900

SPRING, SUB-GEAR

$1.18¢592

#016

23125-GN5-910

PIN (F.C.C.)

$4.42¢2 208

#017

90083-KFL-850

BOLT, SPECIAL FLANGE (5X8)

$1.17¢586

#018

90231-087-010

NUT, LOCK (14MM)

$4.24¢2 122

#019

90401-GB2-000

WASHER (30X45X0.8)

$6.24¢3 122

#020

90431-GN5-910

WASHER, LOCK

$4.75¢2 375

#021

90432-086-000

WASHER B, LOCK

$4.94¢2 472

#022

90433-KWB-601

WASHER (17X23X1.5) (F.C.C.)

$1.33¢667

#023

90455-GB2-000

CIRCLIP (INNER) (45MM)

$7.61¢3 807

#024

90603-KPH-900

SET-RING (25MM)

$2.22¢1 110

#025

90605-166-720

CIRCLIP (7MM)

$2.13¢1 064

#026

91101-GB2-000

ROLLER (5X8)

$4.57¢2 283
