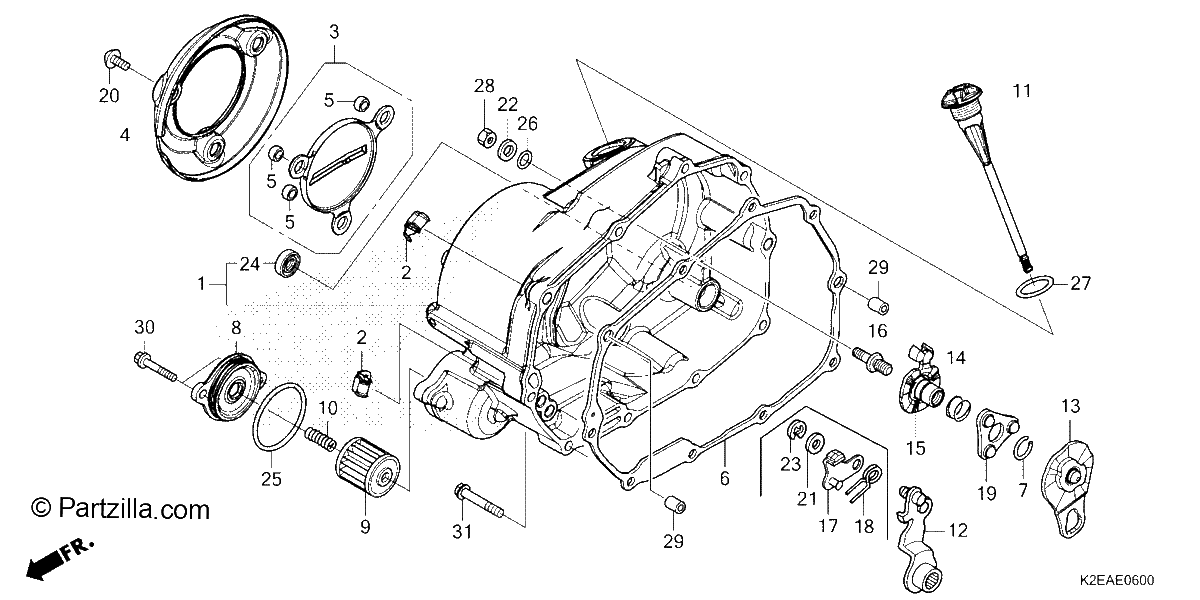

RIGHT CRANKCASE COVER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
COVER, Right CRANKCASE
$82.44¢41 222
#002
CLAMP A, OIL TEMP SENSOR CORD
$1.00¢500
#003
PROTECTOR, Right COVER (INNER)
$12.21¢6 106
#004
PROTECTOR, Right COVER
$44.34¢22 172
#005
COLLAR (10MM)
$1.36¢678
#006
GASKET, Right CRANKCASE COVER (NICHIAS)
$5.95¢2 973
#007
CLIP, PISTON PIN (13MM)
$0.91¢454
#008
COVER, OIL FILTER
$33.38¢16 692
#009
ELEMENT, OIL FILTER
$9.11¢4 554
#010
SPRING, OIL FILTER
$3.10¢1 553
#011
DIPSTICK, OIL
$5.66¢2 829
#012
LEVER, CLUTCH
$43.58¢21 792
#013
PLATE, CLUTCH LIFTER CAM
$7.34¢3 669
#014
SPRING, CAM PLATE SIDE
$0.70¢351
#014
SPRING, CAM PLATE SIDE
$0.70¢351
#015
PLATE, CLUTCH LIFTER
$11.11¢5 555
#016
BOLT, CLUTCH ADJUSTING
$1.28¢638
#019
RETAINER, BALL
$5.19¢2 593
#020
SCREW, PAN (6X14)
$1.47¢736
#022
WASHER (8MM)
$1.28¢638
#024
OIL SEAL (13.8X24X5)
$1.00¢500
#025
O-RING (39.8X2.2) (ARAI)
$5.98¢2 990
#026
O-RING (8MM)
$2.86¢1 432
#027
O-RING (18X3)
$0.98¢489
#028
NUT, HEX. (8MM)
$1.26¢633
#029
PIN, DOWEL (8X14)
$2.66¢1 328
#030
BOLT, FLANGE (6X18)
$2.04¢1 018
#031
BOLT, FLANGE (6X35)
$1.66¢828
