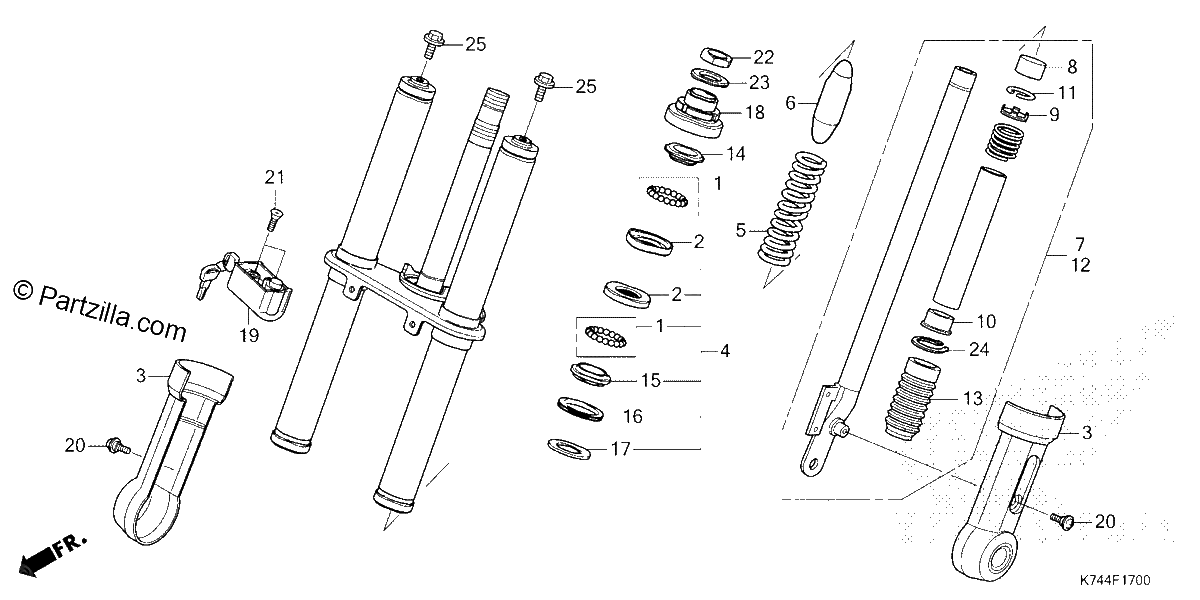

FRONT FORK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
BALL ASSY., STEEL (#8X18)
$0.60¢300
#002
RACE, STEERING TOP BALL
$7.49¢3 744
#003
COVER, FR. FORK
$1.85¢925
#004
FORK SUB-ASSY., FR.
$76.96¢38 481
#005
SPRING, FR. FORK
$3.55¢1 775
#006
RUBBER, STOPPER
$3.65¢1 825
#007
PIPE Assembly., Right SLIDE
$60.81¢30 406
#008
PISTON, SLIDE PIPE
$3.65¢1 825
#009
STOPPER, REBOUND
$0.61¢306
#010
BUSH, SLIDE PIPE
$8.99¢4 494
#011
RING, STOPPER
$0.33¢163
#012
PIPE Assembly., L SLIDE
$60.81¢30 406
#013
BOOT, FR. FORK
$2.64¢1 319
#014
RACE, STEERING TOP CONE
$35.65¢17 825
#015
RACE, STEERING CONE (LOWER)
$22.97¢11 487
#015
RACE, STEERING CONE (LOWER)
$22.97¢11 487
#016
DUST SEAL, STEERING HEAD
$3.65¢1 825
#017
WASHER, STEERING HEAD DUST SEAL
$0.45¢225
#018
THREAD, STEERING HEAD TOP
$4.16¢2 081
#019
LOCK, HANDLEBAR
$9.88¢4 938
#020
SCREW, HINGE PATCH
$3.65¢1 825
#021
SCREW, U-LOCK FLAT (6X12)
$0.31¢156
#022
NUT, STEERING STEM
$11.34¢5 669
#023
WASHER, STEERING STEM
$0.41¢206
#024
CIRCLIP (INNER) (38MM)
$0.83¢413
#025
BOLT, FLANGE (8X18)
$2.07¢1 037
