DRIVEN FACE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

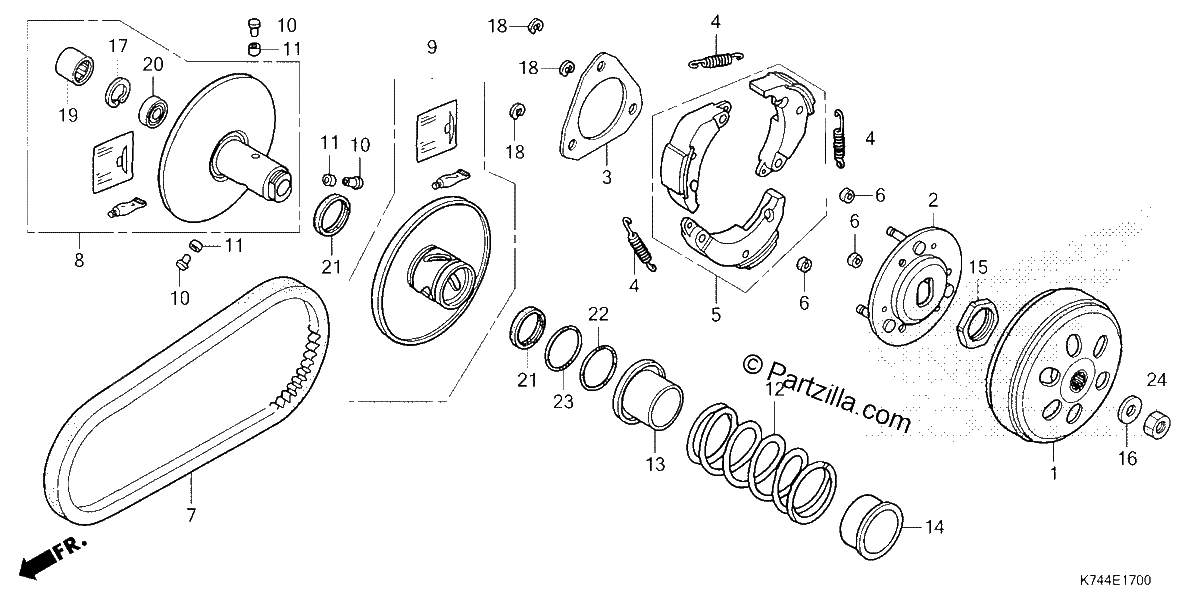

Diagrama de DRIVEN FACE

Repuestos

#001
22100-KWP-D01
CLUTCH OUTER (F.C.C.)
$25.60¢12 800
1
#002
22350-KWP-900
PLATE, DRIVE
$7.88¢3 939
1
#002
22350-KWP-D01
PLATE, DRIVE
$8.02¢4 008
1
#003
22361-KWP-D00
PLATE, CLUTCH SIDE
$1.30¢650
1
#004
22401-KGG-910
SPRING, CLUTCH
$6.92¢3 461
1
#005
22535-KWP-D00
WEIGHT SET, CLUTCH
$38.21¢19 107
1
#006
22804-148-000
RUBBER, CLUTCH DAMPER
$3.36¢1 679
1
#007
23100-KWP-D01
BELT, DRIVE (BANDO)
$15.67¢7 837
1
#008
23205-KWP-H00
FACE SET, DRIVEN (F.C.C.)
$28.38¢14 191
1
#009
23224-KWP-D01
FACE SET, MOVABLE DRIVEN (F.C.C.)
$20.64¢10 321
1
#010
23225-KSY-900
PIN, ROLLER GUIDE
$3.36¢1 679
1
#011
23226-GFM-900
ROLLER, GUIDE
$2.28¢1 138
1
#011
23226-KVB-900
ROLLER, GUIDE
$2.28¢1 138
1
#012
23233-KWP-D00
SPRING, DRIVEN FACE
$3.36¢1 679
1
#013
23237-KWP-D00
COLLAR, SEAL
$2.54¢1 271
1
#014
23238-KWP-900
COLLAR, SPRING
$1.56¢782
1
#015
90202-KPL-900
NUT, SPECIAL (28MM)
$0.77¢385
1
#016
90441-GY6-940
WASHER (12.2X29X2.5)
$3.32¢1 662
1
#017
90601-KWP-900
CIRCLIP (INNER) (28MM)
$0.38¢190
1
#018
90605-166-720
CIRCLIP (7MM)
$2.13¢1 064
1
#019
91109-GGC-G01
BEARING, NEEDLE (20X29X18) (F.C.C.)
$4.13¢2 064
1
#019
91109-KVY-902
BEARING, NEEDLE (20X29X18) (SCHAEFFLER)
$7.42¢3 709
1
#020
91004-GGC-G01
BEARING, RADIAL BALL (6902U) (F.C.C.)
$8.34¢4 169
1
#020
91009-KVY-961
BEARING, RADIAL BALL (6902U) (NSK)
$4.88¢2 438
1
#021
91211-K24-901
SEAL, DRIVEN FACE (34X39X3)
$1.60¢799
1
#022
91351-642-000
O-RING, PINION CAP
$4.70¢2 352
1
#023
91351-GR1-000
O-RING (38.5X2)
$3.36¢1 679
1
#024
94030-12200
NUT, HEX. (12MM)
$2.06¢1 029
1
