LEFT CRANKCASE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

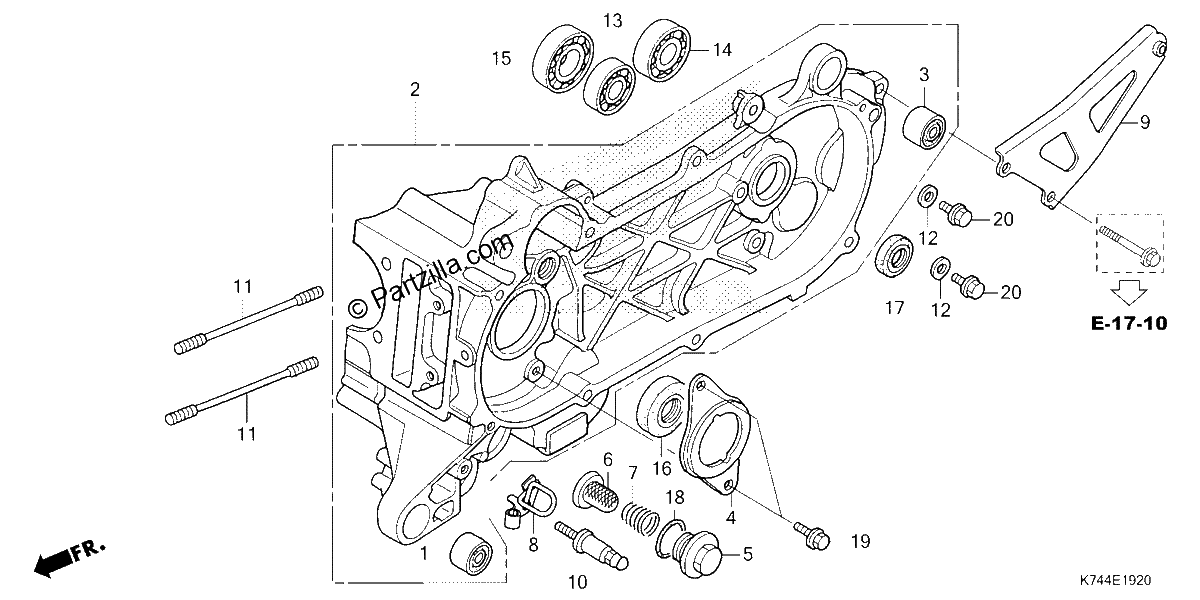

Diagrama de LEFT CRANKCASE

Repuestos

#001
11103-K24-G00
BUSH, ENGINE HANGER RUBBER
$1.29¢644
1
#002
11200-KWP-H00
CRANKCASE, L.
$173.81¢86 906
1
#003
11203-K24-G00
BUSH, RR. CUSHION RUBBER (LOWER)
$1.00¢500
1
#004
11204-KWP-D00
PLATE, OIL SEAL STOPPER
$0.51¢256
1
#005
12361-KPL-900
CAP, TAPPET ADJUSTING HOLE
$6.61¢3 306
1
#006
15421-KPL-900
SCREEN, OIL FILTER
$2.05¢1 025
1
#007
15426-KCW-880
SPRING, OIL FILTER SCREEN
$3.65¢1 825
1
#008
16236-K74-A00
CLAMP, OVERFLOW
$0.68¢338
1
#009
80109-K74-N00
STAY, RR. FENDER (INNER)
$2.50¢1 250
1
#010
90008-KPL-900
BOLT, MAIN STAND SPRING
$1.23¢613
1
#011
90032-KWP-D00
BOLT B, STUD (7X198)
$0.96¢481
1
#012
90474-KWP-F00
WASHER, SEALING (8MM)
$0.13¢63
1
#013
91006-KWP-G31
BEARING, RADIAL BALL (6201) (NBC)
$3.36¢1 681
1
#013
91006-K0P-D61
BEARING, RADIAL BALL (6201) (FAG)
No Disponible
1
#014
91007-KWP-G31
BEARING, RADIAL BALL (6202) (NBC)
$3.77¢1 888
1
#014
91007-K0P-D61
BEARING, RADIAL BALL (6202) (FAG)
No Disponible
1
#015
91104-KCW-880
BEARING, RADIAL BALL (6204)
$5.11¢2 556
1
#016
91202-KWP-D01
OIL SEAL (20.8X53X6) (ARS)
$2.31¢1 156
1
#017
91203-KWP-D01
OIL SEAL (20X32X6.2) (ARS)
$1.31¢656
1
#018
91302-001-020
O-RING (30.8MM)
$4.54¢2 269
1
#019
95701-06016-00
BOLT, FLANGE (6X16)
$2.09¢1 044
1
#020
95701-08012-00
BOLT, FLANGE (8X12)
$1.45¢725
1
