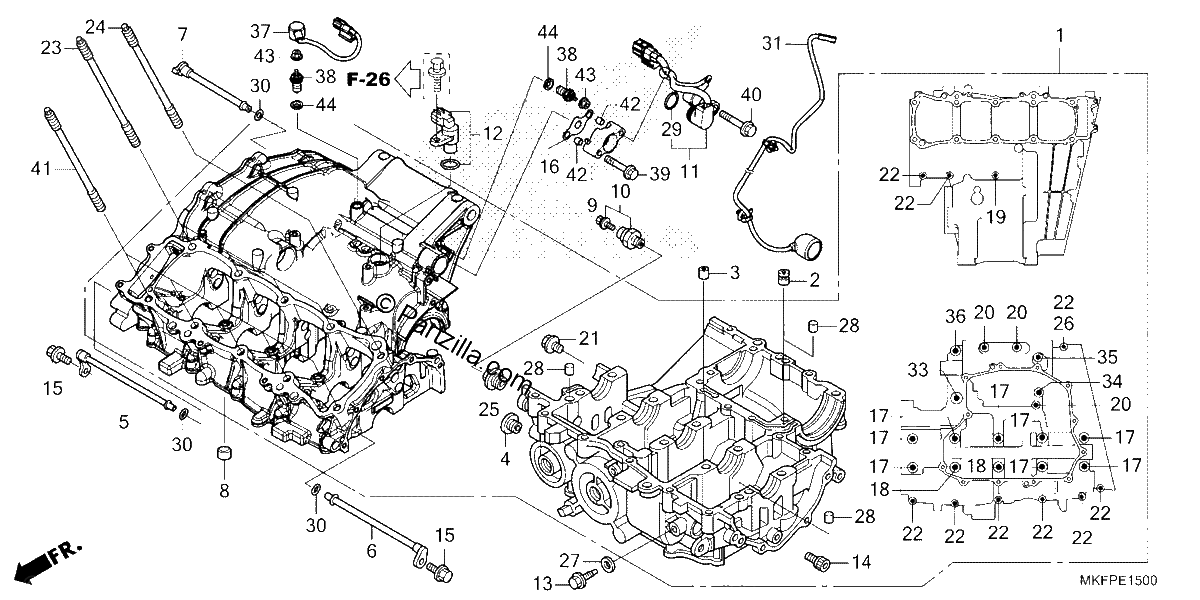

CRANKCASE
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
CRANKCASE SET
$2047.33¢1 023 667
#002
ORIFICE
$7.19¢3 594
#003
ORIFICE (1.1MM)
$4.45¢2 225
#004
BOLT, SEALING (20MM)
$10.80¢5 399
#005
PIPE, R. OIL JET
$81.95¢40 975
#006
PIPE, L. OIL JET
$81.95¢40 975
#007
PIPE, TRANSMISSION OIL JET
$56.61¢28 307
#008
ORIFICE (1MM)
$8.90¢4 451
#009
HOLDER, ANGLE SENSOR
$38.16¢19 079
#010
SWITCH Assembly., OIL PRESSURE (DENSO)
$45.33¢22 667
#011
SENSOR ASSY., ANGLE
$241.06¢120 532
#012
SENSOR ASSY., SPEED
$88.04¢44 022
#013
BOLT, SPECIAL (6X18)
$2.64¢1 322
#014
BOLT, SOCKET (8X12)
$2.24¢1 121
#015
BOLT, KNOCK (6MM)
$3.36¢1 679
#016
GASKET, ANGLE SENSOR HOLDER
$8.35¢4 174
#017
BOLT, FLANGE (9X105)
$5.49¢2 743
#018
BOLT, FLANGE (9X126)
$5.86¢2 932
#019
BOLT, FLANGE (7X60)
$2.74¢1 368
#020
BOLT, FLANGE (7X50)
$2.64¢1 322
#021
BOLT, SEALING (8MM)
$7.99¢3 996
#022
BOLT, FLANGE (7X40)
$2.39¢1 196
#023
BOLT, STUD (9X145.5)
$14.24¢7 119
#024
BOLT, STUD (9X134)
$13.68¢6 842
#025
BOLT, SEALING (22MM)
$11.26¢5 629
#026
WASHER, SEALING (7MM)
$3.15¢1 576
#027
WASHER, SEALING (6.5MM)
$3.36¢1 679
#028
PIN, DOWEL (10X16)
$4.80¢2 398
#029
O-RING (16.5X2.5)
$5.69¢2 846
#030
O-RING (4.8X1.9)
$3.09¢1 547
#030
O-RING (4.8X1.9) (NOK)
$3.09¢1 547
#031
SUB-HARNESS, ENGINE
$13.95¢6 975
#033
BOLT, FLANGE (8X50)
$2.69¢1 346
#034
BOLT, FLANGE (8X55)
$2.18¢1 092
#035
BOLT, FLANGE (8X80)
$2.04¢1 018
#036
BOLT, FLANGE (10X60)
$2.33¢1 167
#037
SUB-HARNESS, SPINDLE
$9.52¢4 761
#038
SWITCH ASSY., NEUTRAL
$25.62¢12 811
#039
BOLT, FLANGE (6X35) (NSHF)
$2.28¢1 138
#040
BOLT, KNOCK (6MM)
$7.54¢3 772
#041
BOLT, STUD (9X134)
$13.68¢6 842
#042
PIN, DOWEL (8X7)
$2.64¢1 322
#043
NUT, FLANGE (4MM)
$1.45¢724
#044
WASHER, NEUTRAL
$2.28¢1 138
