CYLINDER HEAD

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

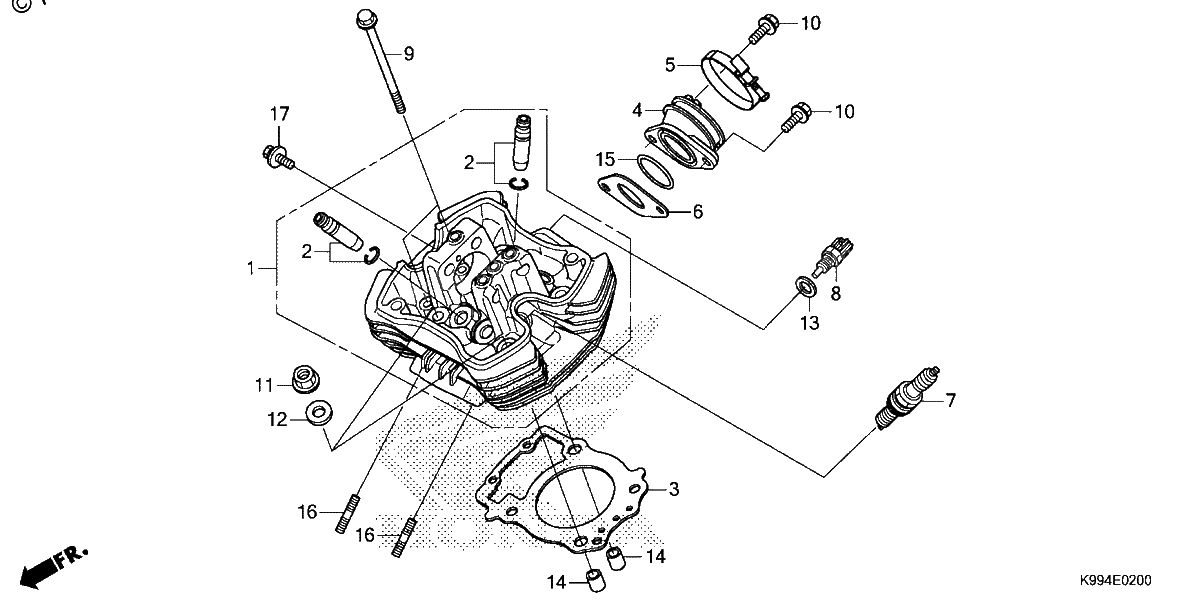

Diagrama de CYLINDER HEAD

Repuestos

#001
12200-K99-A00
CYLINDER HEAD
$94.10¢47 050
1
#002
12204-K99-P00
GUIDE ASSY., VALVE (OVER SIZE)
$86.31¢43 156
1
#003
12251-K31-901
GASKET, CYLINDER HEAD
$36.41¢18 206
1
#004
16210-K31-900
INSULATOR, THROTTLE BODY
$24.45¢12 225
1
#005
16217-K99-A00
BAND, INSULATOR
$7.70¢3 850
1
#006
16291-K31-901
GASKET, INSULATOR
$6.99¢3 494
1
#007
31908-K31-901
SPARK PLUG (LMAR7H-9DS) (NGK)
$48.63¢24 313
1
#008
37750-KPH-701
SENSOR Assembly., THERMOSTAT OIL (PANASONIC)
$58.90¢29 450
1
#009
90001-K31-900
BOLT, FLANGE (6X120)
$4.45¢2 225
1
#010
90004-GHB-650
BOLT, FLANGE (6X20) (NSHF)
$2.52¢1 263
1
#011
90204-KPE-870
NUT, FLANGE (10MM)
$7.75¢3 875
1
#012
90401-K31-900
WASHER (10MM)
$3.11¢1 556
1
#013
90443-KSS-B30
WASHER, SEALING (10MM)
$2.09¢1 044
1
#014
90701-K31-900
PIN, DOWEL (12X16)
$4.65¢2 325
1
#015
91305-K31-900
O-RING (38X2.4)
$98.04¢49 019
1
#016
92900-08022-3E
BOLT, STUD (8X22)
$2.97¢1 487
1
#017
93404-06016-00
BOLT-WASHER (6X16)
$2.09¢1 044
1
