FRONT BRAKE MASTER CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

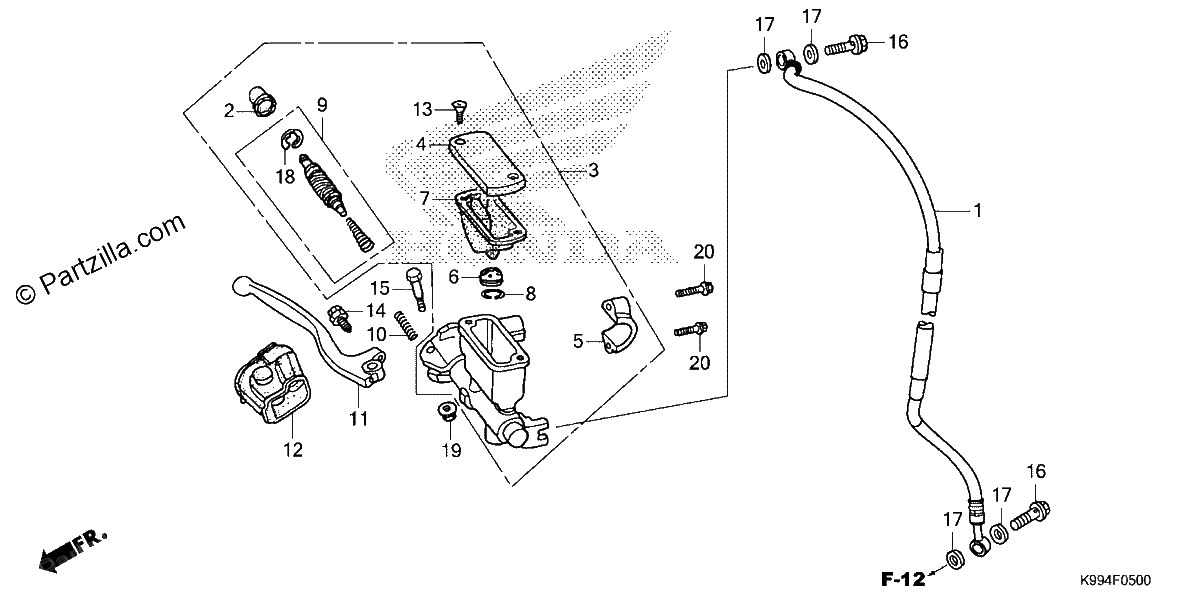

Diagrama de FRONT BRAKE MASTER CYLINDER

Repuestos

#001
45125-K99-A01
HOSE, FR. BRAKE
$627.73¢313 863
1
#002
45504-KN5-006
BOOT
$14.57¢7 288
1
#003
45510-KPS-901
MASTER CYLINDER SUB-ASSY., FR.BRAKE
$151.36¢75 681
1
#003
45510-KPT-305
MASTER CYLINDER SET, FR. (COO)
$151.36¢75 681
1
#004
45513-KCE-671
CAP, MASTER CYLINDER
$26.71¢13 356
1
#005
45517-GW0-751
HOLDER, MASTER CYLINDER
$14.40¢7 200
1
#006
45518-KA3-731
SEPARATOR
$14.15¢7 075
1
#007
45520-KA3-731
DIAPHRAGM
$15.75¢7 875
1
#008
45523-KA3-731
RING
$3.65¢1 825
1
#009
45530-KPS-901
MASTER CYLINDER SET
$143.91¢71 956
1
#010
53174-KN5-006
SPRING, BRAKE LEVER
$3.65¢1 825
1
#011
53175-KCE-670
LEVER, R. HANDLEBAR
$21.36¢10 681
1
#012
53176-ML3-791
COVER, R. HANDLE LEVER
$8.22¢4 113
1
#013
90104-KRM-R80
SCREW, FLAT (4X12)
$1.16¢581
1
#013
93600-04012-0G
SCREW, FLAT (4X12)
$1.16¢581
1
#014
90111-ML3-791
BOLT SET, ADJUSTER
$8.01¢4 006
1
#015
90114-166-006
BOLT, HANDLE LEVER PIVOT
$7.88¢3 938
1
#016
90145-MS9-612
BOLT, OIL (10X22)
$8.89¢4 444
1
#017
90545-300-000
WASHER, OIL BOLT
$4.85¢2 425
1
#018
90651-MA5-671
CIRCLIP
$3.10¢1 550
1
#019
94050-06000
NUT, FLANGE (6MM)
$0.80¢400
1
#020
96001-06022-00
BOLT, FLANGE (6X22)
$1.60¢800
1
