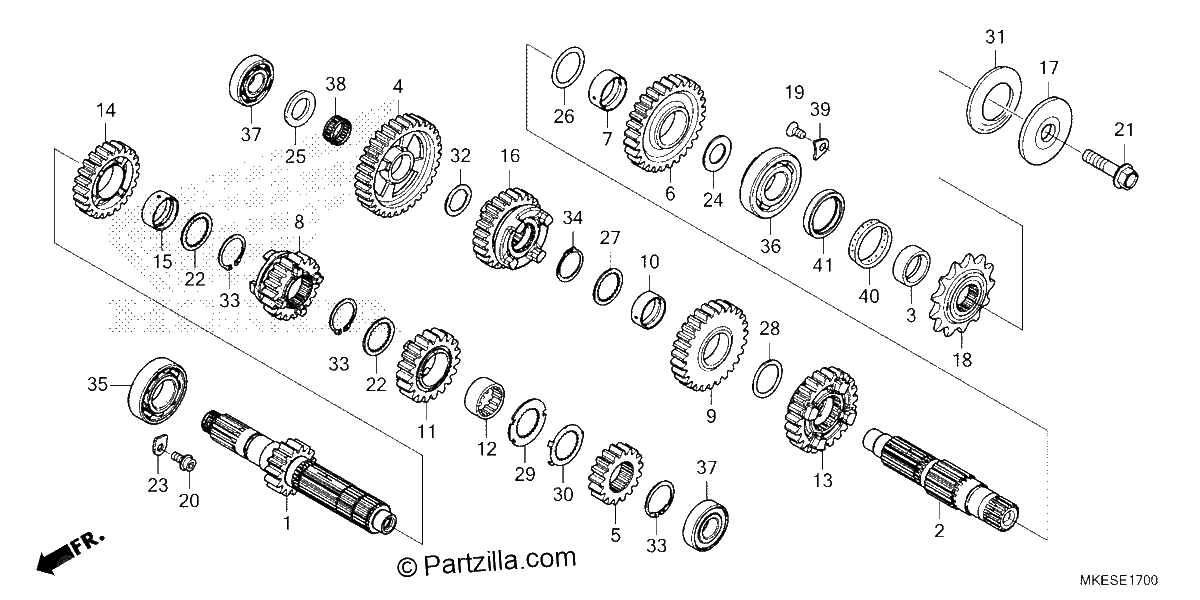

TRANSMISSION
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
SHAFT, MAIN (15T)
$143.13¢71 565
#002
COUNTERSHAFT
$182.98¢91 488
#003
COLLAR, COUNTERSHAFT
$15.41¢7 705
#004
GEAR, COUNTERSHAFT FIRST (32T)
$100.07¢50 037
#005
GEAR, MAINSHAFT SECOND (17T)
$44.91¢22 454
#006
GEAR, COUNTERSHAFT SECOND (29T)
$83.18¢41 590
#007
COLLAR (27X30X13.2)
$19.72¢9 861
#008
GEAR, MAINSHAFT THIRD (19T)
$86.96¢43 482
#009
GEAR, COUNTERSHAFT THIRD (27T)
$83.18¢41 590
#010
COLLAR (28X31X11)
$15.55¢7 774
#011
GEAR, MAINSHAFT FOURTH (19T)
$77.11¢38 554
#012
COLLAR, SPLINE (26X12.3)
$15.01¢7 504
#013
GEAR, COUNTERSHAFT FOURTH (23T)
$86.96¢43 482
#014
GEAR, MAINSHAFT FIFTH (23T)
$90.36¢45 178
#015
COLLAR (26X29X12.3)
$16.61¢8 303
#016
GEAR, COUNTERSHAFT FIFTH (24T)
$91.51¢45 753
#017
COLLAR, DRIVE SPROCKET
$15.69¢7 843
#018
SPROCKET, DRIVE (13T)
$42.52¢21 258
#019
SCREW, SPECIAL FLAT (6X12)
$2.42¢1 208
#020
BOLT, FLANGE SOCKET (6X14)
$3.74¢1 869
#021
BOLT, UBS (8X33)
$4.30¢2 151
#022
WASHER, SPLINE (26MM)
$2.83¢1 414
#023
PLATE, BEARING HOLDER
$0.71¢357
#024
WASHER, THRUST (24.1X37X1.0)
$4.05¢2 024
#025
WASHER, THRUST (17.1X30X1.5)
$4.05¢2 024
#026
WASHER, THRUST (27.2X35)
$5.43¢2 714
#027
WASHER, SPLINE (28X27X1)
$4.01¢2 007
#028
WASHER, THRUST (28MM)
$6.34¢3 168
#029
WASHER, SPLINE (26MM)
$3.75¢1 874
#030
WASHER, LOCK (26MM)
$3.98¢1 989
#031
WASHER, SPRING (24MM)
$4.75¢2 375
#032
WASHER, THRUST (19MM)
$4.88¢2 438
#033
CIRCLIP, SPECIAL (OUTER) (26MM)
$3.36¢1 679
#034
CIRCLIP (28MM)
$4.17¢2 087
#035
BEARING, RADIAL BALL SPECIAL (6205U)
$19.30¢9 649
#036
BEARING, RADIAL BALL (24X56X14)
$34.24¢17 118
#037
BEARING, RADIAL BALL (17X40X11)
$22.85¢11 425
#038
BEARING, NEEDLE (19X22X9.8)
$10.07¢5 037
#039
PLATE, COUNTERSHAFT BEARING
$5.44¢2 720
#040
D-RING (23.75MM)
$3.42¢1 708
#041
OIL SEAL (31X40X7) (ARAI)
$10.98¢5 491
