CUSHION ARM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

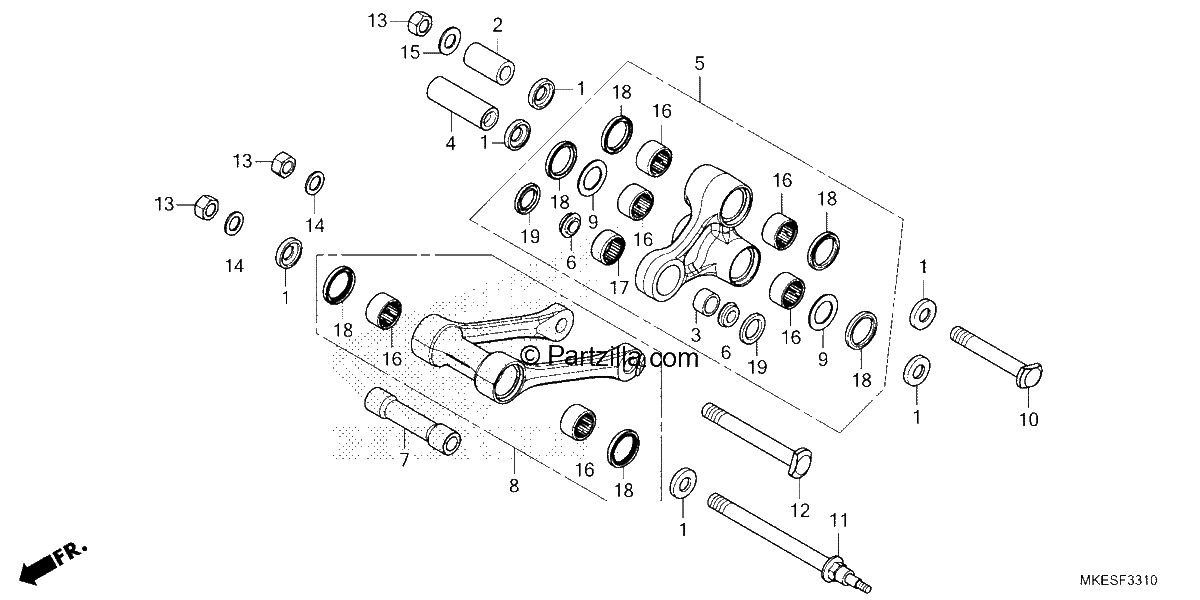

Diagrama de CUSHION ARM

Repuestos

#001
52462-MKE-A60
COLLAR, LINK SIDE
$14.00¢7 000
1
#002
52463-KZ4-J40
COLLAR C, CUSHION ARM
$6.90¢3 450
1
#003
52464-KRN-710
COLLAR D, CUSHION ARM
$11.99¢5 994
1
#004
52464-MKE-A00
COLLAR B, CUSHION
$15.31¢7 656
1
#005
52465-K95-AG0
ARM SUB-Assembly., CUSHION
$284.32¢142 163
1
#006
52466-KRN-710
COLLAR D, CUSHION ARM SIDE
$4.71¢2 356
1
#007
52473-K95-AG0
COLLAR, CONNECTING ROD
$18.73¢9 363
1
#008
52475-K95-AG0
ROD SUB-Assembly., CUSHION CONNECTING
$217.60¢108 800
1
#009
52476-KZ4-J20
WASHER, THRUST
$6.29¢3 144
1
#010
90130-MEN-840
BOLT, LINK (12X82)
$13.26¢6 631
1
#011
90131-K95-AG0
BOLT, LINK A (12X135)
$23.11¢11 556
1
#012
90132-MKE-A00
BOLT, LINK B (12X103.5)
$14.36¢7 181
1
#013
90305-KRN-A30
NUT, U (12MM)
$6.29¢3 144
1
#014
90501-KRN-710
WASHER, PLAIN (12MM)
$4.79¢2 394
1
#015
90501-KZ4-J40
WASHER, PLAIN (12MM)
$2.88¢1 438
1
#016
91051-KSC-003
BEARING, NEEDLE (20X26X15)
$10.28¢5 138
1
#017
91074-KRN-711
BEARING, NEEDLE (19X26X13)
$9.95¢4 975
1
#018
91262-KZ3-731
DUST SEAL (25X32X4)
$9.10¢4 550
1
#019
91351-KRN-711
DUST SEAL (17.5X26X3)
$3.65¢1 825
1
