REAR WHEEL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

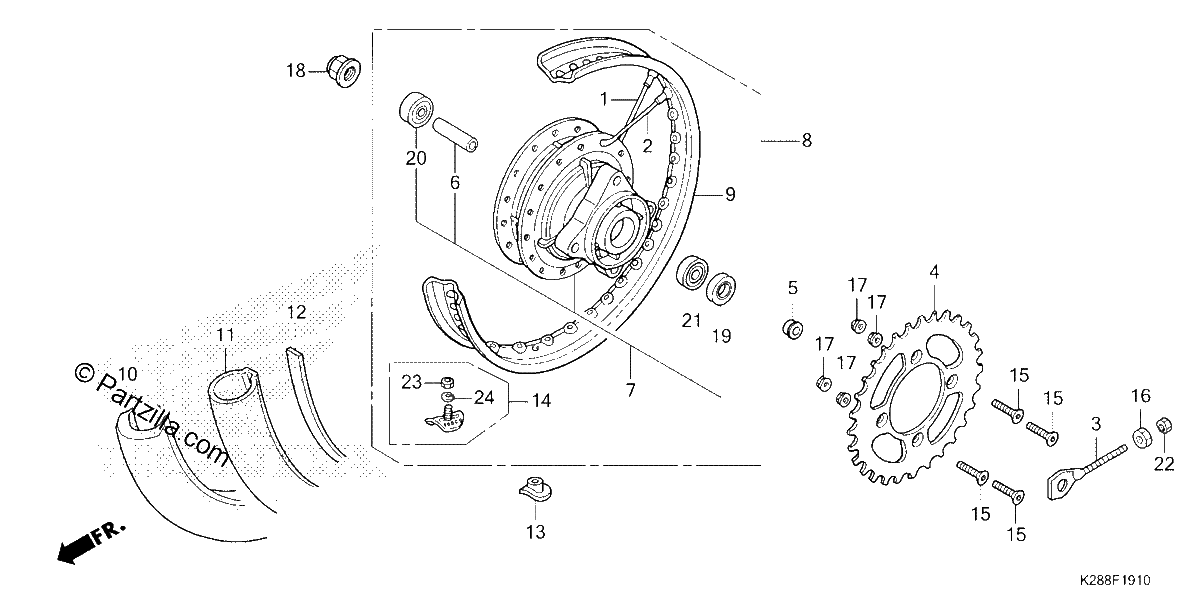

Diagrama de REAR WHEEL

Repuestos

#001
06420-K28-910
SPOKE SET A, FR. (B10X123.5)
$3.85¢1 926
1
#002
06421-K28-910
SPOKE SET B, FR. (B10X123.0)
$3.85¢1 926
1
#003
40543-K28-910
ADJUSTER, CHAIN
$3.42¢1 708
1
#004
41201-K28-910
SPROCKET, FINAL DRIVEN (46T)
$66.83¢33 413
1
#005
42311-K28-910
COLLAR, RR. WHEEL SIDE
$13.73¢6 865
1
#006
42620-KYK-910
COLLAR, RR. AXLE DISTANCE
$11.15¢5 577
1
#007
42635-K28-910
HUB SUB-ASSY., RR.
$275.61¢137 805
1
#008
42650-K28-305
WHEEL SUB-ASSY., RR. (COO)
$407.16¢203 579
1
#008
42650-K28-910
WHEEL SUB-Assembly., Rear.
$407.16¢203 579
1
#009
42701-K28-910
RIM, RR. WHEEL (14X1.85)
$72.21¢36 104
1
#010
42711-K28-912
TIRE, Rear. (90/100-14M/C 49M) (CST)
$104.52¢52 262
1
#011
42712-K28-911
TUBE, TIRE (90/100-14) (CST)
$32.64¢16 318
1
#012
42713-K28-911
FLAP, TIRE (CST)
$5.46¢2 731
1
#013
42714-KA3-710
CAP, VALVE
$11.18¢5 589
1
#014
42715-KA2-680
STOPPER, BEAD (1.85)
$34.48¢17 239
1
#015
90125-KA4-000
SCREW, FLAT (8X31)
$3.44¢1 719
1
#016
90302-KBP-900
NUT, SPECIAL (6MM)
$2.42¢1 208
1
#017
90303-K28-911
NUT, FLANGE SPECIAL (8MM)
$4.62¢2 311
1
#018
90306-KYA-601
NUT, FLANGE (12MM) (PT)
$3.36¢1 679
1
#019
90755-GC4-003
DUST SEAL (21X37X5.5) (ARAI)
$5.63¢2 818
1
#019
90755-GC4-005
DUST SEAL (21X37X5.5) (NOK)
$5.63¢2 818
1
#020
91051-K28-911
BEARING, RADIAL BALL (6201UU)
$21.19¢10 597
1
#021
91052-KWW-C51
BEARING, RADIAL BALL (6301UU)
$22.11¢11 057
1
#022
94001-06000-0S
NUT, HEX. (6MM)
$1.54¢771
1
#022
94001-06200-0S
NUT, HEX. (6MM)
$1.54¢771
1
#023
94001-08000-0S
NUT, HEX. (8MM)
$1.54¢771
1
#024
94111-08000
WASHER, SPRING (8MM)
$1.12¢558
1
