OIL PAN OIL PUMP

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

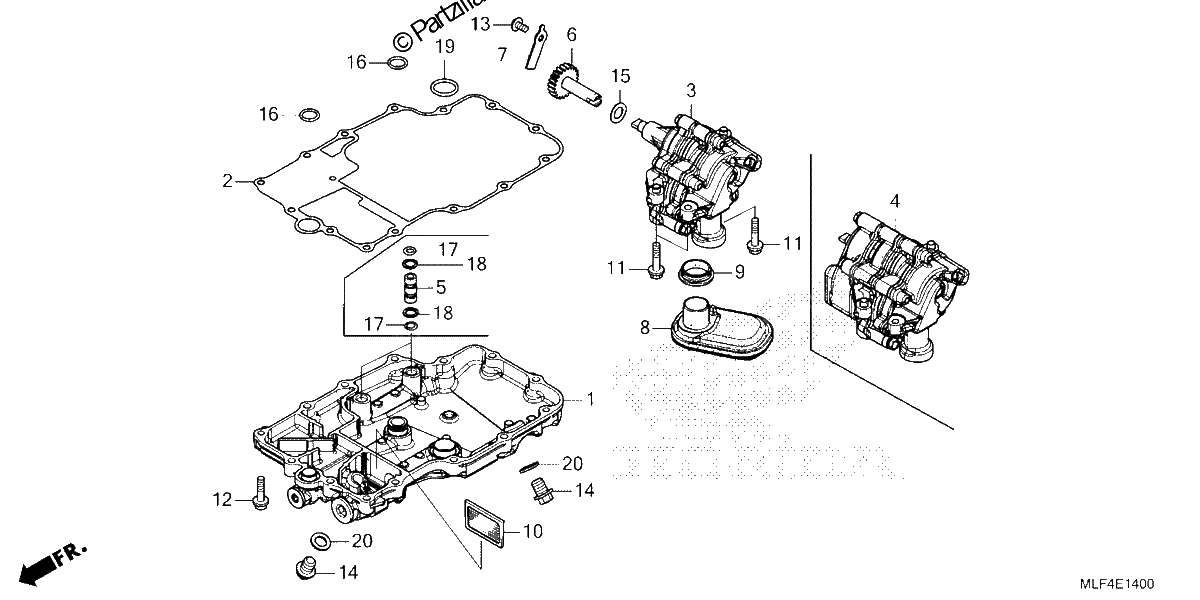

Diagrama de OIL PAN OIL PUMP

Repuestos

#001
11210-MLA-A50
PAN, OIL
$359.39¢179 693
1
#002
11395-MJP-G51
GASKET, OIL PAN
$57.47¢28 733
1
#004
15100-MJP-G81
PUMP Assembly., OIL
$502.93¢251 465
1
#005
15104-MGS-D20
PIPE, OIL PASSAGE
$11.58¢5 790
1
#006
15130-MKS-E00
GEAR, OIL PUMP DRIVEN (21T)
$94.71¢47 357
1
#007
15136-MJP-G50
PLATE, OIL PUMP DRIVEN GEAR SHAFT
$3.45¢1 725
1
#008
15150-MJP-G50
STRAINER, OIL
$44.51¢22 253
1
#009
15154-MAT-000
GASKET, OIL STRAINER
$6.87¢3 433
1
#010
15421-MJP-G50
SCREEN, OIL FILTER
$11.56¢5 779
1
#011
90022-MJP-G50
BOLT, SPECIAL (6X32)
$2.51¢1 254
1
#012
90026-GHB-690
BOLT, FLANGE (6X28)
$2.59¢1 294
1
#013
90103-MEN-710
BOLT, SPECIAL (6MM)
$2.24¢1 121
1
#014
90131-883-000
BOLT, DRAIN PLUG (12X15)
$4.50¢2 248
1
#014
90131-896-650
BOLT, DRAIN PLUG (12X15)
$4.50¢2 248
1
#015
90401-MKE-A70
WASHER (12.1X25X1)
$2.75¢1 374
1
#016
91303-KF0-003
O-RING (14.8X2.4) (ARAI)
$2.09¢1 047
1
#017
91311-RFH-003
O-RING (7.7X1.9)
$3.09¢1 547
1
#018
91315-MGS-D20
RING, BACK-UP (8X11)
$3.96¢1 978
1
#019
91352-MGE-003
O-RING (21.5X2.9)
$2.30¢1 150
1
#020
94109-12000
WASHER, DRAIN PLUG (12MM)
$1.45¢724
1
