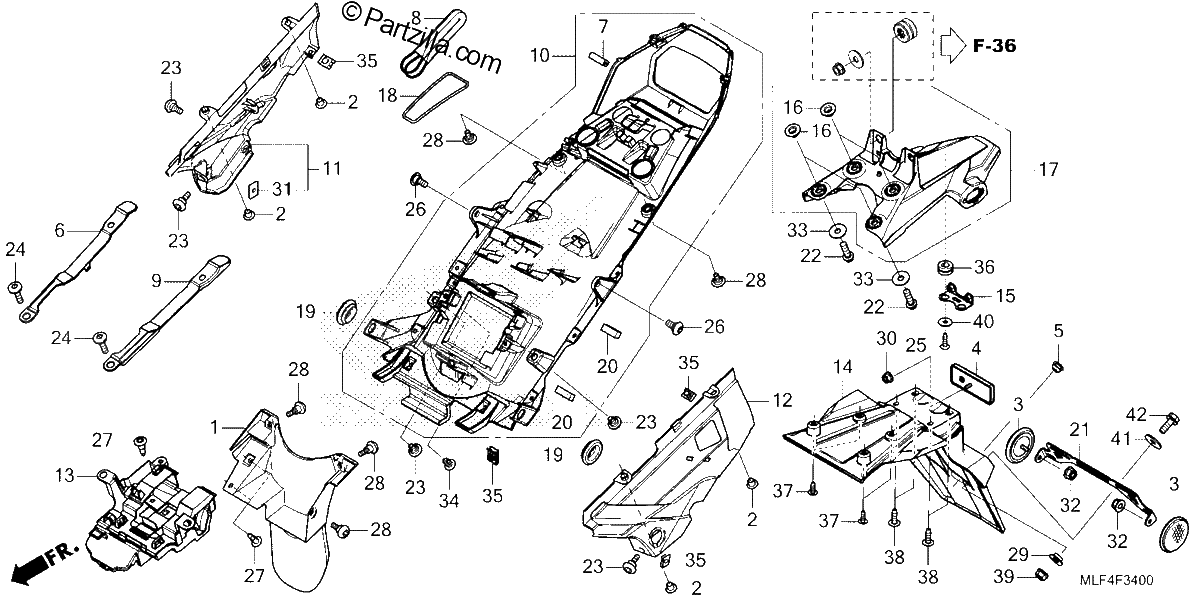

REAR FENDER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
SPLASH GUARD
$73.36¢36 681
#002
COLLAR, TAILLIGHT
$3.65¢1 825
#003
REFLECTOR, Rear REFLEX (RED)
$15.50¢7 750
#004
REFLECTOR, REFLEX (STANLEY)
$17.73¢8 863
#005
PLUG, HANDLE COVER (LOWER)
$2.39¢1 194
#006
COVER, Right SEAT (LOWER)
$7.76¢3 881
#007
PROTECTOR, RUBBER
$2.24¢1 119
#008
WIRE, HELMET SET
$10.28¢5 138
#009
COVER, L SEAT (LOWER)
$7.76¢3 881
#010
FENDER B, Rear.
$87.75¢43 875
#011
COVER, R. FENDER B
$31.58¢15 788
#012
COVER, L. FENDER B
$31.13¢15 563
#013
TRAY, BODY CONTROL UNIT
$34.42¢17 213
#014
FENDER A, Rear.
$98.34¢49 169
#015
BRACKET, LICENSE LIGHT
$9.32¢4 663
#016
COLLAR, FENDER
$5.02¢2 512
#017
STAY SET, FENDER A (TYPE1) (WL)
$78.66¢39 331
#018
BAND, TOOL
$3.44¢1 719
#019
GROMMET, AIR CLEANER HOUSING
$6.81¢3 406
#020
MAT, Rear FENDER
No Disponible
#021
STAY, REFLECTOR
$58.95¢29 475
#022
BOLT, FLANGE (6X20)
$2.99¢1 494
#023
SCREW, SPECIAL (5X14)
$3.65¢1 825
#024
SCREW, PAN (5X20)
$2.99¢1 494
#025
SCREW, TAPPING (4X16)
$2.99¢1 494
#026
SCREW, SPECIAL (6X14)
$1.38¢688
#027
CLIP, BUMPER SEAL
$5.72¢2 863
#028
SCREW, SPECIAL (5X11)
$3.20¢1 600
#029
COLLAR (6X4)
$4.15¢2 075
#030
NUT, FLANGE (5MM) (FUSE RASHI)
$6.00¢3 000
#031
NUT, SPECIAL (6X7)
$4.65¢2 325
#032
NUT U, FLANGE (6MM)
$3.40¢1 700
#033
WASHER B, HANDLE HOLDER SETTING
$2.36¢1 181
#034
CLIP, BRUSH
$2.88¢1 438
#035
NUT, CLIP (5MM)
$4.94¢2 469
#036
RUBBER, TAILLIGHT MOUNTING
$4.96¢2 481
#037
SCREW, TAPPING (4X12)
$1.16¢581
#038
SCREW, TAPPING (5X16)
$1.16¢581
#039
NUT, FLANGE (6MM)
$0.80¢400
#040
WASHER, PLAIN (4MM)
$1.21¢606
#041
WASHER, PLAIN (6MM)
$1.00¢500
#042
BOLT, FLANGE (6X16)
$2.09¢1 044
