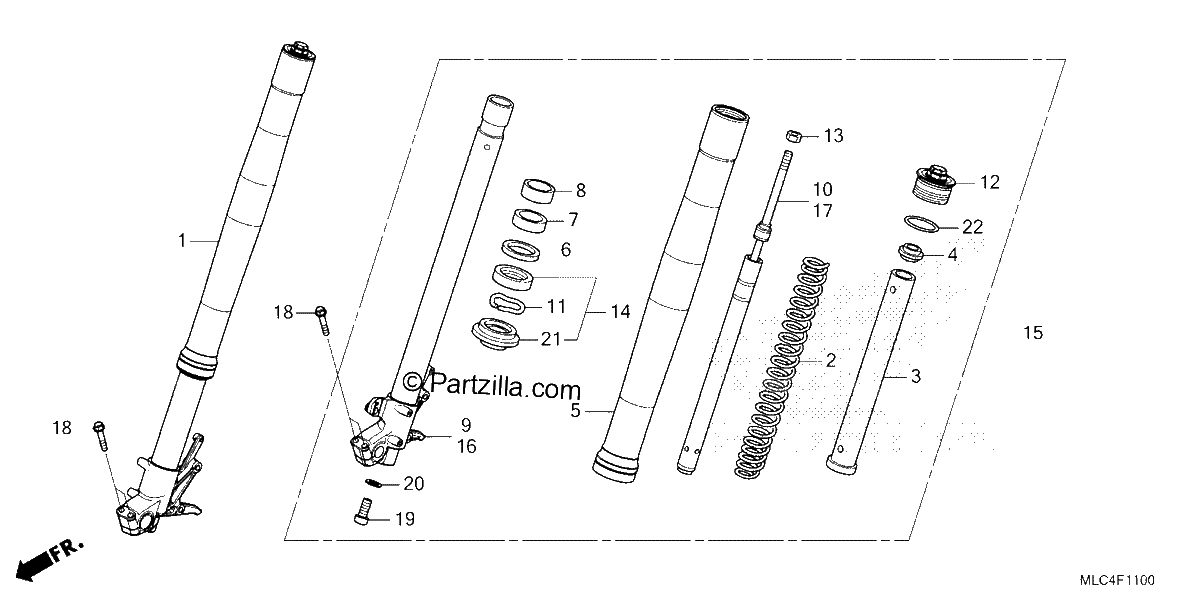

FRONT FORK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
FORK Assembly., Right Front.
$1267.11¢633 556
#002
SPRING, R. FR. FORK (RIGHT & LEFT)
$64.90¢32 450
#003
COLLAR, SPRING
$21.70¢10 850
#004
STOPPER, SPRING SEAT
$9.59¢4 794
#005
TUBE (OUTER)
$519.86¢259 931
#006
RING, BACK-UP
$11.29¢5 644
#007
BUSH, GUIDE
$8.58¢4 288
#008
BUSH, SLIDER
$35.79¢17 894
#009
PIPE, R. SLIDE
$390.39¢195 194
#010
DAMPER, Front. (Right SIDE)
$408.15¢204 075
#011
RING, OIL SEAL STOPPER (SHOWA)
$5.47¢2 738
#012
BOLT, FR. FORK
$161.00¢80 500
#013
NUT, HEX. (10MM)
$3.73¢1 863
#014
SEAL SET, FR. FORK
$22.40¢11 200
#015
FORK Assembly., L Front.
$1267.11¢633 556
#016
PIPE, L. SLIDE
$373.65¢186 825
#017
DAMPER, FR. (L. SIDE)
$457.21¢228 606
#018
BOLT, FLANGE (8X45)
$3.10¢1 550
#019
BOLT, SOCKET (8MM) (SHOWA)
$4.71¢2 356
#020
WASHER, SPECIAL (8MM) (SHOWA)
$3.65¢1 825
#021
DUST SEAL
$16.57¢8 288
#022
O-RING (44.7X2.4)
$4.76¢2 381
