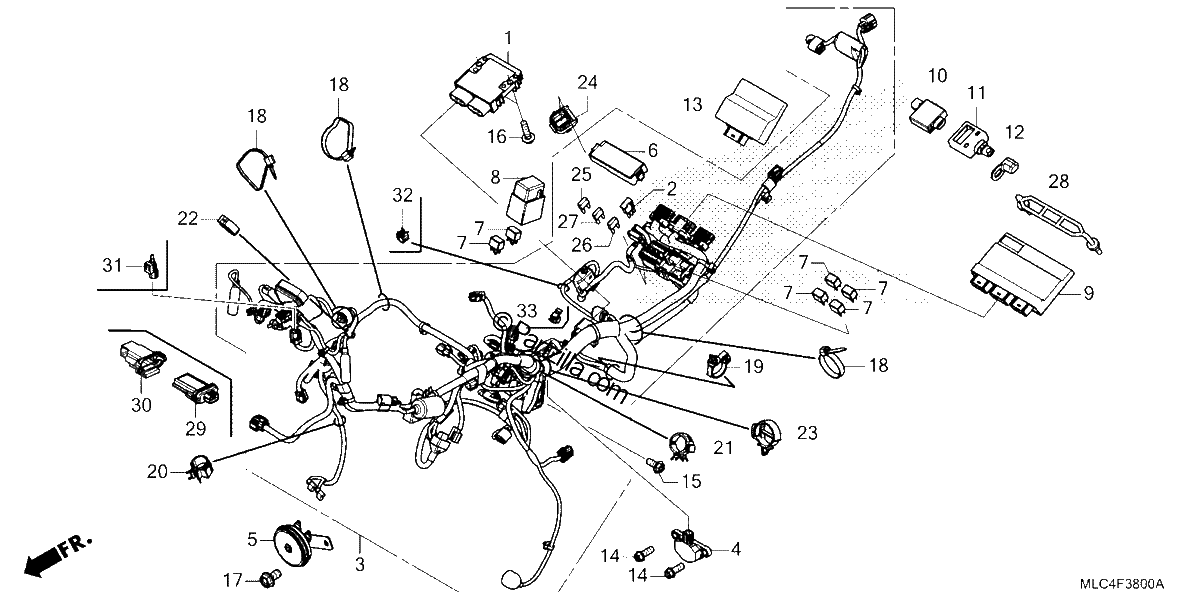

WIRE HARNESS
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
RECTIFIER ASSY., REGULATOR
$202.96¢101 482
#002
DIODE ASSY., THREE WAY (SUMITOMO)
$11.63¢5 813
#003
WIRE HARNESS
$926.39¢463 197
#004
SENSOR ASSY., BANK ANGLE
$177.72¢88 860
#005
HORN (LOW)
$41.74¢20 872
#006
COVER (UPPER)
$12.10¢6 049
#007
RELAY, POWER (MICRO ISO 4P)
$5.19¢2 593
#008
COVER, RELAY (2P)
$4.28¢2 139
#009
PGM-FI UNIT
$1364.41¢682 203
#010
CHARGER UNIT, USB (TYPE-C)
$79.20¢39 600
#011
COVER, USB CHARGER (TYPE-C)
$9.43¢4 715
#012
CAP, USB CHARGER COVER
$3.92¢1 961
#013
CONTROL UNIT, BODY
$249.40¢124 700
#014
BOLT, FLANGE (6X16)
$2.68¢1 340
#015
BOLT, FLANGE (6X14)
$2.66¢1 328
#016
BOLT, FLANGE (6X22)
$2.86¢1 432
#017
BOLT, FLANGE (8X14)
$1.61¢805
#018
BAND, WIRE (165MM) (BLACK)
$3.36¢1 679
#019
CLAMP, HARNESS
$6.64¢3 318
#020
CLIP, CABLE (15MM)
$2.59¢1 294
#021
CLIP, CABLE (25MM)
$2.59¢1 294
#022
CLAMP, HARNESS
$1.54¢771
#023
STRAP, WIRE HARNESS
$1.15¢575
#024
CAP, DUMMY (6P) (RED)
$26.62¢13 311
#025
FUSE, MINI (10A)
$1.56¢782
#026
FUSE, MINI (15A)
$1.37¢684
#027
FUSE, MINI (30A)
$1.98¢989
#028
BAND, TOOL
$5.54¢2 772
#029
BLUETOOTH UNIT
$123.96¢61 979
#030
CUSHION, BLUETOOTH UNIT
$5.81¢2 904
#031
SENSOR Assembly., AMBIENT
$9.44¢4 721
#032
CLIP, CABLE (10MM)
$2.59¢1 294
#033
CLIP, CONNECTOR (DARK BLUE)
$6.84¢3 421
