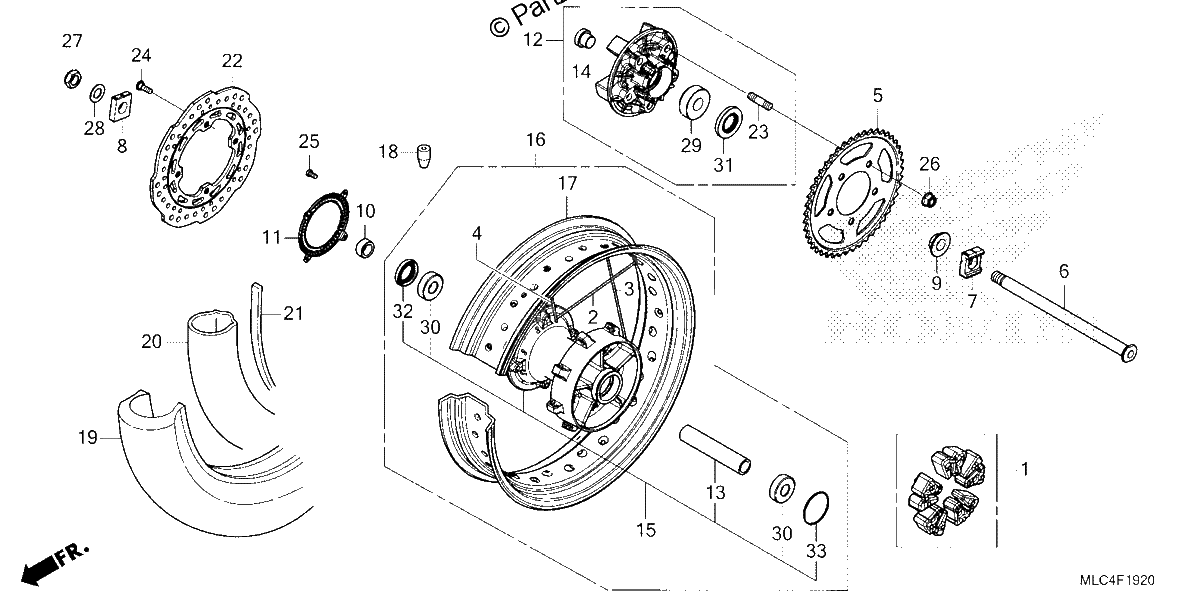

REAR WHEEL
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
DAMPER SET, WHEEL
$46.32¢23 161
#002
SPOKE SET A, RR. (R. OUTSIDE)
$6.44¢3 220
#003
SPOKE SET B, RR. (L. SIDE)
$6.44¢3 220
#004
SPOKE SET C, RR. (R. INSIDE)
$6.44¢3 220
#005
SPROCKET, FINAL DRIVEN (45T)
$62.78¢31 389
#006
AXLE, RR. WHEEL
$59.57¢29 785
#007
COLLAR, L. RR. AXLE
$35.95¢17 975
#008
COLLAR, R. RR. AXLE
$30.97¢15 485
#009
COLLAR, L. RR. WHEEL SIDE
$25.13¢12 564
#010
COLLAR, RR. BRAKE SIDE
$16.69¢8 343
#011
RING, RR. PULSER
$67.02¢33 511
#012
FLANGE SUB-ASSY., FINAL DRIVEN
$200.54¢100 268
#013
COLLAR, RR. AXLE DISTANCE
$38.86¢19 429
#014
COLLAR B, RR. WHEEL DISTANCE
$19.66¢9 833
#015
HUB SUB-ASSY., RR.
$593.84¢296 919
#016
WHEEL SUB-Assembly., Rear.
$1067.88¢533 939
#017
RIM, Rear WHEEL (18M/CXMT4.00)
$453.59¢226 797
#018
WEIGHT, BALANCE (15G)
$9.02¢4 508
#019
TIRE, RR. (150/70R18 M/C 70H) (PIRELLI)
$355.46¢177 733
#019
TIRE, RR. (150/70R18 M/C 70H) (DUNLOP)
$209.15¢104 575
#020
TUBE, TIRE (DUNLOP)
$40.02¢20 010
#020
TUBE, TIRE (PIRELLI)
$46.98¢23 489
#021
FLAP, TIRE (DUNLOP)
$5.73¢2 864
#021
FLAP
$6.58¢3 289
#022
DISK, Rear BRAKE (YUTAKA)
$384.55¢192 274
#023
BOLT, STUD (12X25)
$4.47¢2 237
#024
BOLT, BRAKE DISK (8X24)
$4.48¢2 242
#025
BOLT, TORX (5X8)
$3.36¢1 679
#026
NUT U, FLANGE (12MM)
$4.37¢2 185
#027
NUT, U (18MM)
$7.60¢3 801
#028
WASHER (18X32X2)
$4.99¢2 496
#029
BEARING, RADIAL BALL (6322)
$42.76¢21 379
#030
BEARING, RADIAL BALL (6204UU) (NSK)
$16.33¢8 165
#031
DUST SEAL (30X56X7.5)
$12.95¢6 474
#032
DUST SEAL (30X47X8) (ARAI)
$12.96¢6 480
#032
DUST SEAL (30X47X8) (NOK)
$12.96¢6 480
#033
O-RING (55X2)
$3.36¢1 679
