TRANSMISSION

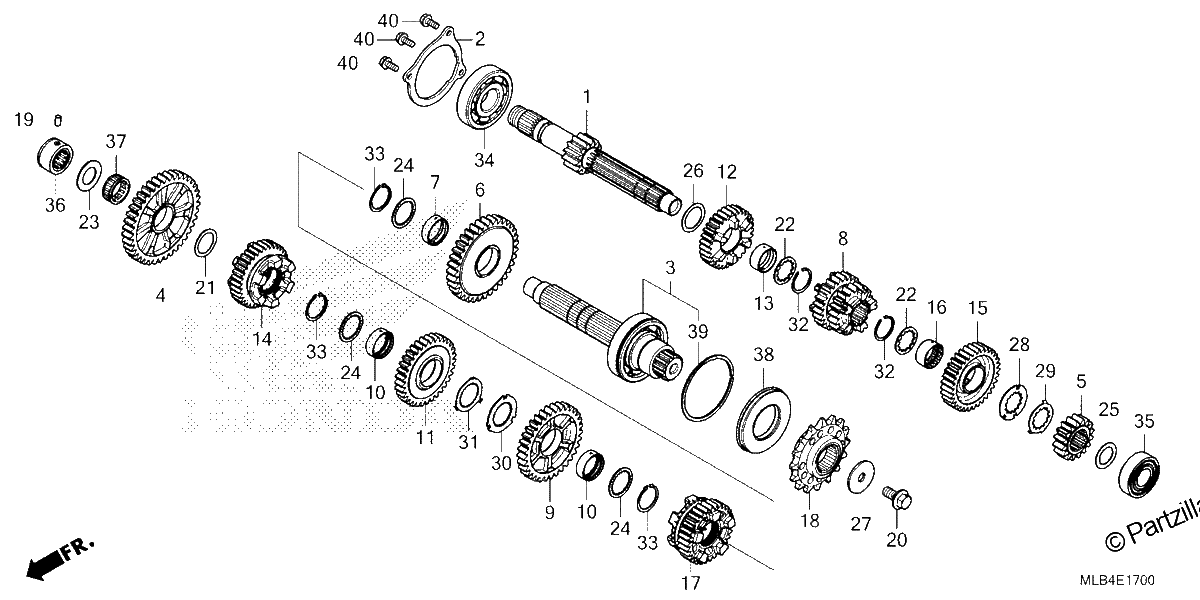

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
MAINSHAFT (13T)
$145.58¢72 789
#002
PLATE, MAINSHAFT BEARING SETTING
$5.40¢2 702
#003
COUNTERSHAFT
$165.04¢82 518
#004
GEAR, COUNTERSHAFT FIRST (39T)
$106.83¢53 418
#005
GEAR, MAINSHAFT SECOND (16T)
$52.04¢26 019
#006
GEAR, COUNTERSHAFT SECOND (35T)
$106.83¢53 418
#007
COLLAR (28MM)
$23.78¢11 891
#008
GEAR, MAINSHAFT THIRD & FOURTH(20T/25T)
$126.21¢63 106
#009
GEAR, COUNTERSHAFT THIRD (33T)
$101.65¢50 824
#010
COLLAR, SPLINE (28X31X10)
$16.63¢8 315
#011
GEAR, COUNTERSHAFT FOURTH (33T)
$101.65¢50 824
#012
GEAR, MAINSHAFT FIFTH (31T)
$103.41¢51 704
#013
COLLAR (25X28X12)
$15.86¢7 929
#014
GEAR, COUNTERSHAFT FIFTH (34T)
$115.66¢57 828
#015
GEAR, MAINSHAFT SIXTH (33T)
$103.41¢51 704
#016
COLLAR, SPLINE (25X28X13)
$32.12¢16 060
#017
GEAR, COUNTERSHAFT SIXTH (31T)
$115.66¢57 828
#018
SPROCKET, DRIVE (16T)
$42.63¢21 315
#019
PIN, GEARSHIFT FORK GUIDE
$4.70¢2 352
#020
BOLT, SPECIAL (10MM)
$8.18¢4 088
#021
WASHER, THRUST (24MM)
$4.08¢2 041
#022
WASHER, SPLINE (25X31X1.5)
$4.25¢2 128
#023
WASHER, THRUST (20X35X1.5)
$2.79¢1 397
#024
WASHER, SPLINE (28X27X1)
$4.01¢2 007
#025
WASHER, THRUST (20MM)
$3.15¢1 576
#026
WASHER, THRUST (25MM)
$3.00¢1 501
#027
WASHER (10.2MM)
$6.51¢3 254
#028
WASHER, SPLINE (25MM)
$6.34¢3 168
#029
WASHER, LOCK (25MM)
$11.03¢5 514
#030
WASHER, SPLINE (28MM)
$3.36¢1 679
#031
WASHER, LOCK (28MM)
$3.36¢1 679
#032
CIRCLIP (25MM)
$4.17¢2 087
#033
CIRCLIP (28MM)
$4.17¢2 087
#034
BEARING, RADIAL BALL SPECIAL (63/28)
$39.36¢19 682
#035
BEARING, RADIAL BALL (6204U)
$20.53¢10 264
#036
BEARING, NEEDLE (20MM) (NTN)
$51.77¢25 886
#037
BEARING, NEEDLE (24X28X10)
$12.88¢6 440
#038
OIL SEAL (39X72X8)
$13.68¢6 842
#039
RING, SNAP (72MM)
$4.43¢2 214
#040
BOLT, FLANGE (6X14)
$1.13¢564
