FRONT FORK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

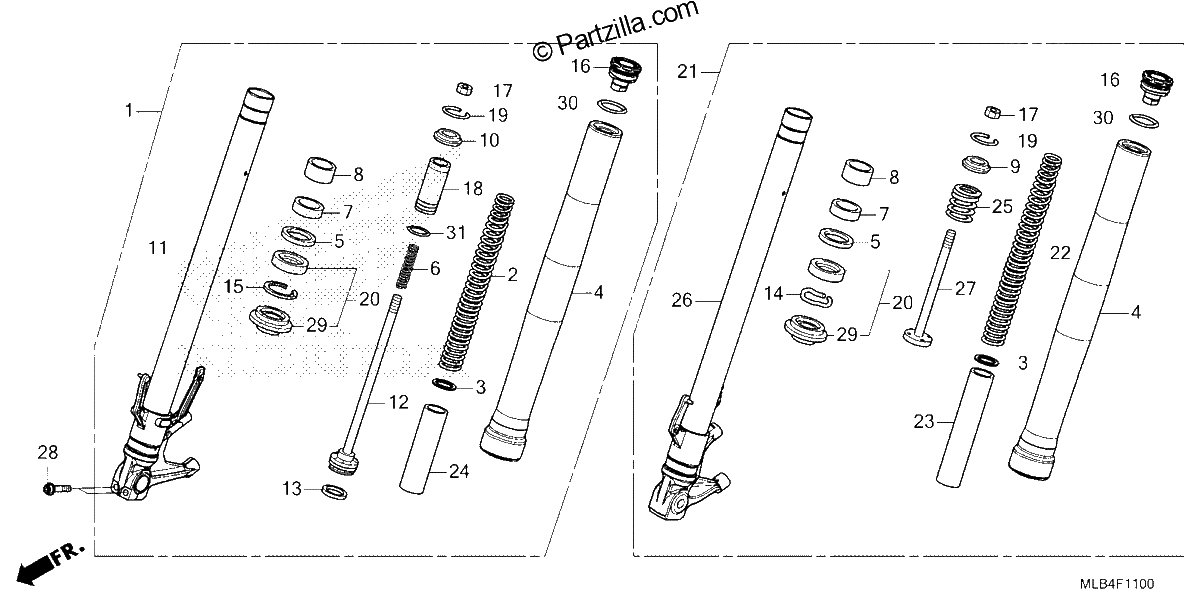

Diagrama de FRONT FORK

Repuestos

#001
51400-MLB-D21
FORK Assembly., Right Front. (SHOWA)
$924.49¢462 244
1
#002
51401-MLB-D01
SPRING, Right Front FORK
$71.64¢35 819
1
#003
51404-MKP-DN1
JOINT, SPRING
$4.04¢2 019
1
#004
51410-MLR-D81
TUBE (OUTER) (BLACK)
$332.82¢166 413
1
#005
51412-MB4-003
RING, BACK-UP (SHOWA)
$11.29¢5 644
1
#006
51412-MKP-DQ1
SPRING, R. REBOUND
$3.50¢1 750
1
#007
51414-MFJ-A51
BUSH, GUIDE
$8.80¢4 400
1
#008
51415-MFJ-A51
BUSH, SLIDER
$8.80¢4 400
1
#009
51419-K94-T01
SEAT, STOPPER
$11.90¢5 950
1
#010
51419-MKY-D51
SEAT, R. STOPPER
$8.26¢4 131
1
#011
51425-MLB-D01
PIPE, Right SLIDE (SHOWA)
$393.84¢196 919
1
#012
51426-MLB-D21
ROD, PISTON
$102.88¢51 438
1
#013
51437-MKY-D51
RING, PISTON
$1.79¢894
1
#014
51447-KA4-711
RING, OIL SEAL STOPPER (SHOWA)
$5.47¢2 738
1
#015
51447-MB4-003
CIRCLIP (INNER)
$5.64¢2 819
1
#016
51450-MLB-D21
BOLT, Front FORK
$68.55¢34 275
1
#017
51451-MKY-D51
NUT, HEX.
$17.63¢8 813
1
#018
51455-K0A-EB1
CASE, ROD GUIDE
$55.90¢27 950
1
#019
51456-K94-T01
RING, STOPPER
$2.88¢1 438
1
#020
51490-MKL-D81
SEAL SET, FR. FORK
$29.18¢14 588
1
#021
51500-MLB-D21
FORK Assembly., L Front. (SHOWA)
$798.44¢399 219
1
#022
51501-MLB-D01
SPRING, L Front FORK
$74.88¢37 438
1
#023
51511-MKP-DN1
COLLAR B, SPRING
$22.27¢11 138
1
#024
51511-MKP-DQ1
COLLAR B, SPRING
$17.44¢8 719
1
#025
51512-MKP-DQ1
SPRING, L. REBOUND
$5.39¢2 694
1
#026
51525-MLB-D01
PIPE, L SLIDE (SHOWA)
$393.84¢196 919
1
#027
51526-MLB-D01
ROD
$56.60¢28 300
1
#028
90107-MLB-D00
BOLT, FLANGE (8X40)
$2.91¢1 456
1
#029
91251-MKL-D81
DUST SEAL
$12.39¢6 194
1
#030
91258-MEE-D01
O-RING (39.7X2.4)
$2.73¢1 363
1
#031
91356-KF0-003
O-RING (33.2X2.4)
$4.56¢2 281
1
