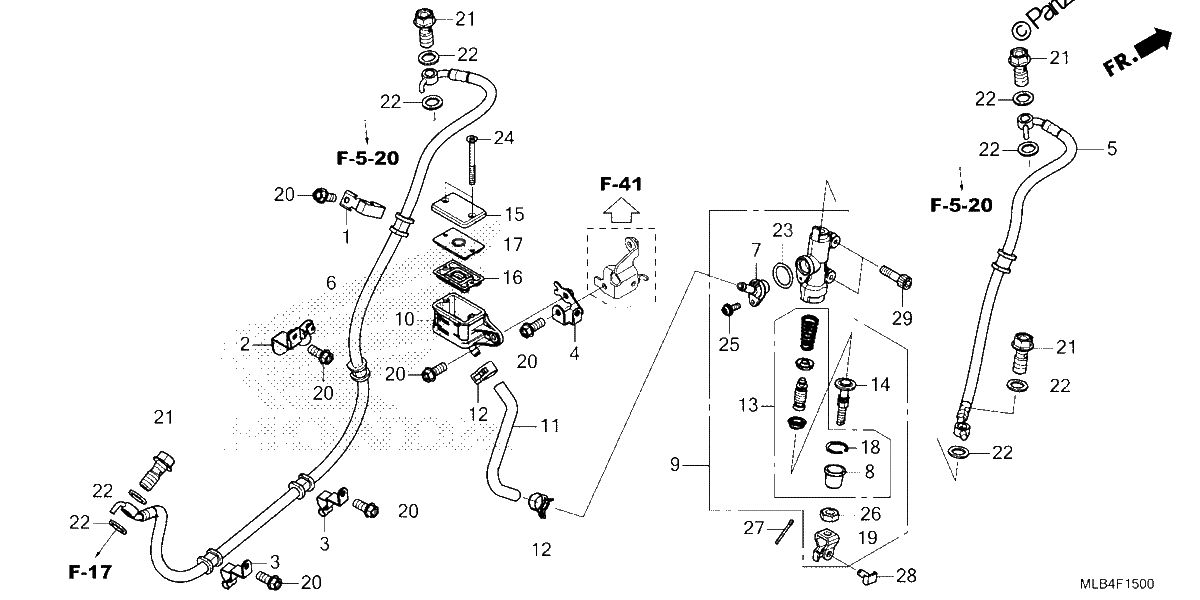

REAR BRAKE MASTER CYLINDER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
CLAMP A, RR. BRAKE HOSE
$6.70¢3 350
#002
CLAMP B, Rear BRAKE HOSE
$11.00¢5 500
#003
CLAMP C, Rear BRAKE HOSE
$7.11¢3 556
#004
STAY A, OIL CUP
$7.34¢3 669
#005
HOSE A, Rear BRAKE
$49.63¢24 813
#006
HOSE B, Rear BRAKE
$76.96¢38 481
#007
CONNECTOR, RR. BRAKE MASTER CYLINDER
$15.48¢7 738
#008
BOOT
$11.74¢5 869
#009
MASTER CYLINDER SUB-Assembly., Rear BRAKE (NISSIN)
$166.51¢83 256
#010
CUP, OIL
$27.52¢13 763
#011
HOSE, Rear MASTER CYLINDER
$10.04¢5 019
#012
CLAMP, MASTER CYLINDER OIL HOSE
$15.24¢7 619
#013
PISTON SET, MASTER CYLINDER (NISSIN)
$53.06¢26 531
#014
ROD, PUSH
$35.65¢17 825
#015
CAP, MASTER CYLINDER (COO)
$5.04¢2 519
#015
CAP, MASTER CYLINDER
$5.04¢2 519
#016
DIAPHRAGM
$12.31¢6 156
#017
PLATE, DIAPHRAGM
$12.60¢6 300
#018
CIRCLIP
$2.50¢1 250
#019
JOINT, BRAKE ROD
$17.25¢8 625
#020
BOLT, FLANGE (6X14)
$2.88¢1 438
#021
BOLT, OIL (10X22)
$8.89¢4 444
#022
WASHER, OIL BOLT
$4.85¢2 425
#023
O-RING (14.8X2.4)
$3.30¢1 650
#024
SCREW, FLAT (4X40)
$0.61¢306
#025
SCREW-WASHER (4X12)
$1.72¢862
#025
SCREW-WASHER (4X12)
$1.72¢862
#026
NUT, HEX. (8MM)
$1.60¢800
#027
PIN, SPLIT (2.0X15)
$1.34¢669
#028
PIN D, JOINT
$5.15¢2 575
#029
BOLT, SOCKET (6X20)
$1.66¢831
