THERMOSTAT WATER HOSE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

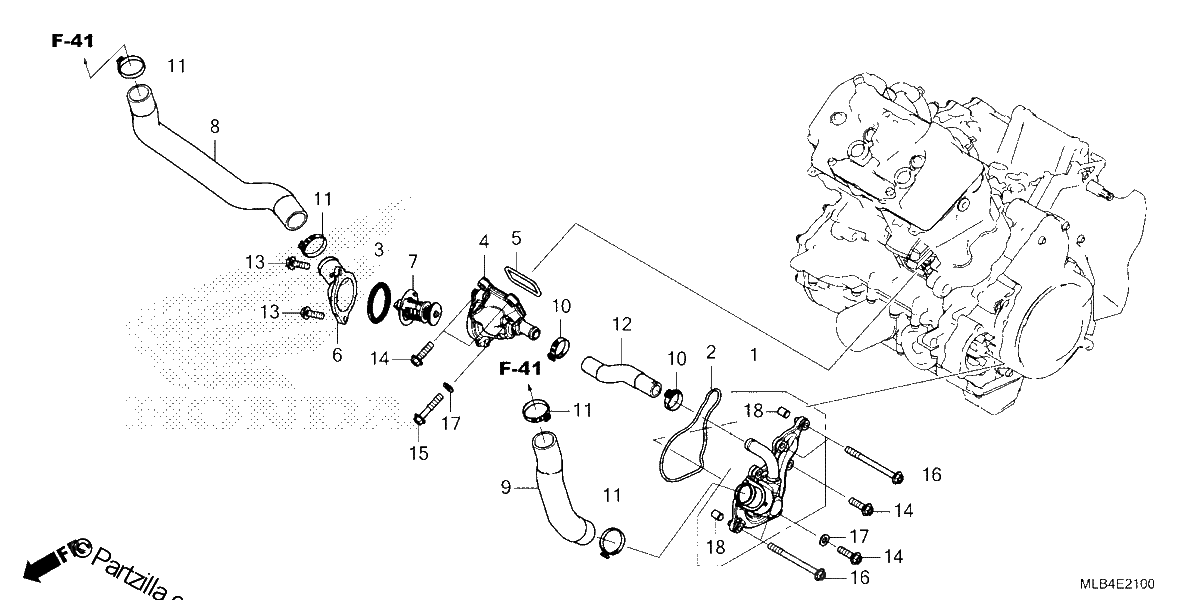

Diagrama de THERMOSTAT WATER HOSE

Repuestos

#001
19220-MLB-D00
COVER, WATER PUMP
$100.70¢50 350
1
#002
19226-MLB-D00
GASKET, WATER PUMP BODY
$5.41¢2 706
1
#003
19305-MGZ-J01
RUBBER, THERMOSTAT
$2.36¢1 181
1
#004
19311-MLB-D00
CASE, THERMOSTAT
$82.50¢41 250
1
#005
19312-MLB-D00
GASKET, THERMOSTAT CASE
$4.20¢2 100
1
#006
19316-MLB-D00
COVER, THERMOSTAT
$46.28¢23 138
1
#007
19320-MFJ-D01
THERMOSTAT
$40.03¢20 013
1
#008
19501-MLB-D00
HOSE A, RADIATOR
$45.14¢22 569
1
#009
19502-MLB-D00
HOSE B, RADIATOR
$29.53¢14 763
1
#010
19511-MKF-D41
CLAMP, HOSE (D19)
$12.31¢6 156
1
#011
19514-MKF-D41
CLAMP, HOSE (D29.8)
$11.99¢5 994
1
#012
19527-MLB-D00
HOSE, WATER BYPASS
$13.65¢6 825
1
#013
90028-GHB-650
BOLT, FLANGE (6X18) (S-NSHF)
$2.97¢1 487
1
#014
90028-GHB-670
BOLT, FLANGE (6X22) (S-NSHF)
$3.01¢1 506
1
#015
90028-GHB-710
BOLT, FLANGE (6X32) (S-NSHF)
$2.41¢1 206
1
#016
90028-GHB-780
BOLT, FLANGE (6X60) (S-NSHF)
$1.38¢688
1
#017
90463-ML7-000
WASHER, SEALING (6.5MM)
$3.65¢1 825
1
#018
90702-MGS-D30
PIN, DOWEL (8X10)
$1.99¢994
1
