RIGHT CRANKCASE COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

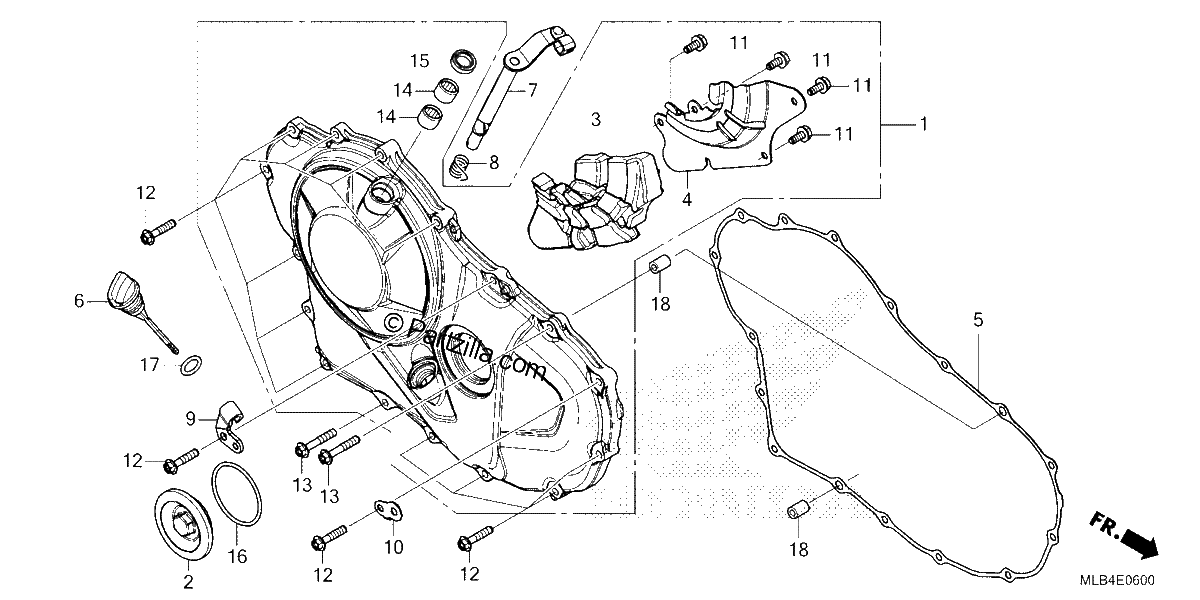

Diagrama de RIGHT CRANKCASE COVER

Repuestos

#001
11330-MLB-D00
COVER, R. CRANKCASE
$262.96¢131 480
1
#002
11332-MGZ-J00
CAP (45MM)
$23.79¢11 897
1
#003
11334-MLB-D00
RUBBER, R. COVER
$21.40¢10 701
1
#004
11336-MLB-D00
PLATE, R. COVER RUBBER
$16.45¢8 223
1
#005
11394-MLB-D01
GASKET, R. CRANKCASE COVER
$27.00¢13 501
1
#006
15651-MLB-D00
DIPSTICK, OIL
$8.60¢4 301
1
#007
22810-MLB-D00
LEVER, CLUTCH
$46.38¢23 190
1
#008
22815-MJE-D00
SPRING, CLUTCH LEVER
$1.30¢650
1
#009
22821-MLB-D00
RECEIVER, CLUTCH CABLE
$7.31¢3 657
1
#010
32157-MJM-D00
STAY, HARNESS CLIP
$5.45¢2 726
1
#011
90013-883-000
BOLT, FLANGE (6X12) (CT200)
$1.75¢874
1
#012
90028-GHB-690
BOLT, FLANGE (6X28) (S-NSHF)
$1.30¢650
1
#013
90028-GHB-720
BOLT, FLANGE (6X35) (S-NSHF)
$1.30¢650
1
#014
91053-MFJ-D01
BEARING, NEEDLE (12X16X10)
$4.76¢2 380
1
#015
91204-KK0-003
OIL SEAL (12X18X5) (ARAI)
$5.63¢2 818
1
#016
91301-ML7-003
O-RING (48.1X3.6) (ARAI)
$4.38¢2 191
1
#017
91307-035-000
O-RING (18X3)
$3.36¢1 679
1
#018
94301-08140
PIN, DOWEL (8X14)
$2.66¢1 328
1
