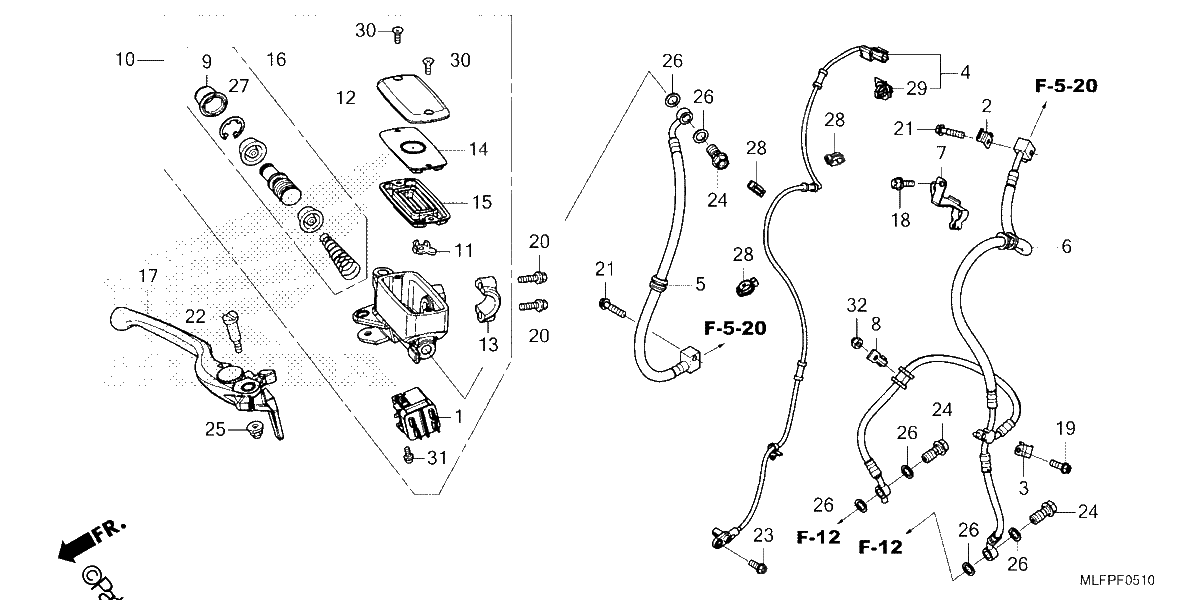

FRONT BRAKE MASTER CYLINDER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
SWITCH ASSY., FR. STOP & CRUISE
$74.90¢37 450
#002
CLAMP B, SENSOR WIRE
$2.91¢1 456
#003
CLAMP B, SENSOR WIRE
$2.31¢1 156
#004
SENSOR, Front WHEEL SPEED
$79.52¢39 762
#005
HOSE A, Front BRAKE
$52.15¢26 075
#006
HOSE D, Front BRAKE
$129.46¢64 731
#007
CLAMP, Front BRAKE HOSE
$8.20¢4 100
#008
CLAMP A, FR. BRAKE HOSE
$4.69¢2 344
#009
BOOT
$14.24¢7 119
#010
MASTER CYLINDER SUB-Assembly., Front BRAKE (NISSIN)
$298.75¢149 375
#011
PROTECTOR
$5.20¢2 600
#012
CAP, MASTER CYLINDER (NISSIN)
$26.02¢13 013
#013
HOLDER, MASTER CYLINDER
$15.74¢7 869
#014
PLATE, DIAPHRAGM
$12.36¢6 181
#015
DIAPHRAGM
$17.68¢8 838
#016
PISTON SET, FR. MASTER CYLINDER
$21.21¢10 606
#017
LEVER ASSY., R. HANDLE
$59.73¢29 863
#018
BOLT, FLANGE (6X14)
$2.88¢1 438
#019
BOLT, FLANGE (6X18)
$2.91¢1 456
#020
BOLT, FLANGE (6X22)
$2.81¢1 406
#021
BOLT, FLANGE (6X25)
$2.91¢1 456
#022
BOLT, HANDLE LEVER PIVOT
$11.03¢5 513
#023
BOLT, FLANGE (6X14)
$2.97¢1 487
#024
BOLT, OIL (10X22)
$8.89¢4 444
#025
NUT, CAP (6MM)
$2.76¢1 381
#026
WASHER, OIL BOLT
$4.85¢2 425
#027
CIRCLIP
$3.10¢1 550
#028
CLIP, CABLE (12MM)
$2.88¢1 438
#029
CLIP, CONNECTOR (BLACK)
$4.45¢2 225
#030
SCREW, FLAT (4X12)
$1.16¢581
#030
SCREW, FLAT (4X12)
$1.16¢581
#031
SCREW-WASHER (4X12)
$1.72¢862
#031
SCREW-WASHER (4X12)
$1.72¢862
#032
NUT, CAP (6MM)
$1.99¢994
