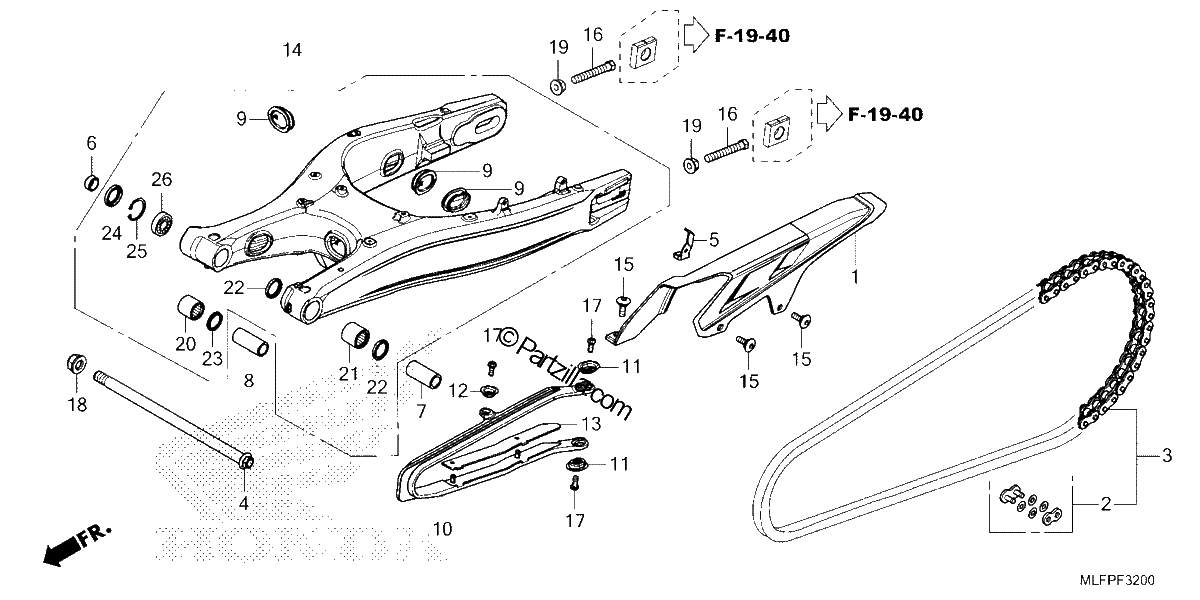

SWINGARM
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
CASE, DRIVE CHAIN
$49.04¢24 518
#002
MASTER LINK (RK) (NOT AVAILABLE)
No Disponible
#003
CHAIN, DRIVE (RK525MRO-130-LJFZ) (RK) (STANDARD LINK 122L) (NOT AVAILABLE)
$207.71¢103 857
#004
BOLT, SWINGARM PIVOT
$64.11¢32 056
#005
STAY, CHAIN CASE
$9.28¢4 640
#006
COLLAR A, PIVOT
$6.14¢3 070
#007
COLLAR, L. PIVOT DISTANCE
$20.31¢10 154
#008
COLLAR, R. PIVOT DISTANCE
$19.76¢9 878
#009
CAP, Rear SWINGARM
$3.15¢1 576
#010
SLIDER, CHAIN
$68.03¢34 017
#011
WASHER, CHAIN SLIDER
$3.06¢1 529
#012
WASHER, CHAIN SLIDER
$3.81¢1 903
#013
RUBBER, CHAIN SLIDER
$12.73¢6 365
#014
SWINGARM SUB-Assembly., Rear.
$1187.14¢593 572
#015
BOLT, SOCKET (6X18)
$3.77¢1 886
#016
BOLT, HEX. (8X50)
$2.59¢1 294
#017
SCREW, PAN (5X12)
$2.22¢1 110
#018
NUT, SPECIAL U (16MM)
$9.97¢4 985
#018
NUT, U (16MM)
$9.97¢4 985
#019
NUT, HEX. (8MM)
$3.79¢1 897
#020
BEARING, NEEDLE (24X31X28)
$18.23¢9 114
#021
BEARING, NEEDLE (NTN)
$28.69¢14 346
#022
DUST SEAL (25X33X4)
$7.76¢3 881
#023
OIL SEAL (24X31X3.5)
$11.24¢5 618
#024
DUST SEAL (23X35X5)
$9.73¢4 865
#025
CIRCLIP, INNER (35MM)
$2.30¢1 150
#026
BEARING, RADIAL BALL (6003)
$15.12¢7 561
