TRANSMISSION

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

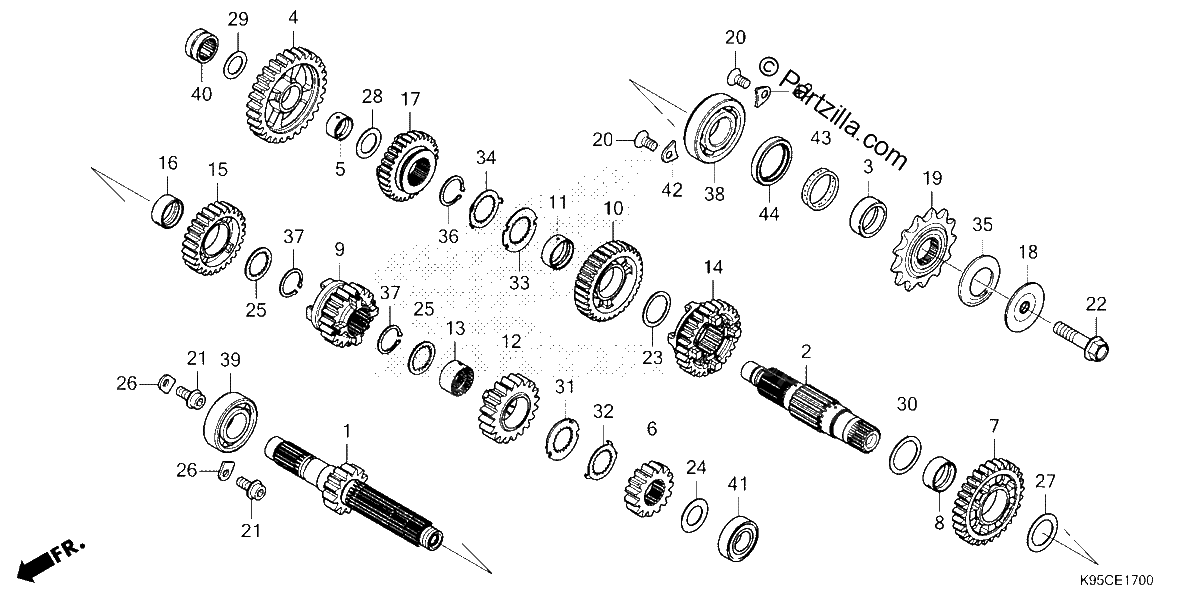

Diagrama de TRANSMISSION

Repuestos

#001
23210-K95-AA0
MAINSHAFT (13T)
$179.97¢89 988
1
#002
23221-K95-AA0
COUNTERSHAFT
$172.25¢86 125
1
#003
23225-MEN-730
COLLAR, COUNTERSHAFT
$16.75¢8 375
1
#004
23411-K95-AA0
GEAR, COUNTER FIRST (31T)
$121.89¢60 944
1
#005
23413-KRN-A40
COLLAR (17MM)
$9.57¢4 788
1
#006
23421-K95-AA0
GEAR, MAINSHAFT SECOND (15T)
$62.70¢31 350
1
#007
23431-K95-AA0
GEAR, COUNTERSHAFT SECOND (29T)
$115.86¢57 931
1
#008
23432-MKE-A00
COLLAR (27X30X13.2)
$21.44¢10 719
1
#009
23441-K95-AG0
GEAR, MAINSHAFT THIRD (20T)
$93.36¢46 681
1
#010
23451-K95-AA0
GEAR, COUNTER THIRD (32T)
$121.89¢60 944
1
#011
23452-K95-AA0
COLLAR (25X28X11)
$15.90¢7 950
1
#012
23461-K95-AA0
GEAR, MAINSHAFT FOURTH (20T)
$112.17¢56 088
1
#013
23462-K95-AA0
COLLAR, SPLINE (22X12.2)
$17.70¢8 850
1
#014
23471-K95-AG0
GEAR, COUNTERSHAFT FOURTH (27T)
$98.46¢49 231
1
#015
23481-K95-AA0
GEAR, MAINSHAFT FIFTH (26T)
$115.86¢57 931
1
#016
23482-K95-AA0
COLLAR (22X25X10)
$16.60¢8 300
1
#017
23491-K95-AA0
GEAR, COUNTERSHAFT FIFTH (30T)
$133.44¢66 719
1
#018
23802-KSC-670
COLLAR, DRIVE SPROCKET
$17.05¢8 525
1
#019
23802-MEN-730
SPROCKET, DRIVE (13T)
$46.21¢23 106
1
#020
90003-KRN-670
SCREW, SPECIAL FLAT (6X12)
$2.63¢1 313
1
#021
90071-MF5-000
BOLT, FLANGE SOCKET (6X14)
$4.06¢2 031
1
#022
90112-413-000
BOLT, UBS (8X33)
$4.68¢2 338
1
#023
90401-HP1-670
WASHER (25X32X1.0)
$3.65¢1 825
1
#024
90403-HN8-000
WASHER, SPECIAL (17MM)
$3.65¢1 825
1
#025
90404-K95-AA0
WASHER, THRUST INVOLUTE (22X21X1.0)
$3.11¢1 556
1
#026
90441-KRM-840
PLATE, BEARING HOLDER
$0.78¢388
1
#027
90445-MKE-A00
WASHER, THRUST (24.1X37X1.0)
$4.40¢2 200
1
#028
90446-357-000
WASHER, THRUST (17.2MM)
$4.36¢2 181
1
#029
90446-K95-A20
WASHER (16X26X1.0)
$2.39¢1 194
1
#030
90446-ML3-870
WASHER, THRUST (27.2X35)
$5.90¢2 950
1
#031
90453-K95-A20
WASHER, SPLINE (22MM)
$4.00¢2 000
1
#032
90454-K95-A20
WASHER, LOCK (22MM)
$4.30¢2 150
1
#033
90461-MEN-A70
WASHER, SPLINE (25MM)
$3.98¢1 988
1
#034
90462-MEN-A70
WASHER, LOCK (25MM)
$4.26¢2 131
1
#035
90501-KSC-670
WASHER, SPRING (24MM)
$5.16¢2 581
1
#036
90602-259-010
CIRCLIP, OUTER (25MM)
$7.46¢3 731
1
#037
90602-360-000
SET-RING (22MM)
$12.44¢6 219
1
#038
91005-MKE-A01
BEARING, RADIAL BALL (24X56X14)
$37.21¢18 606
1
#039
91006-HM7-003
BEARING, RADIAL BALL (22X47X14)
$42.27¢21 138
1
#040
91006-K95-A21
BEARING, NEEDLE (16X24X13)
$15.94¢7 969
1
#041
91006-MKE-A51
BEARING, RADIAL BALL (17X40X11)
$26.63¢13 313
1
#042
91012-KA3-710
PLATE, COUNTERSHAFT BEARING
$5.91¢2 956
1
#043
91201-ML3-873
D-RING (23.75MM) (ARAI)
$4.44¢2 219
1
#044
91207-ML3-871
OIL SEAL (31X40X7) (ARAI)
$11.94¢5 969
1
