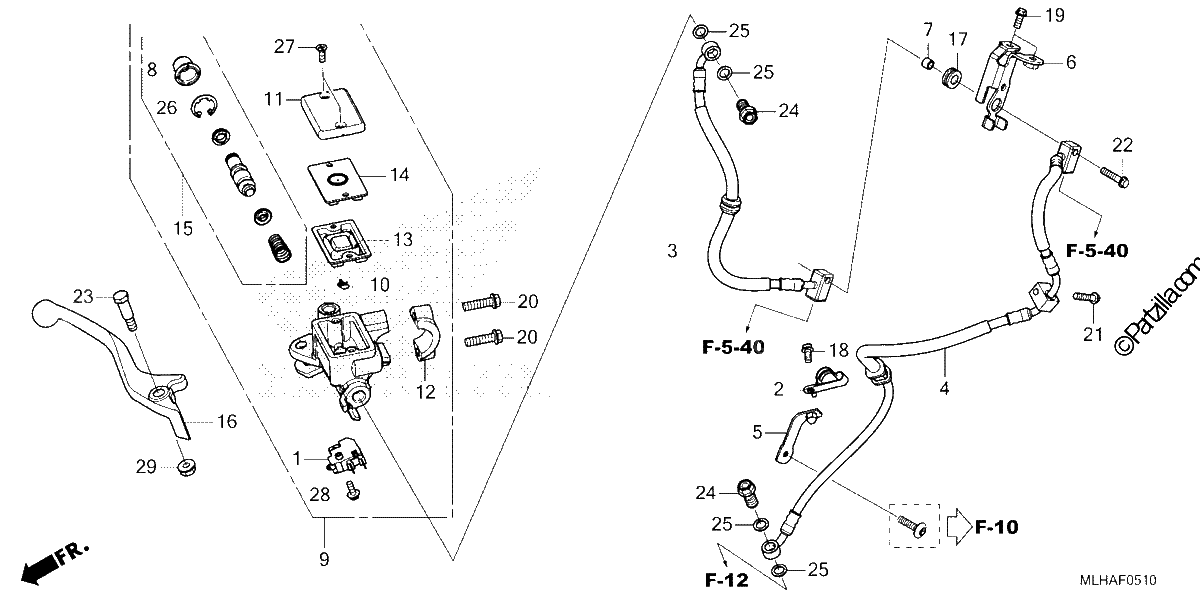

FRONT BRAKE MASTER CYLINDER CMX500A A2
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
SWITCH Assembly., Front STOP (ALPS)
$21.49¢10 744
#002
CLAMP, BRAKE HOSE
$1.99¢994
#003
HOSE A, Front BRAKE
$29.24¢14 619
#004
HOSE D, Front BRAKE
$68.40¢34 200
#005
STAY, Front BRAKE HOSE
$4.90¢2 450
#006
STAY B, FR. BRAKE HOSE
$14.45¢7 225
#007
COLLAR, BRAKE HOSE STAY
$2.11¢1 056
#008
BOOT
$14.24¢7 119
#009
MASTER CYLINDER SUB-ASSY., FR. BRAKE (COO) (NISSIN)
$157.13¢78 563
#009
MASTER CYLINDER SUB-ASSY., FR.BRAKE (NISSIN)
$157.13¢78 563
#010
PROTECTOR
$5.20¢2 600
#011
CAP, MASTER CYLINDER (COO)
$5.04¢2 519
#011
CAP, MASTER CYLINDER
$5.04¢2 519
#012
HOLDER, MASTER CYLINDER
$15.74¢7 869
#013
DIAPHRAGM
$10.88¢5 438
#014
PLATE, DIAPHRAGM
$2.92¢1 463
#015
MASTER CYLINDER SET
$46.40¢23 200
#016
LEVER, Right HANDLEBAR
$13.45¢6 725
#017
GROMMET, MAIN PIPE COVER
$1.25¢625
#018
BOLT, FLANGE (6X10)
$5.76¢2 881
#019
BOLT, FLANGE (6X12)
$2.99¢1 494
#020
BOLT, FLANGE (6X22)
$2.99¢1 494
#021
BOLT, FLANGE (6X28)
$1.27¢638
#022
BOLT, FLANGE (6X32)
$1.21¢606
#023
BOLT, HANDLE LEVER PIVOT
$7.88¢3 938
#024
BOLT, OIL (10X22)
$8.89¢4 444
#025
WASHER, OIL BOLT
$4.85¢2 425
#026
CIRCLIP
$3.10¢1 550
#027
SCREW, FLAT (4X12)
$1.16¢581
#027
SCREW, FLAT (4X12)
$1.16¢581
#028
SCREW-WASHER (4X12)
$1.72¢862
#028
SCREW-WASHER (4X12)
$1.72¢862
#029
NUT, FLANGE (6MM)
$0.80¢400
