FRONT FORK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

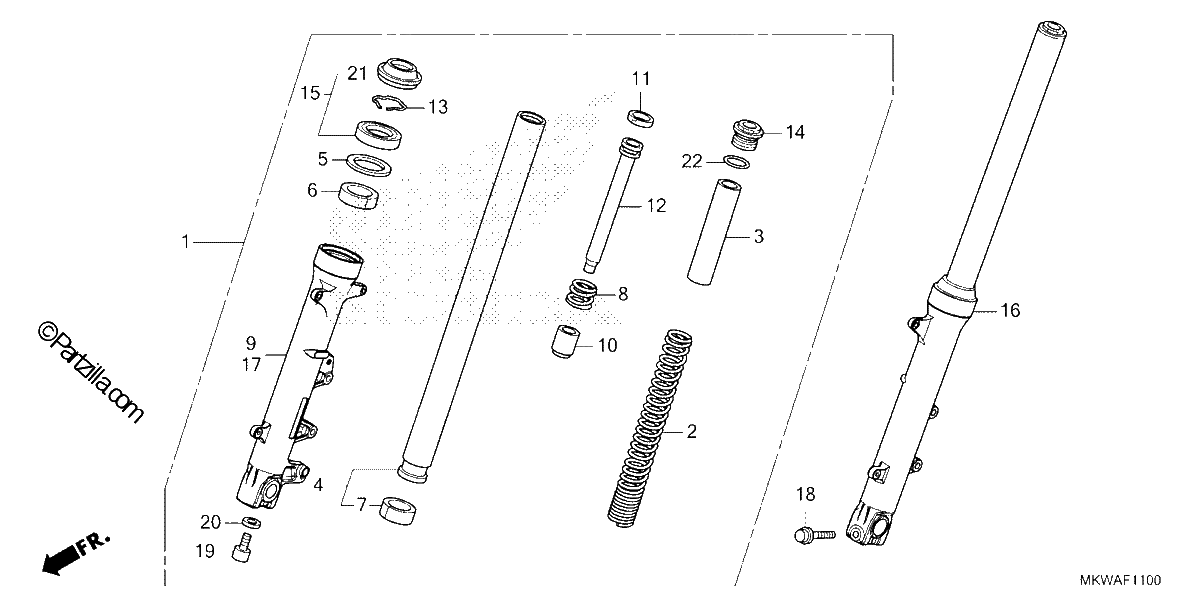

Diagrama de FRONT FORK

Repuestos

#001
51400-MKW-D71
FORK Assembly., Right Front.
$681.39¢340 694
1
#002
51401-MKW-D01
SPRING, FR. FORK
$109.84¢54 919
1
#003
51402-MGZ-J01
COLLAR, SPRING
$20.74¢10 369
1
#004
51410-MKW-D71
PIPE, Front FORK
$294.24¢147 119
1
#005
51412-MB4-003
RING, BACK-UP (SHOWA)
$11.29¢5 644
1
#006
51414-MFJ-A51
BUSH, GUIDE
$8.80¢4 400
1
#007
51415-MFJ-A51
BUSH, SLIDER
$8.80¢4 400
1
#008
51416-MKL-D81
SPRING, FR. REBOUND
$7.75¢3 875
1
#009
51420-MKW-D71
CASE, Right. (LOWER)
$310.55¢155 275
1
#010
51432-MV4-003
PIECE, OIL LOCK
$19.14¢9 569
1
#011
51437-MKL-D81
RING, PISTON
$7.44¢3 719
1
#012
51440-MKW-D71
PIPE, SEAT
$36.70¢18 350
1
#013
51447-KA4-711
RING, OIL SEAL STOPPER (SHOWA)
$5.47¢2 738
1
#014
51454-MKL-D81
BOLT, FR. FORK
$40.13¢20 063
1
#015
51490-MKL-D81
SEAL SET, FR. FORK
$29.18¢14 588
1
#016
51500-MKW-D71
FORK Assembly., L Front.
$681.39¢340 694
1
#017
51520-MKW-D71
CASE, Left (LOWER)
$310.55¢155 275
1
#018
90109-MR7-000
BOLT, FLANGE (8X45)
$5.99¢2 994
1
#019
90116-KV3-701
BOLT, SOCKET (8MM) (SHOWA)
$4.71¢2 356
1
#020
90544-283-000
WASHER, SPECIAL (8MM) (SHOWA)
$3.65¢1 825
1
#021
91251-MKL-D81
DUST SEAL
$12.39¢6 194
1
#022
91356-KF0-003
O-RING (33.2X2.4)
$4.56¢2 281
1
