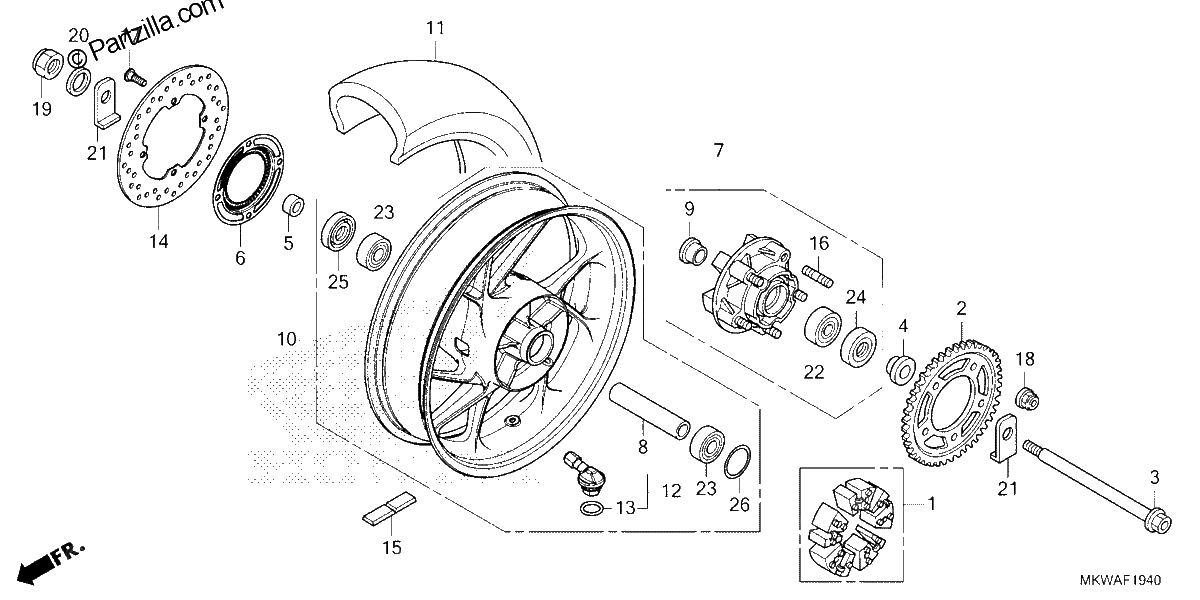

REAR WHEEL
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
DAMPER SET, WHEEL
$61.81¢30 906
#002
SPROCKET, FINAL DRIVEN (41T)
$77.96¢38 979
#003
AXLE, Rear WHEEL
$56.33¢28 163
#004
COLLAR, L. RR. WHEEL SIDE
$25.13¢12 564
#005
COLLAR, RR. BRAKE SIDE
$16.69¢8 343
#006
RING, Rear PULSER
$86.87¢43 436
#007
FLANGE SUB-Assembly., Rear DRIVEN
$307.82¢153 910
#008
COLLAR, Rear AXLE DISTANCE
$24.09¢12 046
#009
COLLAR B, RR. WHEEL DISTANCE
$20.80¢10 402
#010
WHEEL SUB-Assembly., Rear.
$732.91¢366 453
#011
TIRE, Rear. (160/60ZR17 M/C 69W)(DUNLOP)
$230.82¢115 408
#011
TIRE(160/60 ZR17)
$224.62¢112 309
#012
VALVE ASSY., CLAMP IN
$17.71¢8 855
#013
O-RING
$1.81¢903
#014
DISK, Rear BRAKE
$238.39¢119 197
#015
WEIGHT, BALANCE (20G)
$4.81¢2 403
#015
WEIGHT, BALANCE (15G)
$4.89¢2 444
#015
WEIGHT, BALANCE (10G)
No Disponible
#016
BOLT, STUD (12X25)
$4.47¢2 237
#017
BOLT, BRAKE DISK (8X24)
$6.92¢3 461
#017
BOLT, FR. DISK (8X24)
$6.76¢3 381
#017
BOLT, FR. DISK (8X24) (SAGA)
$6.59¢3 295
#017
BOLT, BRAKE DISK (8X24) (TSUKIBOSHI)
$6.92¢3 461
#018
NUT U, FLANGE (12MM)
$4.37¢2 185
#019
NUT, U (18MM)
$7.60¢3 801
#020
WASHER (18X32X2)
$4.99¢2 496
#021
WASHER, RR. SWINGARM
$5.46¢2 731
#022
BEARING, ANGULAR BALL (22X50X15)
$40.69¢20 344
#023
BEARING, RADIAL BALL (6204UU) (NSK)
$16.33¢8 165
#024
DUST SEAL (30X50X7)
$13.73¢6 865
#025
DUST SEAL (30X47X7.5)
$17.03¢8 516
#026
O-RING (55X2)
$3.36¢1 679
