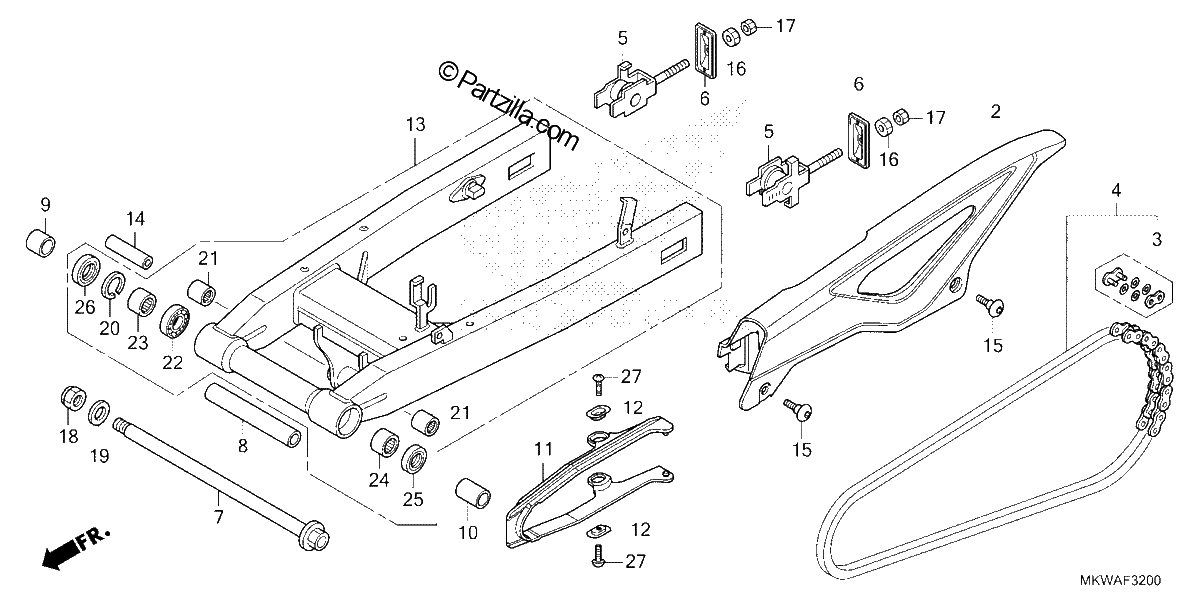

SWINGARM
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#002
CASE, DRIVE CHAIN
$147.64¢73 819
#003
MASTER LINK (RK EXCEL)
$17.02¢8 513
#003
MASTER LINK (DAIDO)
$17.30¢8 650
#004
CHAIN, DRIVE (DID520V0-120ZB) (DAIDO) (STANDARD LINK 112L) (STANDARD LINK 114L)
$297.69¢148 844
#004
CHAIN, DRIVE (RK520KHO-120LJFZ) (RK JAPAN) (STANDARD LINK 112L) (STANDARD LINK 114L)
$293.24¢146 619
#005
ADJUSTER, CHAIN
$36.41¢18 206
#006
CAP, SWINGARM END
$23.05¢11 525
#007
BOLT, SWINGARM PIVOT
$45.06¢22 531
#008
COLLAR, PIVOT DISTANCE CENTER
$44.33¢22 163
#009
COLLAR, R. PIVOT DISTANCE
$24.00¢12 000
#010
COLLAR, L PIVOT DISTANCE
$25.90¢12 950
#011
SLIDER, CHAIN
$49.86¢24 931
#012
WASHER, CHAIN SLIDER
$3.33¢1 663
#013
SWINGARM SUB-Assembly., Rear.
$1492.02¢746 012
#014
COLLAR B, CUSHION ARM
$15.06¢7 531
#015
SCREW, SPECIAL (6X14)
$3.49¢1 744
#016
NUT, HEX. (8MM)
$1.11¢556
#017
NUT, HEX. (8MM)
$0.99¢494
#018
NUT, U (18MM)
$8.26¢4 131
#019
WASHER (18X32X2)
$5.42¢2 713
#020
CIRCLIP (INNER) (37)
$4.04¢2 019
#021
BEARING, NEEDLE (17X24X30)
$11.44¢5 719
#022
BEARING, RADIAL BALL (20X37X9)
$12.89¢6 444
#023
BEARING, NEEDLE (30X37X20)
$24.74¢12 369
#024
BEARING, NEEDLE
$29.82¢14 913
#025
DUST SEAL (28X37X4)
$7.70¢3 850
#026
DUST SEAL (30X37X4)
$10.15¢5 075
#027
SCREW, TAPPING (5X12)
$1.16¢581
