FRAME

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

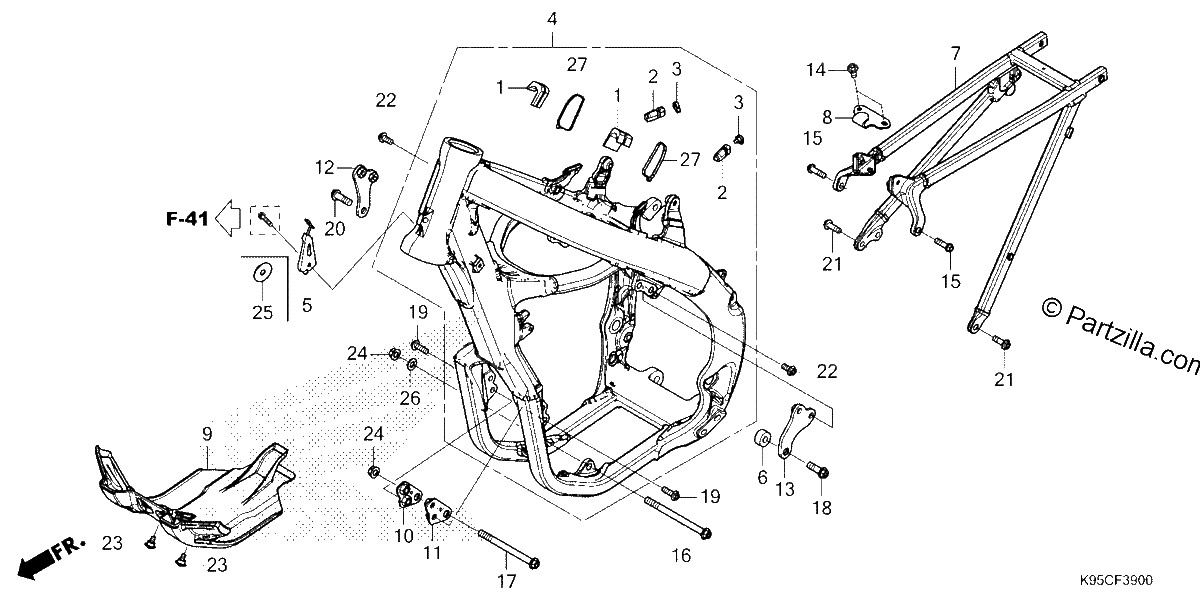

Diagrama de FRAME

Repuestos

#001
17522-MEN-730
RUBBER, TANK SIDE MOUNTING
$7.35¢3 674
1
#002
17526-MKE-AF0
RUBBER, RR. TANK MOUNTING
$5.20¢2 599
1
#003
35701-MG9-950
BAND (BLACK 3.5X140)
$2.36¢1 179
1
#004
50010-K95-AG0
FRAME SET
$2164.96¢1 082 478
1
#006
50194-K95-AA0
COLLAR, ENGINE HANGER
$8.34¢4 169
1
#007
50200-K95-AG0
FRAME, Rear.
$491.81¢245 904
1
#008
50210-K95-AG0
STAY, TANK HOOK
$8.18¢4 088
1
#009
50357-MKE-AF0
GUARD, ENGINE
$30.75¢15 375
1
#010
50405-K95-AA0
PLATE, Right Front HANGER
$13.29¢6 647
1
#011
50406-K95-AA0
PLATE, L Front HANGER
$13.29¢6 647
1
#012
50407-K95-AA0
PLATE, Right HEAD HANGER
$23.24¢11 621
1
#013
50408-K95-AA0
PLATE, L HEAD HANGER
$27.81¢13 904
1
#014
90025-GHB-620
BOLT, FLANGE (6X12)
$2.64¢1 322
1
#015
90101-KZ3-J50
BOLT, FLANGE (8X24)
$3.15¢1 576
1
#016
90102-MKE-AF0
BOLT, FLANGE (10X134) (SH)
$8.28¢4 140
1
#017
90104-MKE-AF0
BOLT, FLANGE (10X121.5) (SH)
$8.76¢4 382
1
#018
90105-MEN-A30
BOLT, FLANGE (10X37)
$4.06¢2 030
1
#019
90109-MKE-A00
BOLT, FLANGE (8X25) (SH)
$3.36¢1 679
1
#020
90122-MEN-730
BOLT (10X24)
$2.75¢1 374
1
#021
90122-MKE-AF0
BOLT, FLANGE (8X24)
$3.79¢1 897
1
#022
90123-MEN-730
BOLT (8X18)
$2.33¢1 167
1
#023
90126-MKE-A00
BOLT, SPECIAL (6MM)
$3.42¢1 708
1
#024
90302-KZ3-J40
NUT, FLANGE (10MM)
$3.22¢1 610
1
#025
90403-KA3-830
WASHER, RADIATOR MOUNTING
$2.79¢1 397
1
#026
90410-HC4-000
WASHER (10MM)
$4.25¢2 128
1
#027
91560-MS8-600
TY-RAP, CABLE
$2.81¢1 403
1
