FRONT FORK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

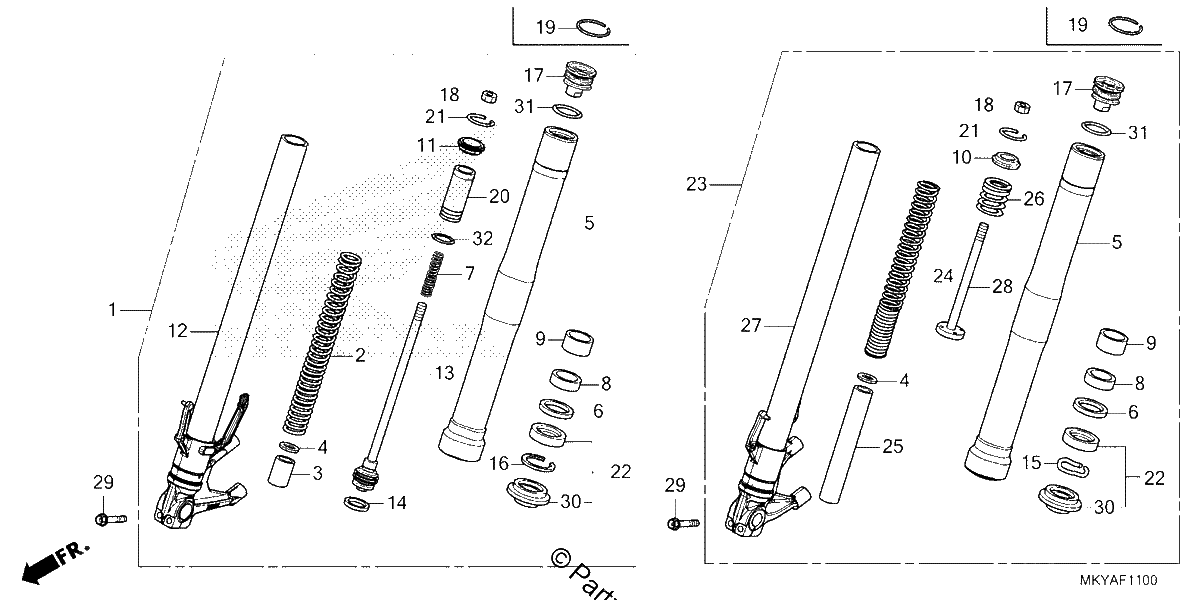

Diagrama de FRONT FORK

Repuestos

#001
51400-MKY-E01
FORK Assembly., Right Front.
$590.89¢295 447
1
#002
51401-MKY-E01
SPRING, Right Front FORK
$38.81¢19 406
1
#003
51402-MKY-E01
COLLAR, SPRING
$2.06¢1 029
1
#004
51404-MKP-DN1
JOINT, SPRING
$3.71¢1 857
1
#005
51410-MKY-DP1
TUBE (OUTER)
$307.99¢153 997
1
#006
51412-MB4-003
RING, BACK-UP (SHOWA)
$10.38¢5 192
1
#007
51412-MKY-D51
SPRING, Right REBOUND
$3.24¢1 621
1
#008
51414-MFJ-A51
BUSH, GUIDE
$8.10¢4 048
1
#009
51415-MFJ-A51
BUSH, SLIDER
$8.10¢4 048
1
#010
51419-K94-T01
SEAT, STOPPER
$10.95¢5 474
1
#011
51419-MKY-D51
SEAT, R. STOPPER
$7.60¢3 801
1
#012
51425-MKY-E01
PIPE, Right SLIDE
$357.68¢178 842
1
#013
51426-MKY-E01
ROD, PISTON
$59.25¢29 624
1
#014
51437-MKY-D51
RING, PISTON
$1.64¢822
1
#015
51447-KA4-711
RING, OIL SEAL STOPPER (SHOWA)
$5.04¢2 519
1
#016
51447-MB4-003
CIRCLIP (INNER)
$5.19¢2 593
1
#017
51450-K98-J61
BOLT, Front FORK
$92.26¢46 132
1
#018
51451-MKY-D51
NUT, HEX.
$16.21¢8 108
1
#019
51455-MEE-D01
RING, STOPPER
$3.13¢1 564
1
#020
51455-MKY-E01
CASE, ROD GUIDE
$57.58¢28 790
1
#021
51456-K94-T01
RING, STOPPER
$2.64¢1 322
1
#022
51490-MKL-D81
SEAL SET, FR. FORK
$26.84¢13 420
1
#023
51500-MKY-E01
FORK Assembly., L Front.
$551.62¢275 810
1
#024
51501-MKY-E01
SPRING, L Front FORK
$30.54¢15 272
1
#025
51502-MKY-E01
COLLAR B, SPRING
$6.13¢3 065
1
#026
51512-MKY-D51
SPRING, L. REBOUND
$5.36¢2 680
1
#027
51525-MKY-E01
PIPE, L SLIDE
$359.80¢179 900
1
#028
51526-MKY-D51
ROD
$16.46¢8 228
1
#029
90107-MGE-000
BOLT, FLANGE (8X40)
$3.15¢1 576
1
#030
91251-MKL-D81
DUST SEAL
$11.40¢5 698
1
#031
91258-MEE-D01
O-RING (39.7X2.4)
$2.51¢1 254
1
#032
91356-KF0-003
O-RING (33.2X2.4)
$4.20¢2 099
1
