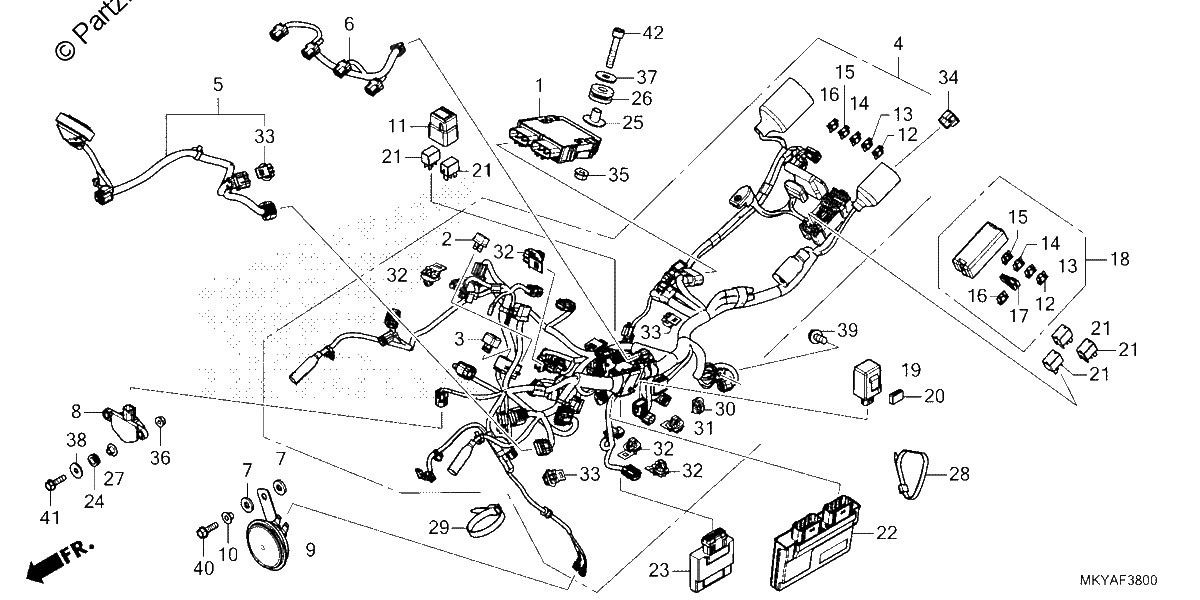

WIRE HARNESS
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
RECTIFIER ASSY., REGULATOR
$220.61¢110 306
#002
RECTIFIER Assembly., SILICON (SHINDENGEN)
$34.49¢17 244
#003
RECTIFIER, SILICON
$30.66¢15 331
#004
WIRE HARNESS
$890.39¢445 194
#005
SUB-HARNESS, Front.
$45.49¢22 744
#006
SUB-HARNESS, INJECTOR
$25.04¢12 519
#007
RUBBER, TAILLIGHT BRACKET
$3.24¢1 619
#008
SENSOR ASSY., BANK ANGLE (M6)
$139.65¢69 825
#009
HORN (HIGH)
$45.09¢22 544
#010
COLLAR, HORN SETTING
$0.99¢494
#011
SUSPENSION, RELAY CASE (2P)
$5.13¢2 563
#012
FUSE, BLADE (7.5A)
$3.76¢1 881
#013
FUSE, BLADE (10A)
$3.76¢1 881
#014
FUSE, BLADE (15A)
$4.80¢2 400
#015
FUSE, BLADE (20A)
$4.80¢2 400
#016
FUSE, BLADE (30A)
$3.11¢1 556
#017
PULLER, MINI FUSE
$4.51¢2 256
#018
COVER Assembly., POWER BOX
$12.34¢6 169
#019
RELAY, TURN SIGNAL (LED)(ESS)
$63.89¢31 944
#020
SUSPENSION, TURN SIGNAL RELAY (MITSUBA)
$3.65¢1 825
#021
RELAY, POWER (MICRO ISO 4P)
$16.76¢8 381
#022
PGM-FI UNIT
$492.25¢246 125
#023
CONTROL UNIT, CLUTCH
$252.79¢126 394
#024
RUBBER, SIDE COVER
$2.50¢1 250
#025
COLLAR, PILLION SEAT MOUNTING
$5.20¢2 600
#026
RUBBER, PILLION SEAT MOUNTING
$5.76¢2 881
#027
COLLAR, BANK ANGLE SENSOR
$2.95¢1 475
#029
BAND, WIRE (165MM) (BLACK)
$3.65¢1 825
#030
CLIP, CONNECTOR (DARK GRAY)
$12.30¢6 150
#031
CLIP, CONNECTOR (DARK BLUE)
$7.44¢3 719
#032
CLIP, CONNECTOR (DARK BROWN)
$5.02¢2 512
#033
CLIP, CONNECTOR (BLACK)
$4.45¢2 225
#034
CAP, DUMMY (6P) (RED)
$28.94¢14 469
#035
NUT, FLANGE (6MM)
$1.86¢931
#036
NUT, FLANGE (6MM)
$0.80¢400
#037
WASHER, PLAIN (6MM)
$0.93¢463
#038
WASHER, PLAIN (6MM)
$1.00¢500
#039
BOLT, FLANGE (6X14)
$2.09¢1 044
#040
BOLT, FLANGE (6X20)
$2.09¢1 044
#041
BOLT, FLANGE (6X22)
$2.21¢1 106
#042
BOLT, SOCKET (6X32)
$2.38¢1 188
