CRANKCASE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

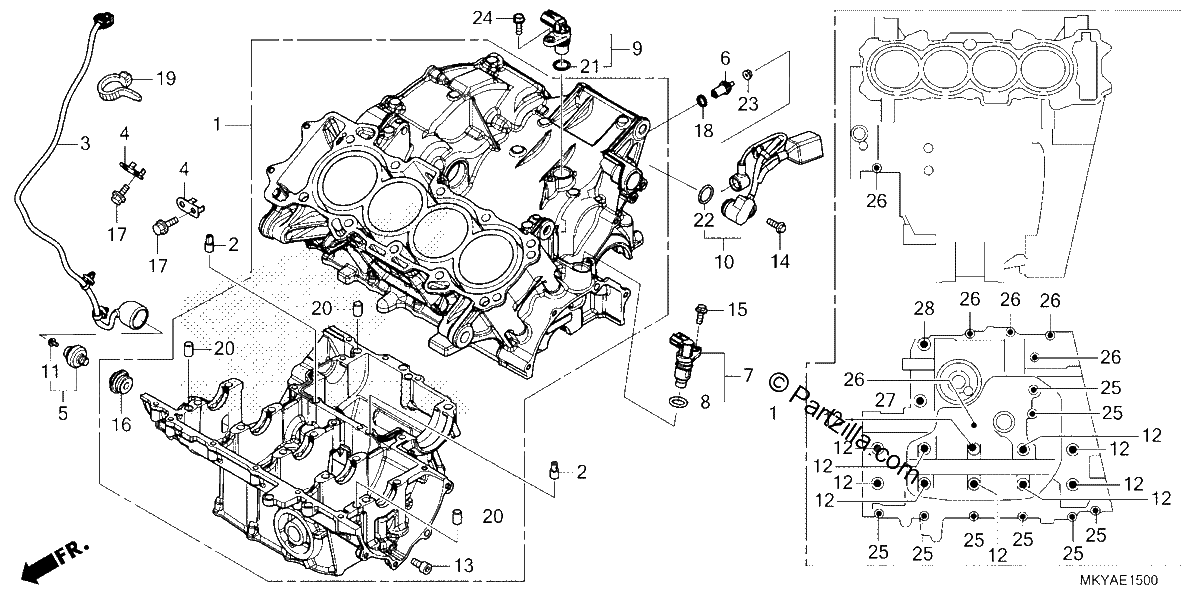

Diagrama de CRANKCASE

Repuestos

#001
11000-MKY-E80
CRANKCASE SET
$1369.54¢684 768
1
#002
11104-MJE-D00
ORIFICE (1.2MM)
$3.10¢1 553
1
#003
32102-MKN-D10
SUB-HARNESS, OIL PRESSURE
$9.02¢4 508
1
#004
32159-MJE-D00
STAY, HARNESS CLIP
$1.28¢638
1
#005
35500-MEH-661
SWITCH ASSY., OIL PRESSURE (DENSO)
$57.89¢28 946
1
#006
35600-MKF-D41
SWITCH ASSY., NEUTRAL
$25.62¢12 811
1
#007
37500-K0Z-D11
SENSOR Assembly., CRANK
$32.56¢16 278
1
#008
37501-K2Y-J01
O-RING
$1.17¢586
1
#009
37700-MJE-D01
SENSOR Assembly., SPEED (TDK-EPC)
$30.41¢15 203
1
#010
38800-MKY-E21
SENSOR Assembly., ANGLE (350DEG)
$85.96¢42 981
1
#011
90002-PA6-003
BOLT-WASHER (4X8) (DENSO)
$6.93¢3 467
1
#012
90004-MKY-E21
BOLT, UBS (8X98)
$2.00¢1 001
1
#013
90010-MEL-000
BOLT, SOCKET (8X12)
$2.24¢1 121
1
#014
90011-MGE-D00
BOLT, KNOCK (6MM)
$3.42¢1 708
1
#015
90026-GHB-640
BOLT, FLANGE (6X16)
$2.54¢1 271
1
#016
90048-MFL-000
BOLT, SEALING (22MM)
$11.26¢5 629
1
#017
90101-MCZ-D00
BOLT, FLANGE (6X14)
$1.77¢886
1
#018
90443-MJ6-000
WASHER, NEUTRAL
$2.28¢1 138
1
#019
90651-KV6-003
BAND, WIRE (165MM) (BLACK)
$3.36¢1 679
1
#020
90701-MV9-670
PIN, DOWEL (10X16)
$4.80¢2 398
1
#021
91303-KF0-003
O-RING (14.8X2.4) (ARAI)
$2.09¢1 047
1
#022
91310-MGE-D01
O-RING (16.5X2.5)
$5.69¢2 846
1
#023
94050-04000
NUT, FLANGE (4MM)
$1.45¢724
1
#024
95701-06018-00
BOLT, FLANGE (6X18)
$1.92¢960
1
#025
95701-06035-00
BOLT, FLANGE (6X35)
$2.22¢1 110
1
#026
95701-06050-00
BOLT, FLANGE (6X50)
$2.45¢1 225
1
#027
95701-08045-00
BOLT, FLANGE (8X45)
$1.74¢868
1
#028
95701-10075-00
BOLT, FLANGE (10X75)
$2.89¢1 443
1
