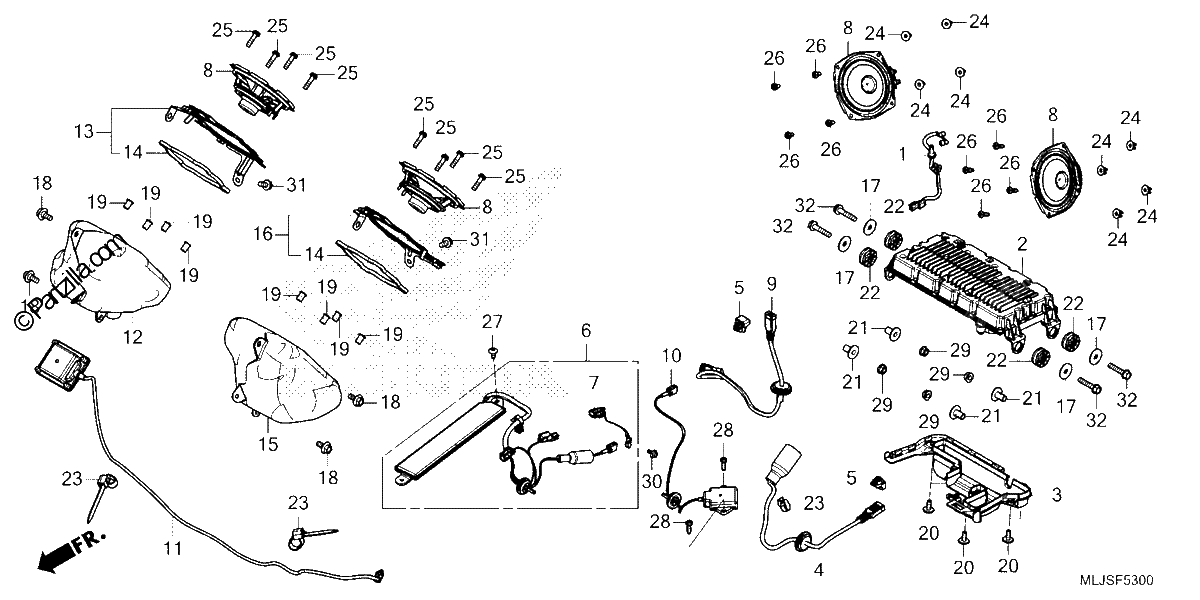

AUDIO UNIT
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#002
AUDIO UNIT (IVI)
$4854.36¢2 427 181
#003
COVER, UNIT (IVI)
$10.93¢5 463
#004
CORD Assembly., USB (TYPE-C)
$94.74¢47 369
#005
CLIP, USB CONNECTOR HOLDER (A)
$1.51¢756
#006
ANTENNA Assembly., RADIO
$163.84¢81 919
#007
SUB-HARNESS, RADIO ANTENNA GROUND
$9.94¢4 969
#008
SPEAKER UNIT
$265.74¢132 869
#010
ANTENNA ASSY., BLUETOOTH (RR)
$111.79¢55 894
#011
ANTENNA Assembly., GNSS
$180.76¢90 381
#012
BOX, R. SPEAKER
$89.32¢44 662
#013
PLATE, R. SPEAKER BOX
$38.21¢19 106
#014
CUSHION, SPEAKER
$22.76¢11 381
#015
BOX, L. SPEAKER
$85.43¢42 713
#016
PLATE, L. SPEAKER BOX
$32.50¢16 250
#017
WASHER, SEAT MOUNTING
$3.91¢1 956
#018
BOLT, FLANGE (6MM)
$3.65¢1 825
#019
NUT, COWL SETTING (5MM)
$5.47¢2 738
#020
BOLT, SOCKET (5X12)
$3.50¢1 750
#021
COLLAR (6.3X14)
$5.42¢2 713
#022
RUBBER, AUDIO MOUNT
$3.26¢1 631
#023
BAND, WIRE (95MM)
$3.77¢1 888
#025
SCREW-WASHER (5X20)
$1.11¢556
#027
SCREW, TAPPING (5X12)
$1.06¢531
#028
SCREW, TAPPING (5X16)
$0.84¢419
#029
NUT, FLANGE (6MM)
$0.80¢400
#030
BOLT, FLANGE (6X10)
$1.63¢813
#031
BOLT, FLANGE (6X12)
$1.99¢994
#032
BOLT, FLANGE (6X30)
$1.21¢606
