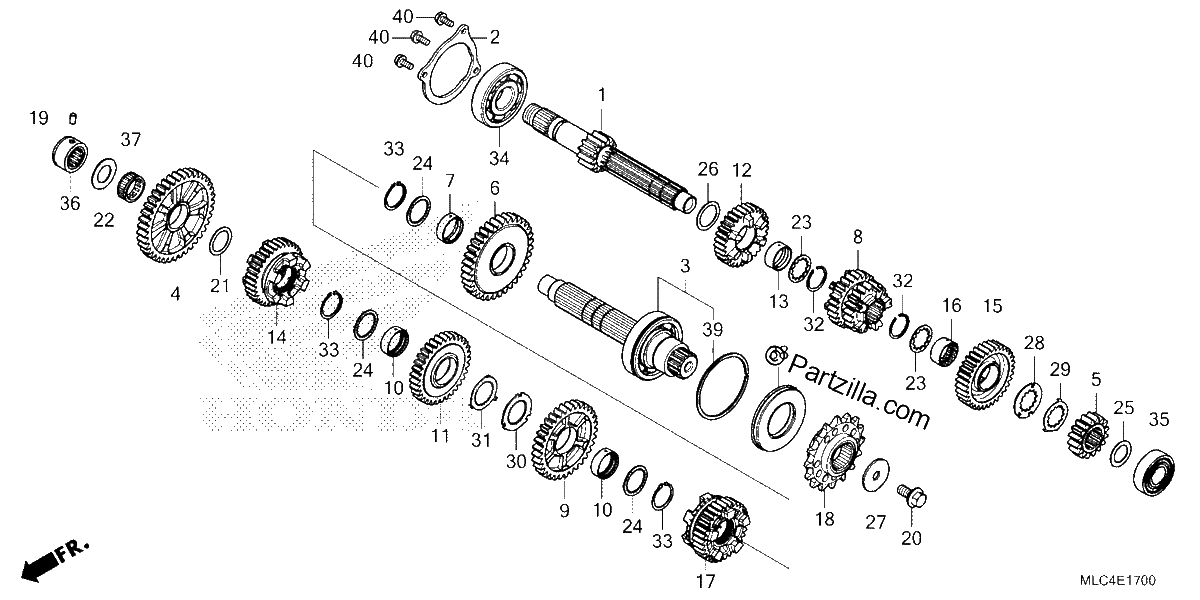

TRANSMISSION
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
MAINSHAFT (13T)
$158.24¢79 119
#002
PLATE, MAINSHAFT BEARING SETTING
$5.88¢2 938
#003
COUNTERSHAFT
$179.39¢89 694
#004
GEAR, COUNTERSHAFT FIRST (39T)
$116.13¢58 063
#005
GEAR, MAINSHAFT SECOND (16T)
$56.56¢28 281
#006
GEAR, COUNTERSHAFT SECOND (35T)
$116.13¢58 063
#007
COLLAR (28MM)
$25.85¢12 925
#008
GEAR, MAINSHAFT THIRD & FOURTH(20T/25T)
$137.19¢68 594
#009
GEAR, COUNTERSHAFT THIRD (33T)
$110.49¢55 244
#010
COLLAR, SPLINE (28X31X10)
$18.08¢9 038
#011
GEAR, COUNTERSHAFT FOURTH (33T)
$110.49¢55 244
#012
GEAR, MAINSHAFT FIFTH (31T)
$112.40¢56 200
#013
COLLAR (25X28X12)
$17.24¢8 619
#014
GEAR, COUNTERSHAFT FIFTH (34T)
$125.71¢62 856
#015
GEAR, MAINSHAFT SIXTH (33T)
$112.40¢56 200
#016
COLLAR, SPLINE (25X28X13)
$34.91¢17 456
#017
GEAR, COUNTERSHAFT SIXTH (31T)
$125.71¢62 856
#018
SPROCKET, DRIVE (16T)
$46.34¢23 169
#019
PIN, GEARSHIFT FORK GUIDE
$5.11¢2 556
#020
BOLT, SPECIAL (10MM)
$8.89¢4 444
#021
WASHER, THRUST (24MM)
$4.44¢2 219
#022
WASHER, THRUST (20X35X1.5)
$3.04¢1 519
#023
WASHER, SPLINE (25X31X1.5)
$4.63¢2 313
#024
WASHER, SPLINE (28X27X1)
$4.36¢2 181
#025
WASHER, THRUST (20MM)
$3.43¢1 713
#026
WASHER, THRUST (25MM)
$3.26¢1 631
#027
WASHER (10.2MM)
$7.08¢3 538
#028
WASHER, SPLINE (25MM)
$6.89¢3 444
#029
WASHER, LOCK (25MM)
$11.99¢5 994
#030
WASHER, SPLINE (28MM)
$3.65¢1 825
#031
WASHER, LOCK (28MM)
$3.65¢1 825
#032
CIRCLIP (25MM)
$4.54¢2 269
#033
CIRCLIP (28MM)
$4.54¢2 269
#034
BEARING, RADIAL BALL SPECIAL (63/28)
$42.79¢21 394
#035
BEARING, RADIAL BALL (6204U)
$22.31¢11 156
#036
BEARING, NEEDLE (20MM) (NTN)
$56.28¢28 138
#037
BEARING, NEEDLE (24X28X10)
$14.00¢7 000
#038
OIL SEAL (39X72X8)
$14.88¢7 438
#039
RING, SNAP (72MM)
$4.81¢2 406
#040
BOLT, FLANGE (6X14)
$1.23¢613
