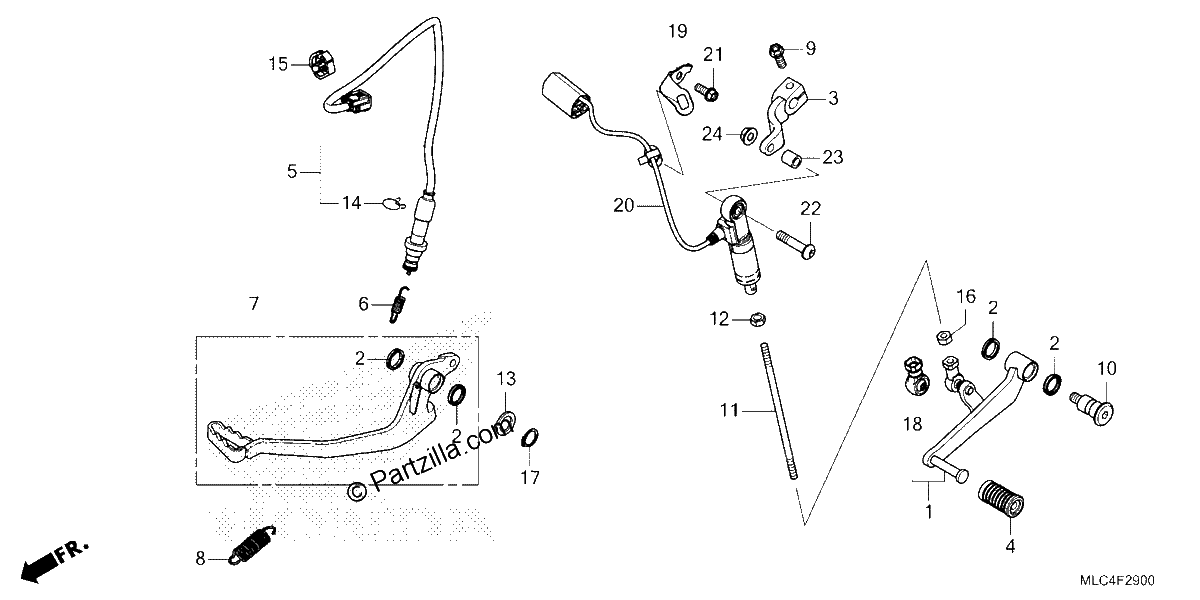

PEDAL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

Repuestos

#001

24705-MLC-D00

PEDAL, GEARSHIFT

$107.75¢53 878

#002

24706-MK3-770

RUBBER, DUST SEAL

$4.99¢2 496

#003

24711-MLC-D00

ARM, GEARSHIFT

$37.33¢18 665

#004

24781-KR3-770

RUBBER, GEARSHIFT PEDAL

$3.78¢1 892

#005

35350-MKJ-E51

SWITCH Assembly., Rear STOP

$40.02¢20 010

#006

35357-HP0-A00

SPRING, STOP SWITCH

$3.04¢1 518

#007

46500-MLC-D00

PEDAL ASSY., RR. BRAKE

$94.56¢47 282

#008

46511-MJF-A00

SPRING, BRAKE PEDAL

$7.35¢3 674

#009

90030-GHB-660

BOLT, FLANGE (6X20)

$2.59¢1 294

#010

90115-MLC-D00

BOLT, CHANGE PIVOT

$10.95¢5 474

#011

90166-MLC-D00

BOLT, TIE ROD

$12.10¢6 049

#012

90301-MGZ-J00

NUT, SPECIAL (6MM) (LEFT HAND THREAD)

$2.69¢1 346

#013

90451-GBL-870

WASHER (14MM)

$3.36¢1 679

#014

90601-KAF-003

CLIP, SWITCH COVER

$3.16¢1 581

#015

90690-MEF-800

CLAMP, HARNESS

$1.54¢771

#016

94002-06070-0S

NUT, HEX. (6MM)

$0.92¢460

#017

94511-14000

CIRCLIP, OUTER (14MM)

$1.02¢512

#018

24724-MBW-D21

COVER, DUST

$7.77¢3 887

#019

32214-MLB-D00

STAY, HARNESS CLIP

$3.60¢1 800

#020

36390-MLC-A01

SENSOR ASSY., STROKE

$1148.34¢574 172

#021

90021-GHB-630

BOLT, FLANGE (6X14)

$2.64¢1 322

#022

90113-MKK-D00

BOLT, SOCKET (7X35) (OP)

$3.98¢1 989

#023

90125-MKK-D00

COLLAR (10MM) (OP)

$2.30¢1 150

#024

90202-KV3-000

NUT, FLANGE (7MM)

$2.51¢1 254
