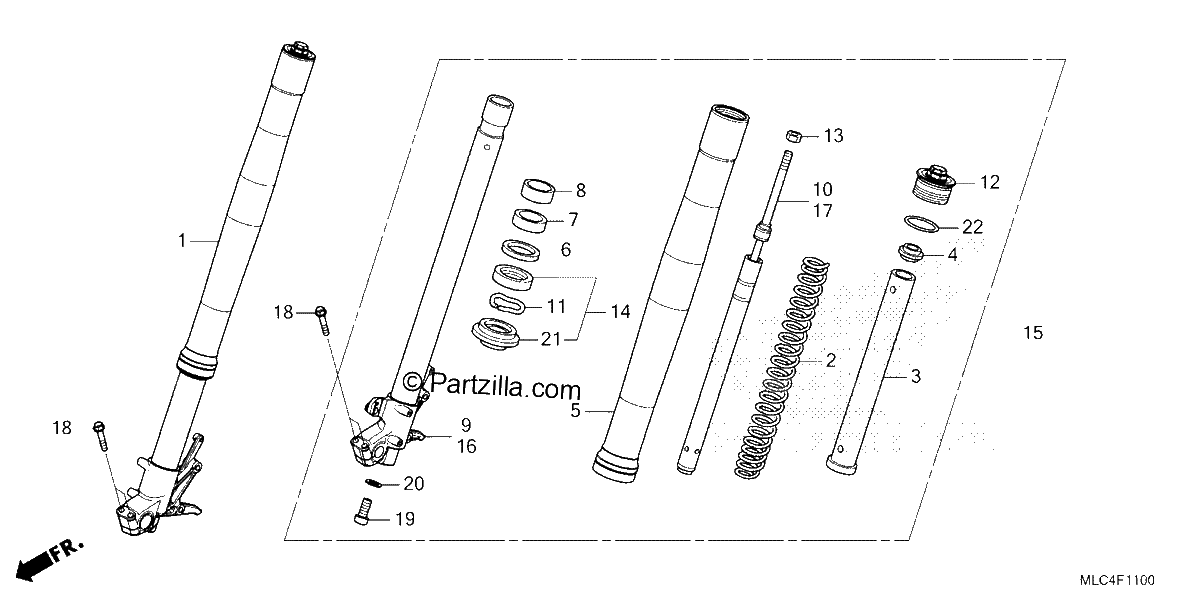

FRONT FORK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
FORK Assembly., Right Front.
$1165.74¢582 872
#002
SPRING, R. FR. FORK (RIGHT & LEFT)
$59.71¢29 854
#003
COLLAR, SPRING
$19.96¢9 982
#004
STOPPER, SPRING SEAT
$8.82¢4 410
#005
TUBE (OUTER)
$478.27¢239 137
#006
RING, BACK-UP
$10.38¢5 192
#007
BUSH, GUIDE
$7.89¢3 944
#008
BUSH, SLIDER
$32.92¢16 462
#009
PIPE, R. SLIDE
$359.16¢179 578
#010
DAMPER, Front. (Right SIDE)
$375.50¢187 749
#011
RING, OIL SEAL STOPPER (SHOWA)
$5.04¢2 519
#012
BOLT, FR. FORK
$148.12¢74 060
#013
NUT, HEX. (10MM)
$3.43¢1 713
#014
SEAL SET, FR. FORK
$20.61¢10 304
#015
FORK Assembly., L Front.
$1165.74¢582 872
#016
PIPE, L. SLIDE
$343.76¢171 879
#017
DAMPER, FR. (L. SIDE)
$420.64¢210 318
#018
BOLT, FLANGE (8X45)
$2.85¢1 426
#019
BOLT, SOCKET (8MM) (SHOWA)
$4.34¢2 168
#020
WASHER, SPECIAL (8MM) (SHOWA)
$3.36¢1 679
#021
DUST SEAL
$15.25¢7 624
#022
O-RING (44.7X2.4)
$4.38¢2 191
