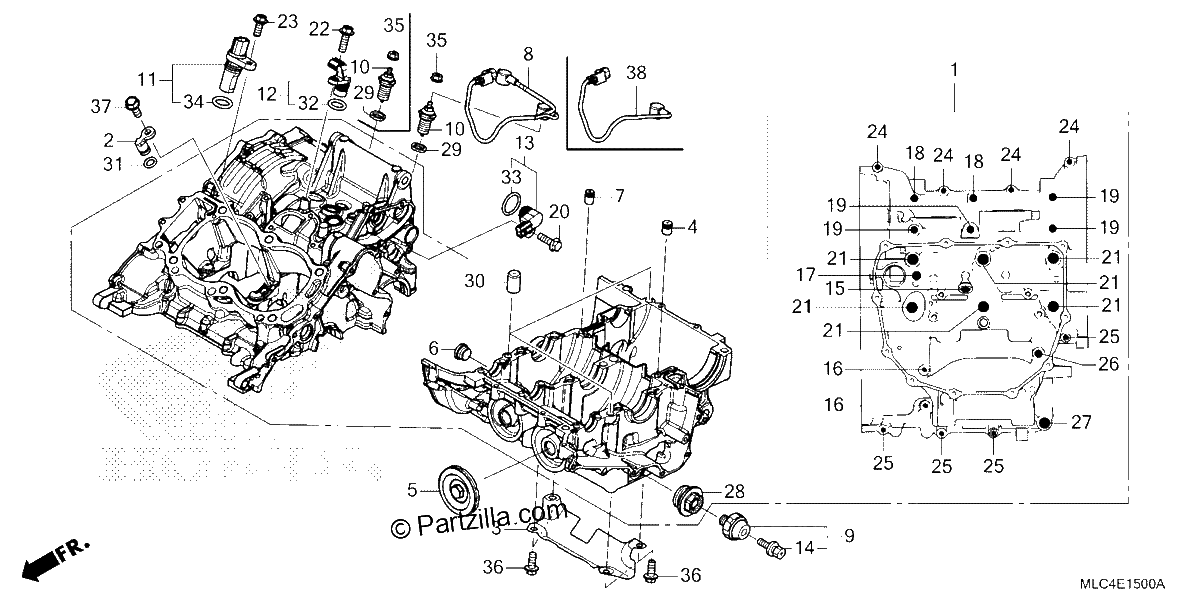

CRANKCASE
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
CRANKCASE SET
$1563.38¢781 688
#002
JET, OIL
$12.40¢6 200
#003
PLATE, BAFFLE
$8.30¢4 150
#004
ORIFICE (1.2MM)
$4.53¢2 263
#005
CAP (20MM)
$22.50¢11 250
#006
BOLT, SEALING (14MM)
$7.75¢3 875
#007
ORIFICE (1.7MM)
$5.49¢2 744
#009
SWITCH ASSY., OIL PRESSURE (DENSO)
$62.93¢31 463
#010
SWITCH ASSY., NEUTRAL
$27.85¢13 925
#011
SENSOR Assembly., CRANK
$110.43¢55 213
#012
SENSOR ASSY., SPEED
$76.74¢38 369
#013
SENSOR ASSY., ANGLE (350DEGREE)
$224.46¢112 231
#014
BOLT-WASHER (4X8) (DENSO)
$7.54¢3 769
#015
BOLT, SEALING (12X8)
$8.20¢4 100
#016
BOLT, FLANGE (6X90)
$14.24¢7 119
#017
BOLT, SOCKET (10MM)
$2.91¢1 456
#018
BOLT, FLANGE (8X45)
$3.04¢1 519
#019
BOLT, FLANGE (8X75)
$3.79¢1 894
#020
BOLT, KNOCK (6MM)
$3.71¢1 856
#021
BOLT, FLANGE (10X130)
$7.56¢3 781
#022
BOLT, FLANGE (6X18)
$2.88¢1 438
#023
BOLT, FLANGE (6X16) (S-NSHF)
$2.81¢1 406
#024
BOLT, FLANGE (6X32)
$2.36¢1 181
#025
BOLT, FLANGE (6X45)
$2.48¢1 238
#026
BOLT, FLANGE (8X55)
$2.40¢1 200
#027
BOLT, FLANGE (10X70)
$4.63¢2 313
#028
BOLT, SEALING (22MM)
$12.24¢6 119
#029
WASHER, NEUTRAL
$2.48¢1 238
#030
PIN, DOWEL (10X16)
$5.21¢2 606
#031
O-RING (6.8X1.9) (ARAI)
$2.99¢1 494
#032
O-RING B
$3.36¢1 681
#033
O-RING (16.5X2.5)
$6.19¢3 094
#034
O-RING
$4.24¢2 119
#035
NUT, FLANGE (4MM)
$1.57¢788
#036
BOLT, FLANGE (6X14)
$1.23¢613
#037
BOLT, FLANGE (6X16)
$2.09¢1 044
#038
SUB-HARNESS, NEUTRAL
$10.10¢5 050
