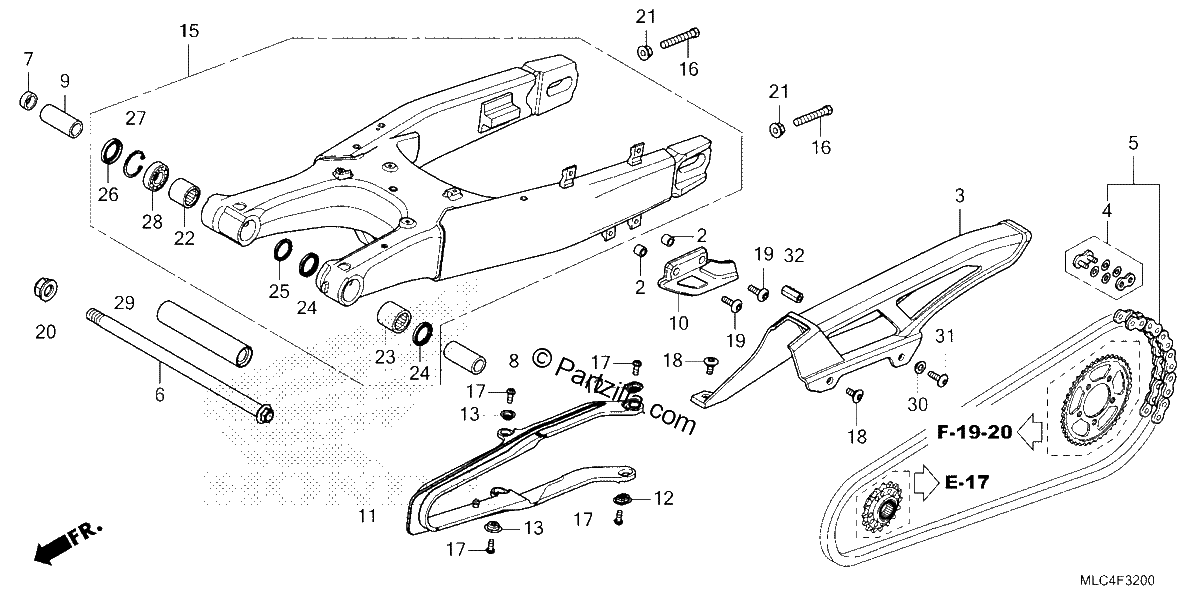

SWINGARM
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#002
COLLAR, CHAIN GUARD
$2.59¢1 294
#003
CASE, DRIVE CHAIN
$117.07¢58 537
#004
MASTER LINK (DAIDO)
$11.83¢5 913
#004
MASTER LINK (RK JAPAN)
$11.83¢5 913
#005
CHAIN, DRIVE (DID520VM5-130ZB)(DAIDO)
$206.41¢103 206
#005
CHAIN, DRIVE (RK520KZOZ2-130LJ) (RK JAPAN)
$206.41¢103 206
#006
BOLT, SWINGARM PIVOT
$39.69¢19 844
#007
COLLAR A, PIVOT
$6.67¢3 338
#008
COLLAR, L. PIVOT DISTANCE
$17.38¢8 688
#009
COLLAR, R. PIVOT DISTANCE
$21.48¢10 738
#010
GUARD, CHAIN
$25.31¢12 656
#011
SLIDER, CHAIN
$62.21¢31 106
#012
WASHER, CHAIN SLIDER
$3.33¢1 663
#013
WASHER, CHAIN SLIDER
$4.14¢2 069
#015
SWINGARM SUB-ASSY., RR. (TYPE1)
$1923.94¢961 969
#016
BOLT, HEX. (8X50)
$2.81¢1 406
#017
SCREW, PAN (5X12)
$2.41¢1 206
#018
SCREW, SPECIAL (6X14)
$3.49¢1 744
#019
BOLT, SPECIAL (6X20)
$3.30¢1 650
#020
NUT, U (16MM)
$13.65¢6 825
#021
NUT, HEX. (8MM)
$4.13¢2 063
#022
BEARING, NEEDLE (24X31X28)
$19.81¢9 906
#023
BEARING, NEEDLE (NTN)
$31.19¢15 594
#024
DUST SEAL (25X33X4)
$8.44¢4 219
#025
OIL SEAL (24X31X3.5)
$12.21¢6 106
#026
DUST SEAL (23X35X5)
$10.58¢5 288
#027
CIRCLIP, INNER (35MM)
$2.50¢1 250
#028
BEARING, RADIAL BALL (6003)
$16.44¢8 219
#028
BEARING, RADIAL BALL (6003)
$17.59¢8 794
#029
COLLAR, CENTER PIVOT DISTANCE
$38.11¢19 056
#030
COLLAR, CHAIN CASE
$2.70¢1 350
#031
SCREW, PAN (6X20)
$4.88¢2 438
#032
NUT, SPECIAL (6MM)
$5.80¢2 900
