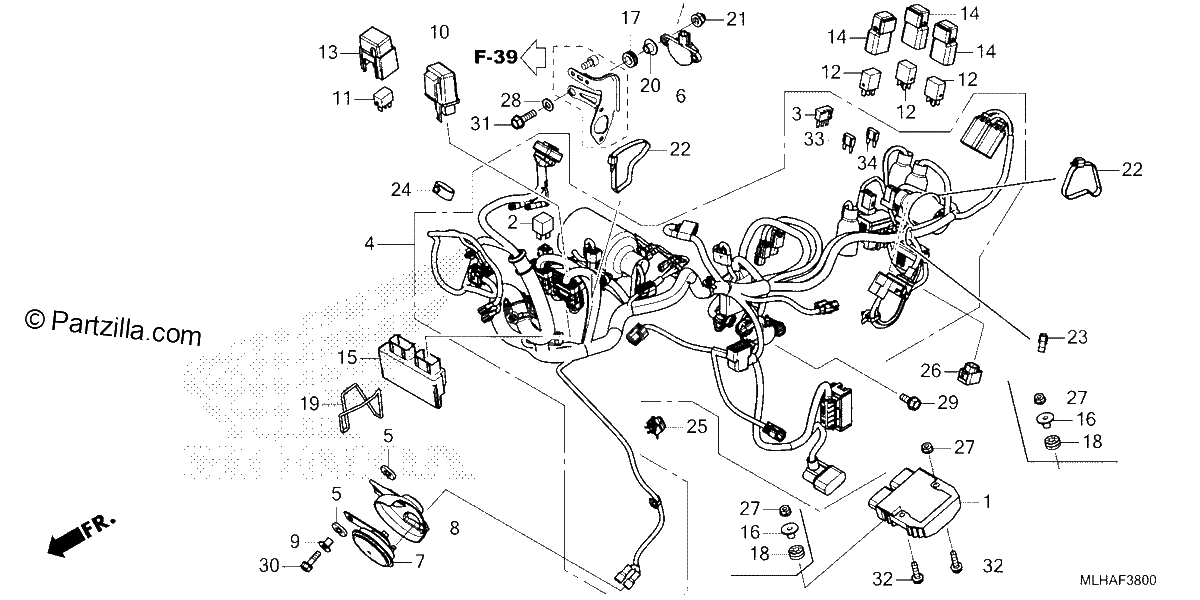

WIRE HARNESS
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
RECTIFIER ASSY., REGULATOR
$220.61¢110 306
#002
RECTIFIER, SILICON
$30.66¢15 331
#003
DIODE ASSY., THREE WAY (SUMITOMO)
$12.64¢6 319
#004
WIRE HARNESS
$928.01¢464 006
#005
RUBBER, TAILLIGHT BRACKET
$3.24¢1 619
#006
SENSOR ASSY., BANK ANGLE (M6)
$139.65¢69 825
#007
HORN (HIGH)
$30.64¢15 319
#008
HEAT GUARD, HORN
$5.39¢2 694
#009
COLLAR, HORN SETTING
$2.24¢1 119
#010
RELAY, TURN SIGNAL (LED)
$73.24¢36 619
#011
RELAY Assembly., POWER (MICRO ISO 4P) (MITSUBA)
$12.48¢6 238
#012
RELAY, POWER (MICRO ISO 4P)
$12.59¢6 294
#013
COVER, RELAY (2P)
$4.65¢2 325
#014
SUSPENSION, POWER RELAY
$7.91¢3 956
#015
PGM-FI UNIT
$462.50¢231 250
#016
COLLAR
$1.95¢975
#017
RUBBER, SIDE COVER
$2.50¢1 250
#018
RUBBER B, SEAT MOUNTING
$3.98¢1 988
#019
BAND, TOOL
$3.44¢1 719
#020
COLLAR, BANK ANGLE SENSOR
$2.95¢1 475
#021
NUT, CAP (6MM)
$3.65¢1 825
#022
BAND, WIRE HARNESS
$31.72¢15 862
#023
BAND, WIRE (95MM)
$3.77¢1 888
#024
BAND, RUBBER (50)
$3.77¢1 888
#025
CLIP, CABLE (8MM)
$2.81¢1 406
#026
CONNECTOR, DUMMY (6P 025M)
$10.96¢5 481
#027
NUT, FLANGE (6MM)
$1.86¢931
#028
WASHER, PLAIN (6MM)
$0.84¢419
#029
BOLT, FLANGE (6X14)
$2.09¢1 044
#030
BOLT, FLANGE (6X20)
$2.09¢1 044
#031
BOLT, FLANGE (6X20)
$0.47¢238
#032
BOLT, FLANGE (6X35)
$2.41¢1 206
#033
FUSE, MINI (10A)
$1.70¢850
#034
FUSE, MINI (30A)
$2.15¢1 075
