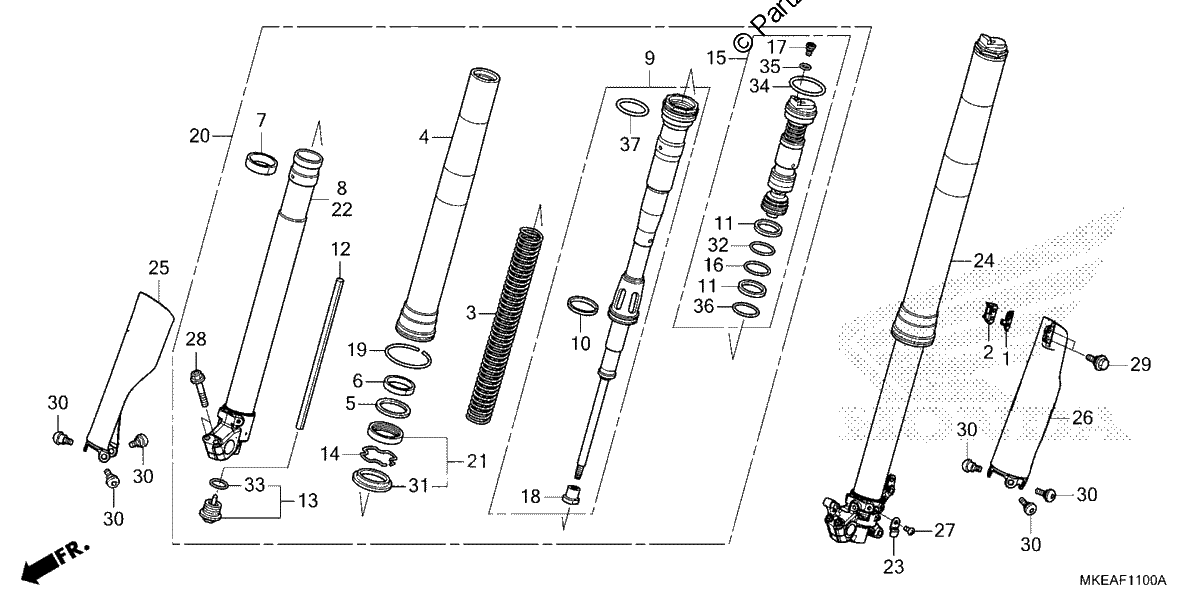

FRONT FORK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
CLAMP A, BRAKE HOSE
$8.05¢4 025
#002
CLAMP B, BRAKE HOSE
$9.94¢4 968
#003
SPRING, Front FORK (5.0N/MM)
$132.16¢66 079
#004
TUBE (OUTER) (BLACK)
$653.90¢326 951
#005
RING, BACK-UP
$9.91¢4 956
#006
BUSH, GUIDE
$13.98¢6 992
#007
BUSH, SLIDER
$13.75¢6 877
#008
PIPE, R. SLIDE
$502.52¢251 258
#009
DAMPER, Front.
$447.66¢223 830
#010
BUSH B, SLIDER
$13.17¢6 584
#011
BUSH, SLIDER
$16.25¢8 125
#012
COLLAR, REBOUND NEEDLE
$12.65¢6 325
#013
BOLT, CENTER
$41.73¢20 867
#014
RING, OIL SEAL STOP
$4.17¢2 087
#015
BOLT ASSY., FR. FORK
$280.48¢140 242
#016
RING, PISTON
$11.86¢5 928
#017
BOLT, PLUG
$6.92¢3 461
#018
NUT, LOCK
$13.97¢6 986
#019
RING, WEAR
$8.61¢4 307
#020
FORK SUB-ASSY., R. FR.
$1858.87¢929 436
#021
SEAL SET, FR. FORK
$28.21¢14 105
#022
PIPE, L. SLIDE
$502.52¢251 258
#023
STAY, AXLE HOLDER
$4.73¢2 363
#024
FORK SUB-Assembly., L Front.
$1858.87¢929 436
#025
PROTECTOR, Right Front FORK R292R (WOL)(EXTREME RED)
$90.40¢45 201
#026
PROTECTOR, L Front FORK R292R (WOL)(EXTREME RED)
$90.79¢45 396
#027
SCREW, PAN (4X6)
$0.92¢460
#028
BOLT, FLANGE (8X40)
$2.53¢1 265
#029
BOLT, FLANGE (6MM)
$0.64¢322
#030
BOLT, PROTECTOR
$3.93¢1 967
#031
DUST SEAL
$13.57¢6 785
#032
O-RING (31.6X1.8)
$3.66¢1 829
#033
O-RING (22.1X1.9)
$2.98¢1 489
#034
O-RING (42.2X2.4)
$6.59¢3 295
#035
O-RING (3.5X1.5)
$3.21¢1 604
#036
O-RING (35.5X2)
$2.84¢1 420
#037
O-RING (47.2X2.4)
$4.21¢2 105
