TRUNK BOX

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

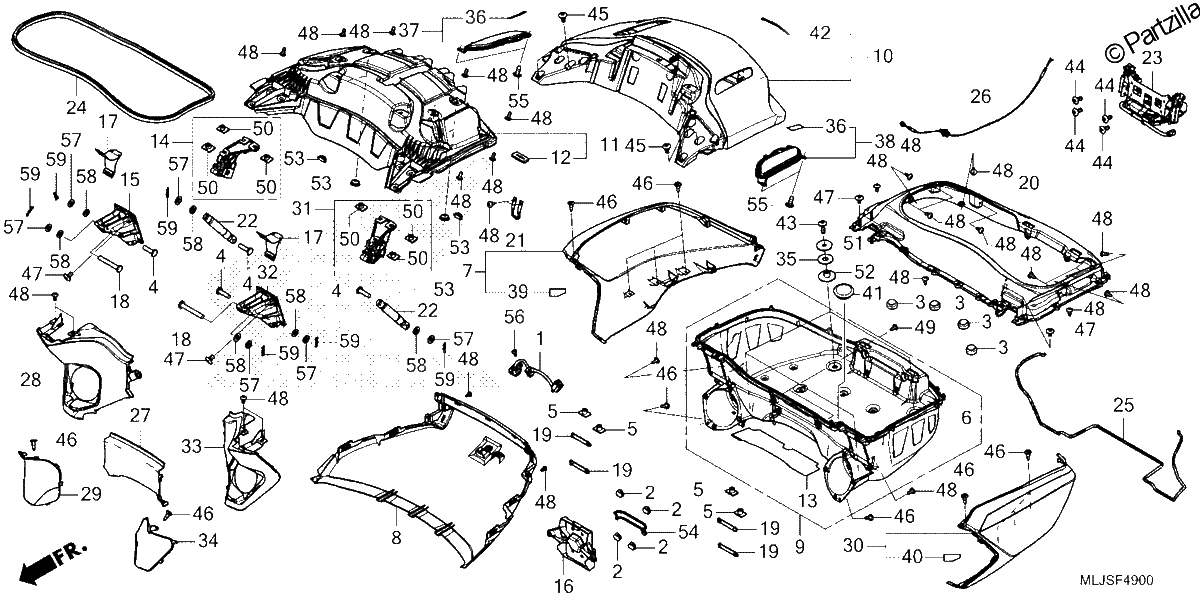

Diagrama de TRUNK BOX

Repuestos

#001
35390-MKC-A01
SWITCH ASSY., TRUNK OPENER
$62.01¢31 006
1
#003
77110-KA3-730
RUBBER, SEAT MOUNTING
$6.13¢3 063
1
#004
77156-GZ4-670
PIN, SEAT HOOK
$6.79¢3 394
1
#005
80104-KJ2-000
NUT, RR. FENDER
$4.95¢2 475
1
#006
81111-MKC-L80
BOX, TRUNK (LOWER) (INNER)
$892.59¢446 294
1
#007
81113-MLJ-M70ZA
COVER Assembly., Right TRUNK SIDE YR387M (WL)(ETERNAL GOLD)
$193.75¢96 875
1
#008
81116-MKC-L00ZR
COVER, CENTER TRUNK (LOWER) YR387MC (ETERNAL GOLD-C)
$205.45¢102 725
1
#010
81120-MLJ-M70ZB
LID SET, TRUNK (TYPE1) (WL)
$981.66¢490 831
1
#011
81126-MKC-L00
INNER LID, TRUNK
$163.84¢81 919
1
#012
81127-MKC-A00
MAT, LID (INNER)
$3.20¢1 600
1
#014
81131-MKC-A00
HINGE A, R. TRUNK
$67.21¢33 606
1
#015
81132-MKC-A00
HINGE B, R. TRUNK
$65.09¢32 544
1
#017
81134-MKC-A00
RUBBER, HINGE
$6.56¢3 281
1
#018
81136-MKC-A00
PIN A, TRUNK HINGE
$6.29¢3 144
1
#019
81140-MKC-A00
PLATE, TRUNK HINGE
$6.92¢3 463
1
#020
81150-MKC-L00
BOX, TRUNK (UPPER) (INNER)
$101.68¢50 838
1
#021
81151-MKC-A00
ROD, TRUNK STRIKER
$14.01¢7 006
1
#022
81155-MKC-L01
DAMPER, TRUNK LID
$82.99¢41 494
1
#023
81160-MKC-A01
CATCH, TRUNK
$640.48¢320 238
1
#024
81181-MKC-L00
RUBBER, TRUNK LID SEAL
$53.08¢26 538
1
#025
81182-MKC-L00
RUBBER, TRUNK BOX SEAL (INNER)
$41.73¢20 863
1
#026
81184-MKC-L01
CABLE, TRUNK EMERGENCY
$23.77¢11 888
1
#027
81191-MKC-L00ZA
PANEL, FR. TRUNK (LOWER) *NH1*(BLACK)
$32.69¢16 344
1
#028
81193-MKC-L00ZA
COVER, R. FR. TRUNK *NH1*(BLACK)
$51.31¢25 656
1
#029
81194-MKC-L00ZA
COVER, R. RR. SPEAKER *NH1*(BLACK)
$21.16¢10 581
1
#030
81213-MLJ-M70ZA
COVER Assembly., L TRUNK SIDE YR387M (WL)(ETERNAL GOLD)
$193.75¢96 875
1
#031
81231-MKC-A00
HINGE A, L. TRUNK
$67.21¢33 606
1
#032
81232-MKC-A00
HINGE B, L. TRUNK
$65.09¢32 544
1
#033
81293-MKC-L00ZA
COVER, L. FR. TRUNK *NH1*(BLACK)
$51.31¢25 656
1
#034
81294-MKC-L00ZA
COVER, L. RR. SPEAKER *NH1*(BLACK)
$21.16¢10 581
1
#035
81356-MKC-A00
RUBBER, TRUNK MOUNTING
$2.82¢1 412
1
#036
81552-MKC-L00
SEAL, LID COVER
$9.90¢4 950
1
#037
81650-MLJ-M70ZC
COVER, Right TRUNK LID YR387MC (ETERNAL GOLD-C)
$59.94¢29 969
1
#038
81655-MLJ-M70ZC
COVER, L TRUNK LID YR387MC (ETERNAL GOLD-C)
$59.94¢29 969
1
#039
81991-MKC-L00
TAPE, R. PROTECTION
$2.59¢1 294
1
#040
81992-MKC-L00
TAPE, L. PROTECTION
$2.59¢1 294
1
#041
82871-KTP-900
GROMMET, DRAIN HOLE
No Disponible
1
#041
82871-671-000
GROMMET, DRAIN HOLE (25MM)
$5.41¢2 706
1
#042
86102-MKC-L00
EMBLEM, HONDA (100MM)
$35.38¢17 688
1
#043
90085-MAJ-A20
BOLT, SPECIAL (6X22)
$4.59¢2 294
1
#044
90112-MJK-N20
SCREW (5X12)
$2.89¢1 444
1
#045
90114-MCJ-000
SCREW, SPECIAL (6X14)
$3.24¢1 619
1
#046
90116-K2P-V61
CLIP, BUMPER SEAL
$2.07¢1 037
1
#046
90116-SP0-003
CLIP, BUMPER SEAL
$5.72¢2 863
1
#047
90119-MEW-920
SCREW, PAN (6X11)
$2.63¢1 313
1
#048
90121-MJK-N20
SCREW, TAPPING (5X12)
$2.89¢1 444
1
#049
90121-MJK-N20
SCREW, TAPPING (5X12)
$2.89¢1 444
1
#050
90303-HA0-680
NUT, SPECIAL (6X7)
$4.65¢2 325
1
#051
90506-MKC-A00
WASHER, TRUNK SET
$3.10¢1 550
1
#052
90508-MKC-A00
COLLAR, RR. TRUNK
$8.89¢4 444
1
#053
90852-KPP-T00
PLUG, HOLE
$2.07¢1 037
1
#055
93903-24280
SCREW, TAPPING (4X10)
$1.74¢869
1
#056
93903-32180
SCREW, TAPPING (3X8)
$0.84¢419
1
#057
94101-06000
WASHER, PLAIN (6MM)
$0.84¢419
1
#057
94101-06800
WASHER, PLAIN (6MM)
$0.84¢419
1
#057
94101-06080
WASHER, PLAIN (6MM)
$0.84¢419
1
#058
94111-06800
WASHER, SPRING (6MM)
$1.45¢725
1
#059
94251-06000
PIN, LOCK (6MM)
$1.34¢669
1
