FRONT BRAKE MASTER CYLINDER 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

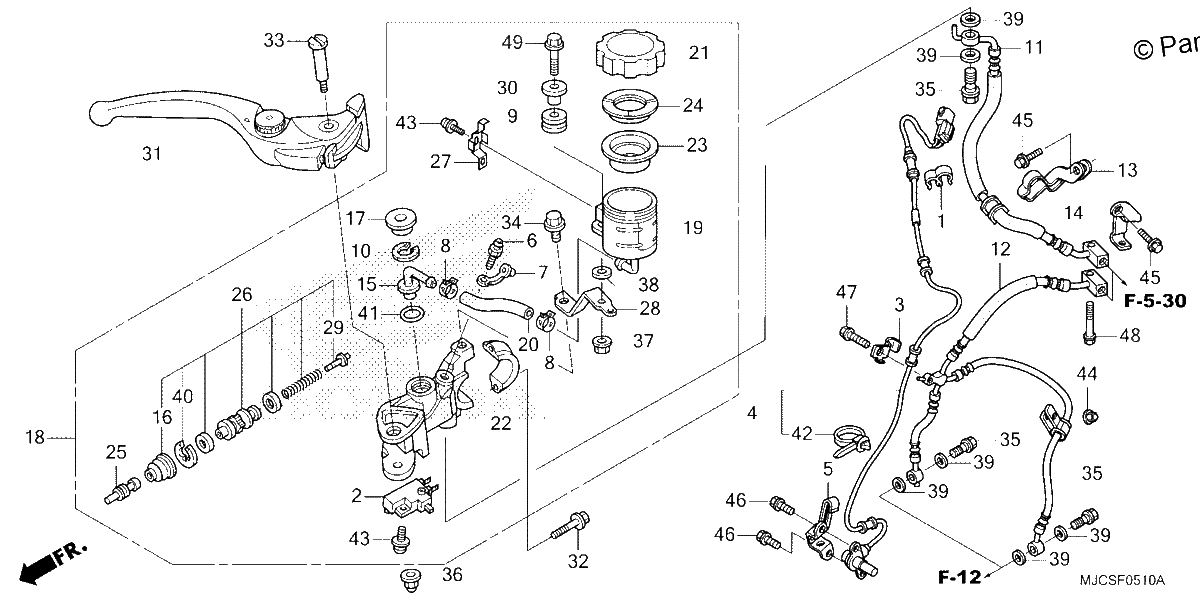

Diagrama de FRONT BRAKE MASTER CYLINDER 2

Repuestos

#001
11152-KS4-003
CLAMP, PIPE
$7.95¢3 973
1
#002
35340-MGS-D31
SWITCH Assembly., Front STOP (ALPS)
$19.77¢9 884
1
#003
38514-MEJ-J00
CLAMP B, SENSOR WIRE
$2.68¢1 340
1
#004
38520-MFJ-A51
SENSOR, FR. WHEEL SPEED
$222.97¢111 487
1
#005
38525-MFJ-A50
GUIDE, FR. SENSOR WIRE
$15.21¢7 607
1
#006
43352-568-003
SCREW, BLEEDER (NISSIN)
$8.85¢4 427
1
#007
43353-461-771
CAP, BLEEDER
$5.63¢2 818
1
#008
43514-KS6-701
CLAMP, MASTER CYLINDER OIL HOSE
$14.02¢7 009
1
#009
43516-MCJ-006
RUBBER, OIL CUP
$5.51¢2 754
1
#010
43517-KS6-701
CIRCLIP, Rear MASTER CYLINDER
$4.25¢2 128
1
#011
45124-MJC-D11
HOSE A, FR. BRAKE
$65.02¢32 511
1
#012
45127-MJC-M61
HOSE B, FR. BRAKE
$169.22¢84 611
1
#013
45159-MFJ-A50
CLAMP, FR. BRAKE HOSE
$13.39¢6 693
1
#014
45163-MFJ-A50
STAY, FR. BRAKE HOSE
$8.69¢4 347
1
#015
45503-KV3-006
CONNECTOR, MASTER CYLINDER
$10.11¢5 054
1
#016
45504-MCF-006
BOOT
$14.06¢7 032
1
#017
45505-KV3-006
COVER, DUST
$4.63¢2 317
1
#018
45510-MJC-A01
MASTER CYLINDER SUB-Assembly., Front BRAKE
$377.59¢188 795
1
#019
45511-MEL-D21
CUP, OIL
$10.58¢5 290
1
#020
45512-KV3-951
HOSE, MASTER CYLINDER OIL
$5.82¢2 909
1
#021
45513-MEL-D21
CAP, OIL CUP
$19.68¢9 838
1
#022
45517-MFL-006
HOLDER, MASTER CYLINDER
$12.68¢6 342
1
#023
45520-300-000
DIAPHRAGM
$9.74¢4 870
1
#024
45521-MJ6-006
PLATE, DIAPHRAGM
$4.52¢2 260
1
#025
45525-MEL-016
ROD, PUSH
$15.69¢7 843
1
#026
45530-MFJ-D01
MASTER CYLINDER SET
$51.55¢25 777
1
#027
45535-MR8-901
PLATE, STOP
$6.08¢3 042
1
#028
45550-MFJ-D01
STAY, FR. MASTER CYLINDER
$5.51¢2 754
1
#029
46140-MFJ-D01
GUIDE, SPRING
$9.49¢4 744
1
#030
50324-425-010
COLLAR (6.3X13)
$5.40¢2 702
1
#031
53170-MEL-006
LEVER Assembly., Right HANDLE
$56.13¢28 066
1
#032
90101-MBZ-G00
BOLT, FLANGE (6X22)
$1.70¢851
1
#033
90114-MCF-006
BOLT, HANDLE LEVER
$6.49¢3 243
1
#034
90117-MR7-000
BOLT, FLANGE (6X12)
$3.53¢1 765
1
#035
90145-MS9-612
BOLT, OIL (10X22)
$8.18¢4 088
1
#036
90201-415-000
NUT, CAP (6MM)
$2.54¢1 271
1
#037
90301-MG3-000
NUT, U (6MM)
$7.72¢3 858
1
#038
90473-147-000
WASHER (6X16)
$1.56¢782
1
#039
90545-300-000
WASHER, OIL BOLT
$4.46¢2 231
1
#040
90651-MCF-006
CIRCLIP
$2.68¢1 340
1
#041
91212-422-006
O-RING (14.8X2.4)
$3.04¢1 518
1
#042
91541-S0A-003
CLIP, HARNESS BAND (145MM) (BLACK)
$3.69¢1 846
1
#043
93893-04012-07
SCREW-WASHER (4X12)
$1.59¢793
1
#043
93893-04012-17
SCREW-WASHER (4X12)
$1.59¢793
1
#044
94021-06070-0S
NUT, CAP (6MM)
$1.83¢914
1
#045
96001-06012-07
BOLT, FLANGE (6X12)
$2.13¢1 064
1
#046
96001-06014-07
BOLT, FLANGE (6X14)
$1.41¢707
1
#047
96001-06018-07
BOLT, FLANGE (6X18)
$1.49¢747
1
#048
96001-06035-07
BOLT, FLANGE (6X35)
$2.56¢1 282
1
#049
96300-06028-07
BOLT, FLANGE (6X28)
$2.13¢1 064
1
