PEDAL KICK STARTER ARM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

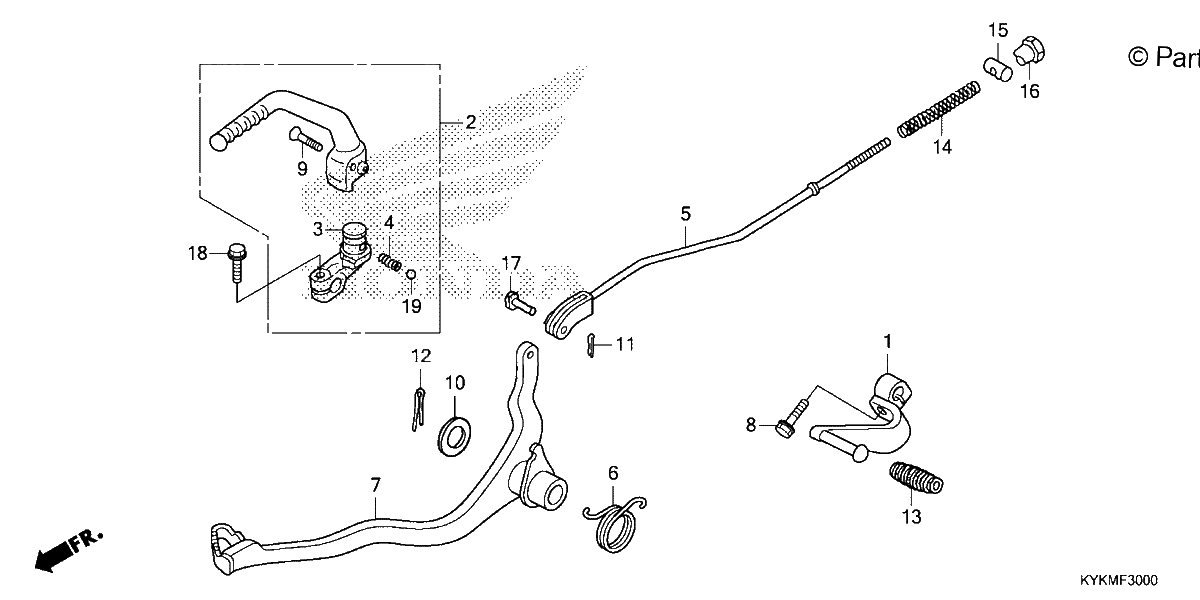

Diagrama de PEDAL KICK STARTER ARM

Repuestos

#001
24701-KYK-305
PEDAL, GEARSHIFT (COO)
$42.98¢21 488
1
#001
24701-KYK-910
PEDAL, GEARSHIFT
$42.98¢21 488
1
#002
28300-KYK-305
ARM ASSY., KICK STARTER (COO)
$165.35¢82 675
1
#002
28300-KYK-910
ARM Assembly., KICK STARTER
$165.35¢82 675
1
#003
28302-KYK-910
JOINT, KICK ARM
$88.98¢44 488
1
#004
28333-KYK-910
SPRING, KICK STARTER ARM SETTING
$3.65¢1 825
1
#005
43451-KYK-910
ROD, RR. BRAKE
$18.54¢9 269
1
#006
45435-KYK-910
SPRING, BRAKE ARM RETURN
$11.40¢5 700
1
#007
46500-KYK-305
PEDAL, BRAKE (COO)
$106.58¢53 288
1
#007
46500-KYK-910
PEDAL, BRAKE
$106.58¢53 288
1
#008
90131-124-000
BOLT, FLANGE (6X25)
$0.96¢481
1
#009
93600-06022-0H
SCREW, FLAT (6X22)
$5.09¢2 544
1
#010
94102-16000
WASHER, PLAIN (16MM)
$1.29¢644
1
#011
94201-20120
PIN, SPLIT (2.0X12)
$1.27¢638
1
#011
94201-20121
PIN, SPLIT (2.0)
$1.27¢638
1
#012
94201-30250
PIN, SPLIT (3.0X25)
$1.27¢638
1
#012
94201-30300
PIN, SPLIT (3.0X30)
$1.27¢638
1
#012
94201-30400
PIN, SPLIT (3.0)
$1.27¢638
1
#012
94201-30450
PIN, SPLIT (3.0X45)
$1.27¢638
1
#013
95011-40000
RUBBER, CHANGE PEDAL
$1.63¢813
1
#014
95014-73100
SPRING A, BRAKE ROD
$1.66¢831
1
#015
95015-32001
JOINT B, BRAKE ARM
$1.21¢606
1
#016
95015-42000
NUT B, BRAKE ROD ADJUSTING
$2.48¢1 238
1
#017
95015-53000
PIN C, JOINT
$3.71¢1 856
1
#018
95701-06022-00
BOLT, FLANGE (6X22)
$2.31¢1 156
1
#019
96211-08000
BALL, STEEL (#8) (1/4)
$1.60¢800
1
