WIRE HARNESS

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

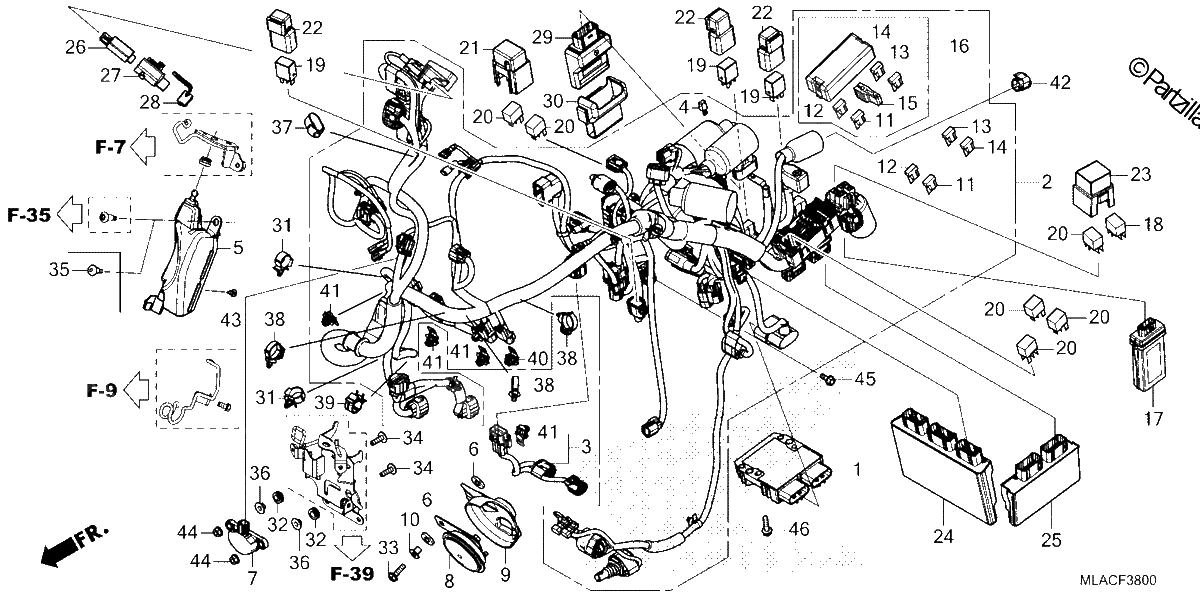

Diagrama de WIRE HARNESS

Repuestos

#001
31600-MKN-D51
RECTIFIER ASSY., REGULATOR
$202.96¢101 482
1
#002
32100-MLA-AF0
WIRE HARNESS
$1636.66¢818 329
1
#003
32101-MLA-A50
SUB-HARNESS, ENGINE
$46.91¢23 454
1
#004
32146-S84-003
CONNECTOR, DIODE (2P) (3A)
$16.01¢8 004
1
#005
33460-MLA-A00
BOX Assembly., CONNECTOR
$23.49¢11 747
1
#006
33714-KL3-620
RUBBER, TAILLIGHT BRACKET
$2.98¢1 489
1
#007
35160-KVS-751
SENSOR ASSY., BANK ANGLE (M6)
$128.48¢64 239
1
#008
38110-MGZ-J01
HORN (HIGH)
$28.19¢14 093
1
#009
38111-MGZ-J00
HEAT GUARD, HORN
$4.96¢2 478
1
#010
38117-MGZ-J00
COLLAR, HORN SETTING
$2.06¢1 029
1
#011
38221-SNA-A31
FUSE, BLADE (7.5A)
$3.46¢1 731
1
#012
38221-SNA-A41
FUSE, BLADE (10A)
$3.46¢1 731
1
#013
38221-SNA-A61
FUSE, BLADE (20A)
$4.42¢2 208
1
#014
38221-SNA-A81
FUSE, BLADE (30A)
$2.86¢1 432
1
#015
38235-SNA-A01
PULLER, MINI FUSE
$4.15¢2 076
1
#016
38255-MLA-A51
COVER Assembly., POWER BOX
$32.38¢16 192
1
#017
38351-K1B-D25
BLUETOOTH UNIT
No Disponible
1
#017
38351-K1B-D26
SET, BT UNIT Assembly.
$144.54¢72 272
1
#018
38501-KVZ-631
RELAY Assembly., POWER (MICRO ISO 4P) (MITSUBA)
$11.48¢5 739
1
#019
38501-MCS-G01
RELAY, POWER (MICRO ISO 4P)
$11.58¢5 790
1
#020
38501-MKP-DN1
RELAY, POWER (MICRO ISO 4P)
$5.19¢2 593
1
#021
38506-KZZ-900
COVER, RELAY (2P)
$4.28¢2 139
1
#022
38506-MCS-G00
SUSPENSION, POWER RELAY
$7.28¢3 640
1
#023
38506-MLA-AA0
SUSPENSION, RELAY (2P)
$3.16¢1 581
1
#024
38770-MLA-AF2
PGM-FI UNIT
$1676.73¢838 367
1
#025
38780-MLA-AF1
PGM-DCT UNIT
$670.60¢335 300
1
#026
38940-MKR-D11
CHARGER UNIT, USB (TYPE-C)
$79.20¢39 600
1
#027
38941-MLA-AA0
COVER, USB CHARGER (TYPE-C)
$7.73¢3 864
1
#028
38942-MLA-AA0
CAP, USB CHARGER COVER
$4.28¢2 139
1
#029
38950-MLA-AA1
CONTROL UNIT, BODY
$152.78¢76 389
1
#030
38956-K2L-D01
CUSHION, BODY CONTROL UNIT
$29.22¢14 611
1
#031
53781-SE0-952
CLIP, RETURN HOSE
$8.97¢4 485
1
#032
64535-MFJ-D00
RUBBER, SIDE COVER
$2.30¢1 150
1
#033
90031-GHB-660
BOLT, FLANGE (6X20)
$2.59¢1 294
1
#034
90118-MEJ-J00
SCREW, PAN (6X20)
$2.53¢1 265
1
#035
90127-MCP-900
BOLT, SPECIAL (6MM)
$2.13¢1 064
1
#036
90129-MGZ-J00
COLLAR, BANK ANGLE SENSOR
$2.71¢1 357
1
#037
90651-MKH-D20
BAND, RUBBER (70)
$3.50¢1 748
1
#038
90652-HC4-003
CLAMP, HARNESS
$6.64¢3 318
1
#039
90690-GHB-651
CLIP, CABLE (15MM)
$2.59¢1 294
1
#040
91535-STK-003
CLIP, CONNECTOR (DARK BLUE)
$6.84¢3 421
1
#041
91535-TA0-003
CLIP, CONNECTOR (DARK BROWN)
$4.62¢2 311
1
#042
91771-MKK-H11
CAP, DUMMY (6P) (RED)
$26.62¢13 311
1
#043
93903-24380
SCREW, TAPPING (4X12)
$1.07¢535
1
#044
94050-06070
NUT, FLANGE (6MM)
$1.71¢857
1
#045
95701-06016-08
BOLT, FLANGE (6X16)
$1.63¢816
1
#046
95701-06022-07
BOLT, FLANGE (6X22)
$1.12¢558
1
