GEARSHIFT DRUM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

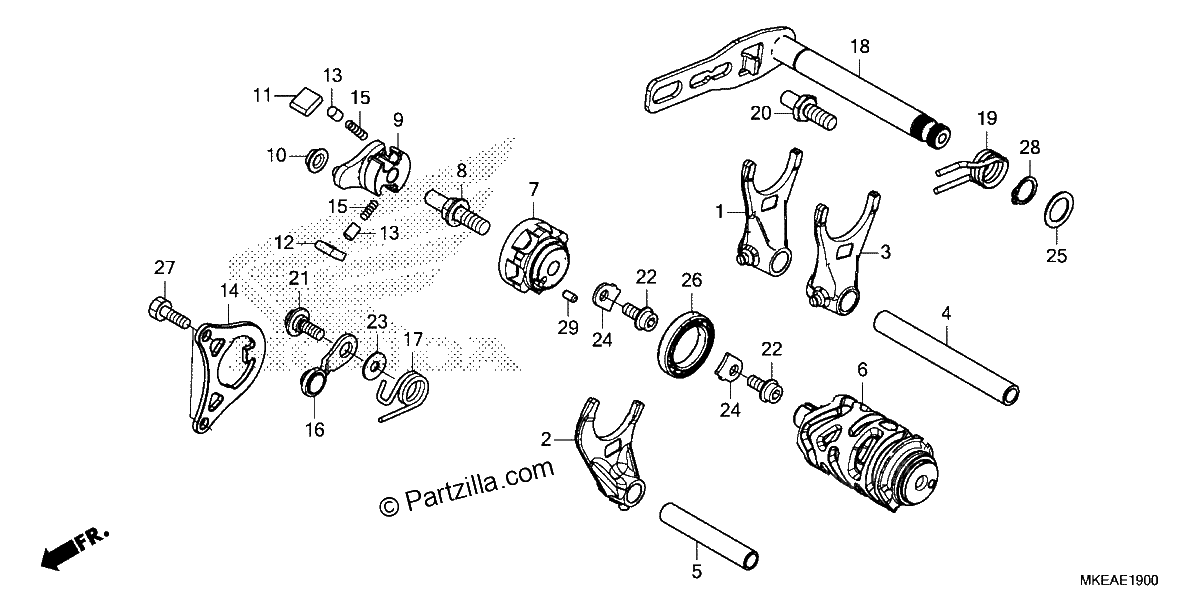

Diagrama de GEARSHIFT DRUM

Repuestos

#001
24211-MKE-A50
FORK, R. GEARSHIFT
$79.69¢39 844
1
#002
24212-MKE-A50
FORK, CENTER GEARSHIFT
$84.13¢42 063
1
#003
24213-MKE-A50
FORK, L. GEARSHIFT
$79.69¢39 844
1
#004
24241-MKE-A50
SHAFT A, SHIFT FORK
$22.44¢11 219
1
#005
24242-MEN-730
SHAFT B, SHIFT FORK
$17.46¢8 731
1
#006
24311-MKE-A50
DRUM, GEARSHIFT
$135.09¢67 544
1
#007
24312-MKE-A01
CENTER, GEARSHIFT DRUM
$57.75¢28 875
1
#008
24315-HA0-000
PIN, SHIFTER
$14.63¢7 313
1
#009
24321-MKE-A70
SHIFTER, DRUM
$49.91¢24 956
1
#010
24322-MM4-000
COLLAR, SHIFTER
$6.20¢3 100
1
#011
24324-KA3-711
PAWL A, RATCHET
$15.48¢7 738
1
#012
24325-KA3-711
PAWL B, RATCHET
$15.48¢7 738
1
#013
24326-KBH-901
PLUNGER, PAWL
$7.05¢3 525
1
#014
24328-MKE-A70
PLATE, GUIDE
$18.36¢9 181
1
#015
24329-KA3-740
SPRING, PAWL PLUNGER
$3.65¢1 825
1
#016
24430-MKE-A00
STOPPER, GEARSHIFT DRUM
$24.35¢12 175
1
#017
24435-MKE-A00
SPRING, DRUM STOPPER
$5.35¢2 675
1
#018
24610-MKE-A50
SPINDLE, GEARSHIFT
$106.23¢53 113
1
#019
24651-MEB-671
SPRING, GEARSHIFT RETURN
$5.31¢2 656
1
#020
24652-HA0-000
PIN, GEARSHIFT RETURN SPRING
$9.95¢4 975
1
#021
90022-MG8-000
PIVOT, SHIFT DRUM STOPPER ARM
$3.20¢1 600
1
#022
90071-MF5-000
BOLT, FLANGE SOCKET (6X14)
$4.06¢2 031
1
#023
90435-HB3-000
WASHER (6.1MM)
$3.65¢1 825
1
#024
90442-MEN-A30
PLATE, BEARING HOLDER
$4.46¢2 231
1
#025
90451-155-000
WASHER (14MM)
$4.59¢2 294
1
#026
91004-GEM-003
BEARING, RADIAL BALL (6805)
$12.71¢6 356
1
#027
93301-06016-0A
BOLT, HEX. (6X16)
$1.89¢944
1
#028
94510-14000
CIRCLIP, OUTER (14MM)
$1.31¢656
1
#029
96220-40080
ROLLER (4X8)
$0.65¢325
1
