RADIATOR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

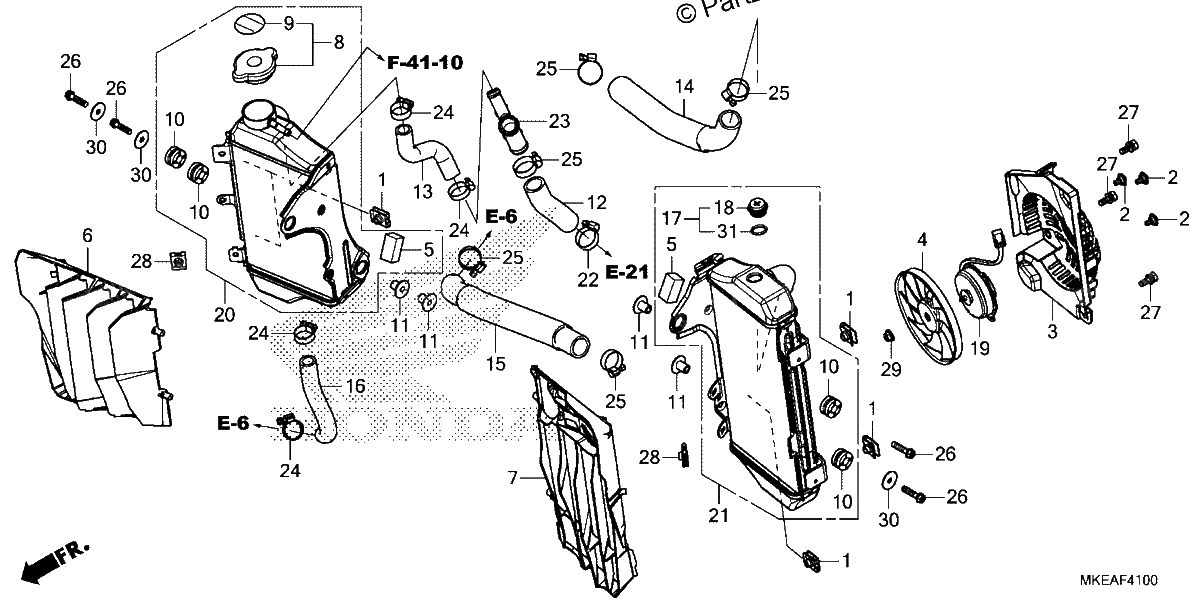

Diagrama de RADIATOR

Repuestos

#001
19014-KEA-003
NUT, SETTING (6MM)
$3.45¢1 725
1
#002
19016-KEA-003
SCREW, PAN (4X8.5)
$1.92¢960
1
#003
19016-MKE-A51
SHROUD, FAN
$67.70¢33 850
1
#004
19020-KVZ-631
FAN, COOLING
$31.31¢15 657
1
#005
19021-MEN-A30
RUBBER, RADIATOR (UPPER)
$2.74¢1 368
1
#006
19033-MKE-A50
GRILLE, R. RADIATOR
$47.38¢23 690
1
#007
19034-MKE-A50
GRILLE, L RADIATOR
$47.38¢23 690
1
#008
19037-GEE-710
CAP, RADIATOR
$32.35¢16 175
1
#009
19046-PAA-A00
LABEL, RADIATOR CAP
$3.36¢1 679
1
#010
19051-KA3-830
RUBBER, RADIATOR MOUNTING
$3.69¢1 846
1
#011
19052-MAC-680
COLLAR, RADIATOR MOUNTING
$5.73¢2 864
1
#012
19061-MKE-A50
HOSE A, WATER
$5.60¢2 800
1
#013
19062-MKE-A50
HOSE B, WATER
$7.13¢3 565
1
#014
19063-MKE-A50
HOSE C, WATER
$34.63¢17 313
1
#015
19064-MKE-A50
HOSE D, WATER
$34.06¢17 031
1
#016
19065-MKE-A50
HOSE E, WATER
$7.13¢3 565
1
#017
19070-MEC-003
PETCOCK ASSY., DRAIN
$11.91¢5 957
1
#018
19071-MEC-003
PETCOCK, DRAIN
$3.99¢1 995
1
#019
19080-MKE-A51
MOTOR Assembly., FAN
$205.08¢102 540
1
#020
19100-MKE-A50
RADIATOR ASSY., R.
$369.12¢184 558
1
#021
19160-MKE-A50
RADIATOR Assembly., Left
$316.11¢158 056
1
#022
19502-MKE-A00
CLAMP, WATER HOSE (D27)
$10.80¢5 399
1
#023
19503-MKE-A50
JOINT, HOSE THREE WAY
$41.95¢20 976
1
#024
19505-MKE-A50
CLAMP, WATER HOSE (D21)
$10.29¢5 146
1
#025
19506-KS6-700
CLAMP B, WATER HOSE
$8.37¢4 186
1
#026
90020-GHB-680
BOLT, FLANGE (6X25)
$2.68¢1 340
1
#027
90120-KCR-003
BOLT-WASHER (6X16)
$4.90¢2 449
1
#028
90201-KPR-901
NUT, CLIP (6MM)
$2.21¢1 104
1
#029
90315-MFL-003
NUT, FLANGE (3MM)
$2.75¢1 374
1
#030
90403-KA3-830
WASHER, RADIATOR MOUNTING
$2.79¢1 397
1
#031
91353-MEC-003
O-RING (9.8X1.9)
$3.82¢1 909
1
