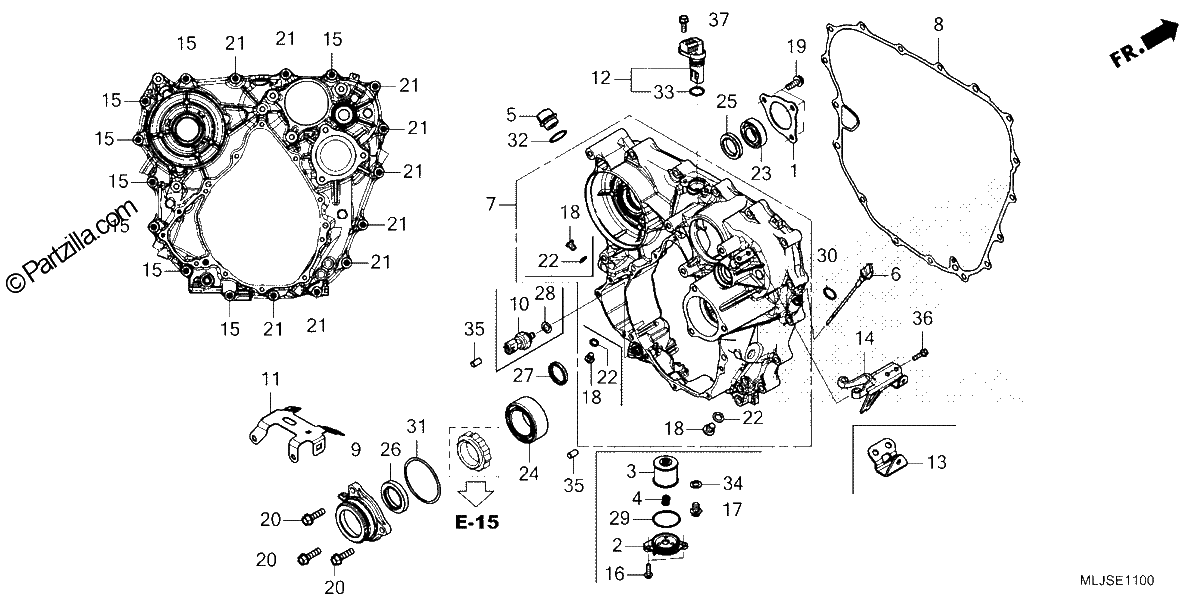

REAR CASE
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
PLATE, ISG BEARING SETTING
$16.36¢8 182
#005
CAP, OIL FILLER
$15.38¢7 688
#006
DIPSTICK, OIL
$20.02¢10 011
#007
CASE Assembly., Rear.
$883.33¢441 663
#008
GASKET, RR. CASE
$48.00¢24 001
#009
HOLDER, FINAL SHAFT BEARING
$78.86¢39 428
#011
STAY, KNOCK CONNECTOR
$20.83¢10 413
#012
SENSOR Assembly., CRANK
$63.85¢31 924
#014
STAY A, R. ENGINE SIDE COVER
$25.62¢12 811
#015
BOLT, FLANGE (8X55)
$1.71¢857
#018
BOLT, SPECIAL (10X12)
$5.28¢2 639
#019
BOLT, KNOCK (6MM)
$2.83¢1 414
#020
BOLT, FLANGE (8X28)
$3.30¢1 650
#021
BOLT, FLANGE (8X45)
$2.83¢1 414
#022
WASHER, SEALING (10.2MM)
$3.36¢1 679
#023
BEARING, RADIAL BALL SPECIAL (6004)
$23.41¢11 707
#024
BEARING, RADIAL BALL (34X62X24)
$35.99¢17 998
#025
OIL SEAL (26X39X6.5)
$5.72¢2 858
#026
OIL SEAL (32X48X8)
$13.72¢6 860
#027
OIL SEAL (27X34X5)
$4.52¢2 260
#030
O-RING (6.3X2.3) (ARAI)
$4.52¢2 260
#031
O-RING (63X3) (ARAI)
$6.35¢3 174
#031
O-RING (62.4X3.1)
$6.35¢3 174
#031
O-RING (62.4X3.1)
$6.35¢3 174
#032
O-RING (18X3)
$3.36¢1 679
#033
O-RING
$3.90¢1 949
#035
PIN, DOWEL (10X16)
$2.69¢1 346
#036
BOLT, FLANGE (6X16)
$1.92¢960
#037
BOLT, FLANGE (6X18)
$1.92¢960
