MUFFLER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

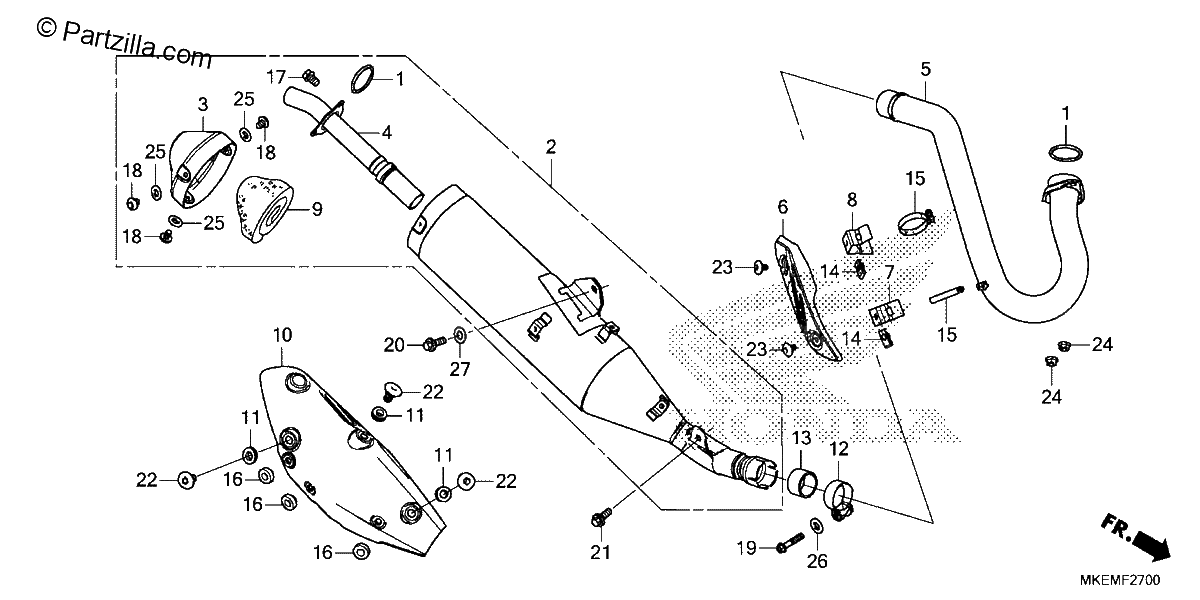

Diagrama de MUFFLER

Repuestos

#001
18291-MEB-670
GASKET, EX. PIPE
$5.49¢2 743
1
#002
18300-MKE-A41
MUFFLER ASSY.
$1709.07¢854 536
1
#003
18306-MKE-A50
CAP, TAIL
$138.66¢69 328
1
#004
18317-MKE-A41
ARRESTER, SPARK
$83.03¢41 515
1
#005
18320-MKE-A40
PIPE, EX.
$261.71¢130 853
1
#006
18323-KRN-A80
PROTECTOR, EX. PIPE
$69.55¢34 776
1
#007
18327-MKE-A40
STAY, EX. PIPE PROTECTOR
$11.80¢5 900
1
#008
18328-MKE-A40
STAY, Rear EX PIPE PROTECTOR
$12.91¢6 457
1
#009
18334-MKE-A40
WOOL, GLASS
$50.42¢25 208
1
#010
18340-MKE-A40
GUARD, HEAT
$60.39¢30 193
1
#011
18345-MBT-610
RUBBER, PROTECTOR MOUNTING
$2.59¢1 294
1
#012
18373-KE8-000
BAND, Right MUFFLER
$30.59¢15 295
1
#012
18374-MG7-701
BAND, L MUFFLER
$30.59¢15 295
1
#013
18392-MK4-000
GASKET, MUFFLER
$14.70¢7 348
1
#014
19508-KA3-710
NUT, SPRING (6MM)
$6.39¢3 197
1
#015
19509-MM5-003
CLAMP, RADIATOR HOSE
$14.60¢7 302
1
#016
83512-KA4-700
RUBBER, SIDE COVER
$5.11¢2 553
1
#017
90101-KCE-000
BOLT, FLANGE (6X10)
$1.92¢960
1
#017
96001-06010-07
BOLT, FLANGE (6X10)
$1.92¢960
1
#018
90101-MKE-A00
BOLT, SPECIAL (5X12)
$2.32¢1 162
1
#019
90108-MKE-A40
BOLT, FLANGE (8X40)
$5.28¢2 639
1
#020
90109-MKE-A50
BOLT, FLANGE (8X25) (SH)
$4.39¢2 197
1
#021
90110-MKE-A50
BOLT, FLANGE (8X20) (SH)
$4.34¢2 168
1
#022
90113-KTA-920
SCREW, PAN (6X12)
$2.60¢1 299
1
#023
90170-MEB-670
BOLT, SPECIAL (6MM)
$2.13¢1 064
1
#024
94050-08000
NUT, FLANGE (8MM)
$1.06¢529
1
#025
94101-05400
WASHER, PLAIN (5MM)
$1.17¢586
1
#026
94102-08400
WASHER, PLAIN (8MM)
$0.91¢454
1
#027
94103-08400
WASHER, PLAIN (8MM)
$1.09¢546
1
