PEDAL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

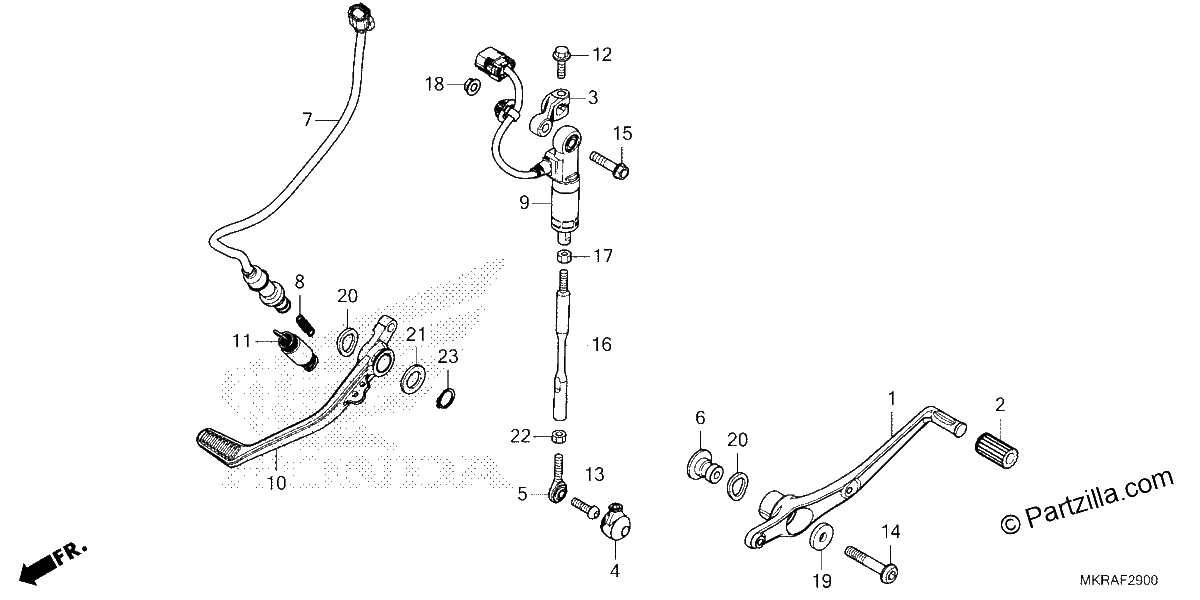

Diagrama de PEDAL

Repuestos

#001
24701-MKR-DH0
PEDAL, GEARSHIFT
$105.29¢52 644
1
#002
24705-MKR-D10
RUBBER, GEARSHIFT PEDAL
$4.30¢2 150
1
#003
24711-MKR-D30
ARM, GEARSHIFT
$43.66¢21 831
1
#004
24722-MKR-D10
COVER, DUST
$9.68¢4 838
1
#005
24723-MKR-D10
TIE ROD (A)
$67.64¢33 819
1
#006
24731-MKR-D10
COLLAR, CHANGE PIVOT
$24.55¢12 275
1
#007
35350-MKR-DH1
SWITCH Assembly., Rear STOP
$36.34¢18 169
1
#008
35357-MBR-000
SPRING, STOP SWITCH
$3.08¢1 538
1
#009
36390-MKR-D31
SENSOR Assembly., STROKE
$1609.75¢804 875
1
#010
46500-MKR-D10
PEDAL, RR. BRAKE
$169.51¢84 756
1
#011
46515-MKR-D10
SPRING Assembly., BRAKE PEDAL
$7.64¢3 819
1
#012
90021-MKF-D40
BOLT, FLANGE (6X20)
$2.81¢1 406
1
#013
90104-MGH-640
BOLT, SOCKET (6X22)
$3.65¢1 825
1
#014
90109-MBT-611
BOLT, SOCKET (8X45)
$4.88¢2 438
1
#015
90115-MKF-D60
BOLT, FLANGE (7X30)
$4.04¢2 019
1
#016
90165-MKR-D30
BAR, CHANGE
$31.50¢15 750
1
#017
90201-700-000
NUT, GOVERNOR ARM FIXING (LEFT HAND THREAD)
$0.99¢494
1
#018
90202-KV3-000
NUT, FLANGE (7MM)
$2.73¢1 363
1
#019
90501-MKR-D10
WASHER, PLAIN (8MM)
$5.14¢2 569
1
#020
90505-MBW-000
WASHER, CHANGE PEDAL WAVE
$4.88¢2 438
1
#021
90557-230-000
WASHER (15.2X25)
$3.08¢1 538
1
#022
94001-06080-0S
NUT, HEX. (6MM)
$1.60¢800
1
#023
94511-15000
CIRCLIP, OUTER (15MM)
$0.88¢438
1
